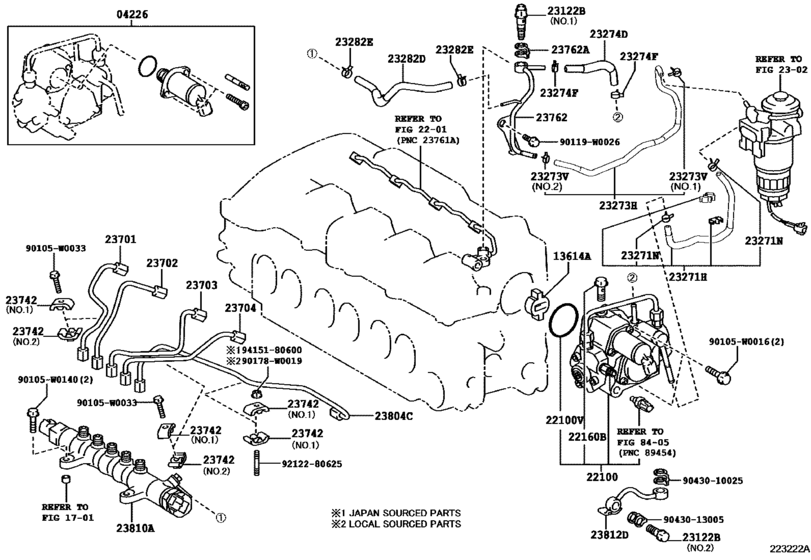

Injection Pump Assembly ([10.2015 - ] (1510- )2ADFTV..DCR) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ALA49
- grade
- G
- ENGINE
- 2ADFTV
- TRANSMISSION
- ATM
- DESTINATION
- SA
- Model
- RAV4
- From
- 10.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04226
|
04226
04226-26010
Valve Kit, Suction Control
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
04226-26010 |
— | ||
|
13614A
|
13614A
13614-26010 Coupling, Supply Pump Drive, No.1SUPPLY PUMP DRIVE, NO.1 [10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
13614-26010 |
US $14.85 |
||
|
22100
|
22100
22100-0R050 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [10.2015 - 02.2016] 2AD#..ALA49 |
22100-0R050 |
US $1,528.80 |
||
| replacement | |||||
|
22100
|
22100
22100-0R051
Pump Assy, Injection Or Supply
[10.2015 - 02.2016] 2AD#..ALA49 |
22100-0R051 |
— | ||
|
22100
|
22100
22100-0R051
Pump Assy, Injection Or Supply
[03.2016 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
22100-0R051 |
— | ||
|
22100V
|
22100V
22193-0R020 Ring, O(For Injection Pump)O(FOR INJECTION PUMP) [10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
22193-0R020 |
US $3.84 |
||
|
22160B
|
22160B
22569-0R020 Screw[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
22569-0R020 |
US $11.79 |
||
|
23122B
|
23122B
23769-26030 Valve, Fuel CheckCHECK [10.2015 -] 2AD#..ALA49 NO.1:REFER ILLUST. |
23769-26030 |
US $51.68 |
||
|
23122B
|
23122B
2376A-26030 Valve, Check[10.2015 -] 2AD#..ALA49 NO.2:REFER ILLUST. |
2376A-26030 |
US $87.32 |
||
|
23271H
|
23271H
23271-26180
Hose, Fuel, No.1
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
23271-26180 |
— | ||
|
23271N
|
23271N
96132-51300 Clip(For Ventilation Hose No.2)[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
96132-51300 |
from US $1.56 |
||
|
23273H
|
23273H
23273-26060
Hose, Fuel, No.2
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
23273-26060 |
— | ||
|
23273V
|
23273V
90467-12056 Clamp Or Clip(For Throttle Body Hose)[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) NO.2:REFER ILLUST. |
90467-12056 |
from US $0.80 |
||
| replacement | |||||
|
23273V
|
23273V
90466-T0048
New Genuine Part
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) NO.2:REFER ILLUST. |
90466-T0048 |
— | ||
|
23273V
|
23273V
96132-51100 Clip (For Hose)[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) NO.1:REFER ILLUST. |
96132-51100 |
from US $1.74 |
||
|
23274D
|
23274D
23274-26080
Hose, Fuel, No.3
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
23274-26080 |
— | ||
|
23274F
|
23274F
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
96135-51100 |
from US $1.93 |
||
|
23282D
|
23282D
23282-26070
Hose, Fuel, No.4
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
23282-26070 |
— | ||
|
23282E
|
23282E
90467-11076 Clamp Or Clip(For Air Hose, No.5)[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
90467-11076 |
US $3.32 |
||
|
23701
|
23701
23701-0R030
Pipe Sub-Assy, Injection, No.1
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
23701-0R030 |
— | ||
|
23702
|
23702
23702-0R030
Pipe Sub-Assy, Injection, No.2
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
23702-0R030 |
— | ||
|
23703
|
23703
23703-0R030
Pipe Sub-Assy, Injection, No.3
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
23703-0R030 |
— | ||
|
23704
|
23704
23704-0R030
Pipe Sub-Assy, Injection, No.4
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
23704-0R030 |
— | ||
|
23742
|
23742
23742-27010 Clamp, Injection Pipe, No.2[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) NO.1:REFER ILLUST. |
23742-27010 |
from US $10.20 |
||
|
23742
|
23742
23742-58020 Clamp, Injection Pipe, No.2[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) NO.2:REFER ILLUST. |
23742-58020 |
from US $13.30 |
||
|
23762
|
23762
23762-26021
Pipe, Nozzle Leakage, No.2
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
23762-26021 |
— | ||
|
23762A
|
23762A
90904-30012 Gasket, Nozzle Leakage Pipe No.2[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
90904-30012 |
from US $5.28 |
||
|
23804C
|
23804C
23804-0R020
Pipe Sub-Assy, Fuel Inlet
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
23804-0R020 |
— | ||
|
23810A
|
23810A
23810-0R041
Rail Assy, Common
[10.2015 -] 2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
23810-0R041 |
— | ||
|
23812D
|
23812D
23812-26020
Pipe, Fuel, No.2
[10.2015 -] 2ADFTV..ALA49..X..DCR;2ADFTV..ALA49..6FC..(G,M) |
23812-26020 |
— | ||
|
90105W0016
|
90105W0016
90105-W0016
New Genuine Part
|
90105-W0016 |
— | ||
|
90105W0033
|
90105W0033
90105-W0033
New Genuine Part
|
90105-W0033 |
— | ||
|
90105W0140
|
90105W0140
90105-W0140 New Genuine Part |
90105-W0140 |
US $1.02 |
||
|
90119W0026
|
90119W0026
90119-W0026
New Genuine Part
|
90119-W0026 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9043010025
|
9043010025
90430-10025 Gasket(For Turbo Oil Inlet Pipe)NOZZLE LEAKAGE PIPE NO.2 |
90430-10025 |
from US $0.88 |
||
|
9043013005
|
9043013005
90430-13005 GASKET |
90430-13005 |
US $1.44 |
||
|
9212280625
|
9212280625
92122-80625 New Genuine Part |
92122-80625 |
US $0.87 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
