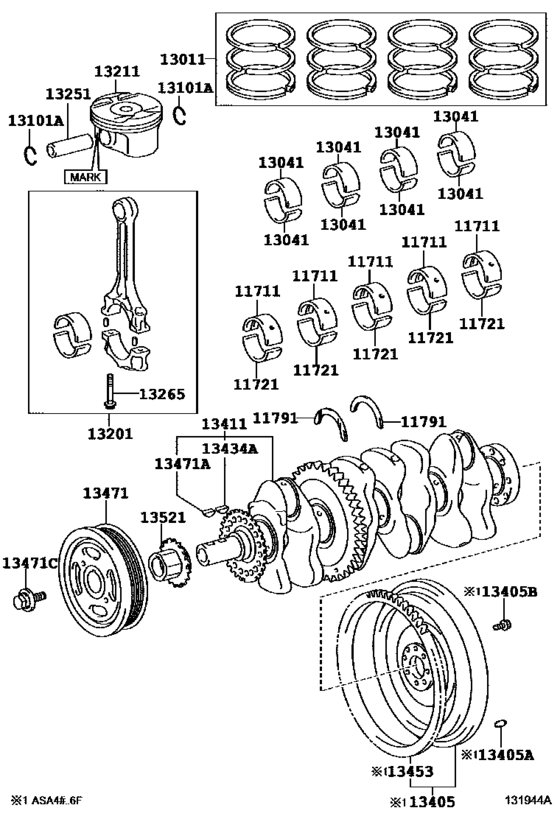

Crankshaft & Piston ([12.2012 - ] (1212- )2ARFE) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ASA42
- grade
- M
- ENGINE
- 2ARFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- Model
- RAV4
- From
- 10.2015
- Gear Shift Type
- 6F
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11711
|
11711
11711-36050-01 Bearing, Crankshaft[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK 1,*419,*463:REFER R/M |
11711-36050-01 |
from US $7.41 |
||
|
11711
|
11711
11711-36050-02 Bearing, Crankshaft[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK 2,*419,*463:REFER R/M |
11711-36050-02 |
from US $7.25 |
||
|
11711
|
11711
11711-36050-03 Bearing, Crankshaft[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK 3,*419,*463:REFER R/M |
11711-36050-03 |
from US $8.03 |
||
|
11711
|
11711
11711-36050-04 Bearing, Crankshaft[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK 4,*419,*463:REFER R/M |
11711-36050-04 |
US $13.10 |
||
|
11721
|
11721
11721-36050-01 Bearing, Crankshaft, No.2[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK 1,*419,*463:REFER R/M |
11721-36050-01 |
from US $8.13 |
||
|
11721
|
11721
11721-36050-02 Bearing, Crankshaft, No.2[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK 2,*419,*463:REFER R/M |
11721-36050-02 |
from US $7.86 |
||
|
11721
|
11721
11721-36050-03 Bearing, Crankshaft, No.2[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK 3,*419,*463:REFER R/M |
11721-36050-03 |
from US $8.72 |
||
|
11721
|
11721
11721-36050-04 Bearing, Crankshaft, No.2[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK 4,*419,*463:REFER R/M |
11721-36050-04 |
from US $7.92 |
||
|
11791
|
11791
11791-36020 Washer, Crankshaft Thrust, Upper[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL STD,*419 OR *463 |
11791-36020 |
from US $17.34 |
||
|
13011
|
13011
13011-36071 Ring Set, Piston (STD)[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL STD,PNC 13211=MARK 36032 |
13011-36071 |
from US $132.11 |
||
|
13011
|
13011
13011-36120 Ring Set, Piston[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL STD,*398 |
13011-36120 |
US $163.07 |
||
|
13041
|
13041
13281-36021-01 Bearing, Connecting Rod[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK 1,*419,*463:REFER R/M |
13281-36021-01 |
from US $6.49 |
||
|
13041
|
13041
13281-36021-02 Bearing, Connecting Rod[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK 2,*419,*463:REFER R/M |
13281-36021-02 |
from US $6.16 |
||
|
13041
|
13041
13281-36021-03 Bearing, Connecting Rod[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK 3,*419,*463:REFER R/M |
13281-36021-03 |
from US $6.38 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL *419 OR *463 |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-39226-A0 Rod Sub-Assy, Connecting[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK A,*419,*463:REFER R/M |
13201-39226-A0 |
from US $122.30 |
||
|
13201
|
13201
13201-39226-B0 Rod Sub-Assy, Connecting[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK B,*419,*463:REFER R/M |
13201-39226-B0 |
US $126.67 |
||
|
13201
|
13201
13201-39226-C0 Rod Sub-Assy, Connecting[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK C,*419,*463:REFER R/M |
13201-39226-C0 |
from US $122.30 |
||
|
13211
|
13211
13211-36032-A0 Piston[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK A,MARK 36032,*RRM |
13211-36032-A0 |
US $46.12 |
||
|
13211
|
13211
13211-36032-B0 Piston[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK B,MARK 36032,*RRM |
13211-36032-B0 |
US $48.59 |
||
|
13211
|
13211
13211-36032-C0
Piston
[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK C,MARK 36032,*RRM |
13211-36032-C0 |
— | ||
|
13211
|
13211
13211-36090-A0
Piston
[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK A,MARK 36090,*RRM |
13211-36090-A0 |
— | ||
|
13211
|
13211
13211-36090-B0 Piston[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK B,MARK 36090,*RRM |
13211-36090-B0 |
US $51.29 |
||
|
13211
|
13211
13211-36090-C0
Piston
[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK C,MARK 36090,*RRM |
13211-36090-C0 |
— | ||
|
13211
|
13211
13211-36120-A0 Piston[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK A,MARK 0V030,*RRM |
13211-36120-A0 |
US $68 |
||
| replacement | |||||
|
13211
|
13211
13211-0V030-A0 Piston[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK A,MARK 0V030,*RRM |
13211-0V030-A0 |
US $61.73 |
||
|
13211
|
13211
13211-36120-B0 Piston[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK B,MARK 0V030,*RRM |
13211-36120-B0 |
US $68 |
||
| replacement | |||||
|
13211
|
13211
13211-0V030-B0 Piston[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK B,MARK 0V030,*RRM |
13211-0V030-B0 |
US $61.73 |
||
|
13211
|
13211
13211-36120-C0 Piston[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK C,MARK 0V030,*RRM |
13211-36120-C0 |
US $68 |
||
|
13251
|
13251
13251-28020-A0 Pin, Piston[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK A,*419,*463:REFER R/M |
13251-28020-A0 |
from US $10.78 |
||
|
13251
|
13251
13251-28020-B0 Pin, Piston[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK B,*419,*463:REFER R/M |
13251-28020-B0 |
from US $10.61 |
||
|
13251
|
13251
13251-28020-C0 Pin, Piston[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL MARK C,*419,*463:REFER R/M |
13251-28020-C0 |
from US $10.74 |
||
|
13265
|
13265
13265-31020 Bolt, Connecting Rod[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL *419 OR *463 |
13265-31020 |
from US $3.30 |
||
|
13405
|
13405
13405-28020 Flywheel Sub-Assy[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..6F..G..ARL *419 OR *463 |
13405-28020 |
from US $300.52 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..6F..G..ARL L=23,OD=8,*419 OR *463 |
90250-08054 |
from US $1.92 |
||
|
13405B
|
13405B
90105-12322 Bolt, Flywheel Setting[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..6F..G..ARL *419 OR *463 |
90105-12322 |
from US $1.48 |
||
|
13411
|
13411
13401-36011 Crankshaft[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL *419 OR *463 |
13401-36011 |
US $991.54 |
||
|
13434A
|
13434A
95161-30516 Key(For Oil Pump Drive Spline)[10.2015 - 07.2017] 2ADFTV..ALA49..6F..(G,M); 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL *419 OR *463 |
95161-30516 |
from US $1.17 |
||
|
13453
|
13453
13453-74011 Gear, Flywheel Ring[10.2015 -] 2ARFE..ASA4#..6F |
13453-74011 |
from US $62.90 |
||
|
13471
|
13471
13470-36010 Pulley, CrankshaftCRANKSHAFT [10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL *419 OR *463 |
13470-36010 |
from US $139.78 |
||
|
13471A
|
13471A
95161-30516 Key(For Oil Pump Drive Spline)[10.2015 - 07.2017] 2ADFTV..ALA49..6F..(G,M); 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL *419 OR *463 |
95161-30516 |
from US $1.17 |
||
|
13471C
|
13471C
90119-16020 Bolt(For Crankshaft Pulley Set)[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL *419 OR *463 |
90119-16020 |
from US $5.44 |
||
|
13521
|
13521
13521-36010 Gear Or Sprocket, Crankshaft Timing[10.2015 - 07.2017] 2ARFE..ASA4#..6F..M;2ARFE..ASA44..M..SA;2ARFE..ASA44..6F..G..ARL *419 OR *463 |
13521-36010 |
from US $11.86 |
||
