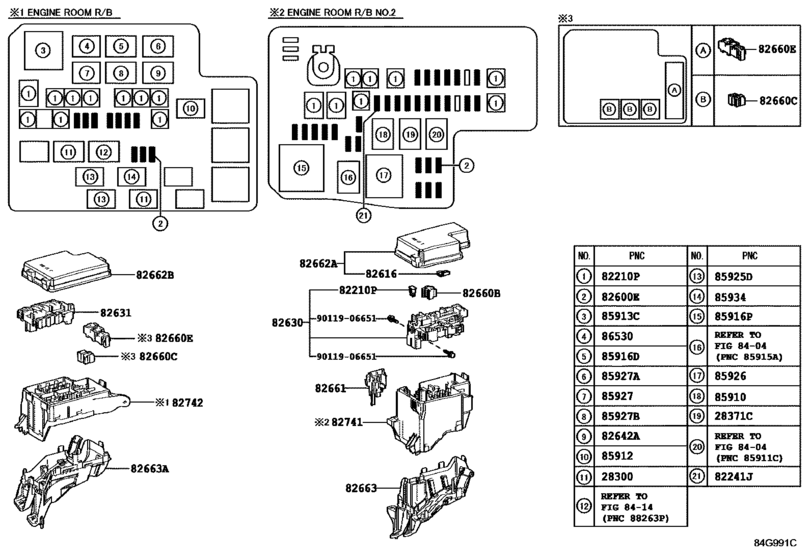

Switch & Relay & Computer ([10.2015 - ] ENGINE ROOM RELAY BLOCK(1/2) (1510- )ASA4# ; (1510- )AVA44..SE) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- ASA42
- grade
- LE
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- RAV4 (JPP)
- From
- 12.2012
- Gear Shift Type
- 6FC
- Vehicle Model
- RAV4
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[07.2014 - 10.2015] 2ARFE..ASA4# |
28300-21020 |
from US $40.58 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[12.2012 - 07.2014] 2ARFE..ASA4# |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[12.2012 - 07.2014] 2ARFE..ASA4# |
28300-21020 |
from US $40.58 |
||
|
28371C
|
28371C
90987-02027 Relay[12.2012 - 10.2015] 2ARFE..ASA4# |
90987-02027 |
from US $31.43 |
||
|
82210P
|
82210P
90982-08274 Fusible Link[12.2012 - 10.2015] ASA4# 120A,TERMINAL:MALE |
90982-08274 |
from US $7.68 |
||
|
82210P
|
82210P
90982-08286 Fusible Link[10.2015 -] ASA4# 140A,TERMINAL:MALE |
90982-08286 |
from US $7.68 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[10.2015 -] ASA4# 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[12.2012 - 10.2015] ASA4# 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[12.2012 - 10.2015] ASA4# 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[12.2012 - 10.2015] ASA4# 80A,TERMINAL:FEMALE |
90982-08305 |
US $6.24 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[10.2015 -] ASA4#,AVA44 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[12.2012 - 10.2015] ASA4# 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[12.2012 - 10.2015] ASA4# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[12.2012 - 10.2015] ASA4# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[12.2012 - 10.2015] ASA4# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[10.2015 -] ASA4# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[12.2012 - 10.2015] ASA4# 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[12.2012 - 10.2015] ASA4# |
82616-58010 |
from US $2.40 |
||
|
82630
|
82630
82630-42020 Holder Assy, Fuse[10.2015 -] ASA4# |
82630-42020 |
US $50.67 |
||
|
82630
|
82630
82630-42030
Holder Assy, Fuse
[12.2012 - 10.2015] ASA4# |
82630-42030 |
— | ||
|
82631
|
82631
82631-42060 Holder, Fuse[10.2015 -] ASA4# |
82631-42060 |
from US $38.88 |
||
|
82642A
|
82642A
82642-52030
Relay, Running Light
[10.2015 -] ASA4#,AVA44..LE,LIMD,XLE |
82642-52030 |
— | ||
|
82642A
|
82642A
82642-60020 Relay, Running LightRUNNING LIGHT [12.2012 - 10.2015] ASA4# |
82642-60020 |
US $155.79 |
||
|
82660B
|
82660B
82660-52130
Block Assy, Relay
[10.2015 -] ASA4#,AVA44..LE,LIMD,XLE |
82660-52130 |
— | ||
|
82660B
|
82660B
82660-60170
Block Assy, Relay, Engine Room
[12.2012 - 10.2015] ASA4# |
82660-60170 |
— | ||
|
82660C
|
82660C
82660-42060
Block Assy, Relay
[12.2012 - 10.2015] ASA4# |
82660-42060 |
— | ||
|
82660C
|
82660C
82660-52010 Block Assy, Relay[10.2015 -] ASA4# |
82660-52010 |
US $7.13 |
||
|
82661
|
82661
82661-42040 Cover, Relay Block, No.1[12.2012 - 10.2015] ASA4# |
82661-42040 |
US $7.13 |
||
|
82662A
|
82662A
82662-42340
Cover, Relay Block, Upper, No.1
[12.2012 - 10.2015] ASA4# |
82662-42340 |
— | ||
|
82662A
|
82662A
82662-42410 Cover, Relay Block, Upper, No.1[10.2015 -] ASA4# |
82662-42410 |
US $39.33 |
||
|
82662B
|
82662B
82662-42370
Cover, Relay Block, Upper, No.2
[12.2012 - 10.2015] ASA4# |
82662-42370 |
— | ||
|
82662B
|
82662B
82662-42620
Cover, Relay Block, Upper, No.2
[10.2015 - 10.2015] ASA4#..LE,LIMD,XLE |
82662-42620 |
— | ||
|
82662B
|
82662B
82662-42621 Cover, Relay Block, Upper, No.2[08.2016 -] ASA4# |
82662-42621 |
US $33.05 |
||
|
82663
|
82663
82663-42100 Cover, Relay Block, Lower[12.2012 - 10.2015] ASA4# |
82663-42100 |
from US $36.52 |
||
|
82663A
|
82663A
82663-42110 Cover, Relay Block, Lower, No.2[10.2015 -] ASA4#,AVA44 |
82663-42110 |
from US $32.32 |
||
|
82663A
|
82663A
82663-42120
Cover, Relay Block, Lower, No.2
[12.2012 - 10.2015] ASA4# |
82663-42120 |
— | ||
|
82741
|
82741
82741-42020 Block, Engine Room Relay[12.2012 - 10.2015] ASA4# |
82741-42020 |
from US $56.93 |
||
|
82742
|
82742
82741-42031 Block, Engine Room Relay, No.2[10.2015 -] ASA4# |
82741-42031 |
US $61.87 |
||
|
82742
|
82742
82741-42040 Block, Engine Room Relay, No.2[12.2012 - 10.2015] ASA4# |
82741-42040 |
US $42.72 |
||
|
85912
|
85912
90987-02027 Relay[12.2012 - 10.2015] ASA4#..LE |
90987-02027 |
from US $31.43 |
||
|
85913C
|
85913C
90987-04010 Relay Assy (For Heater Blower Motor)[12.2012 - 10.2015] ASA4#..LE |
90987-04010 |
from US $42.71 |
||
|
85916P
|
85916P
90987-02025 Relay[12.2012 - 10.2015] ASA4# |
90987-02025 |
from US $44.54 |
||
|
85925D
|
85925D
90987-02027 Relay[12.2012 - 10.2015] ASA4# |
90987-02027 |
from US $31.43 |
||
|
85926
|
85926
90987-02025 Relay[10.2015 -] ASA4#,AVA44 |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02027 Relay[12.2012 - 10.2015] ASA4# |
90987-02027 |
from US $31.43 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[12.2012 - 10.2015] ASA4# |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02027 Relay[12.2012 - 10.2015] ASA4# |
90987-02027 |
from US $31.43 |
||
|
85934
|
85934
90987-02027 Relay[12.2012 - 10.2015] ASA42 |
90987-02027 |
from US $31.43 |
||
|
86530
|
86530
90987-02027 Relay[12.2012 - 10.2015] ASA4# |
90987-02027 |
from US $31.43 |
||
|
9011906651
|
9011906651
90119-06651 BOLT WWASHER |
90119-06651 |
from US $0.72 |
||
