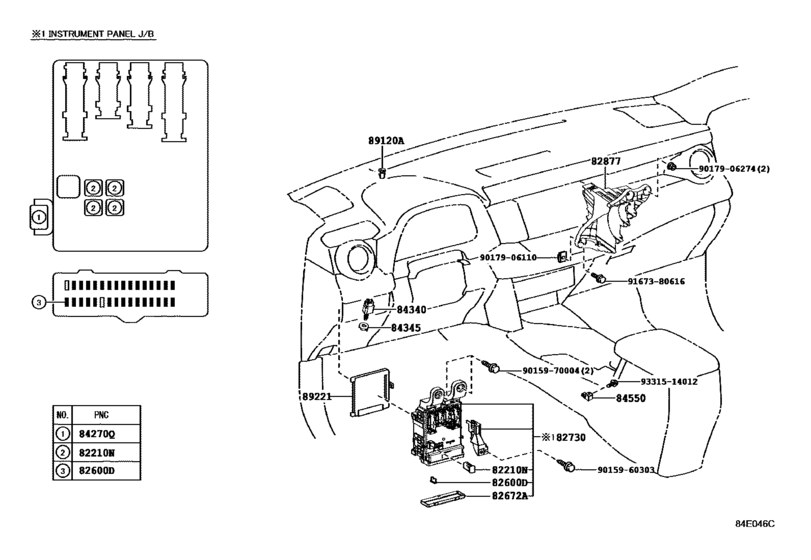

Switch & Relay & Computer ([12.2012 - 10.2015] COWL (1212-1510)) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- ASA42
- grade
- LE
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- RAV4 (JPP)
- From
- 12.2012
- Gear Shift Type
- 6FC
- Vehicle Model
- RAV4
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210N
|
82210N
90982-08306 Fusible Link[12.2012 - 10.2015] ASA4# 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[12.2012 - 10.2015] ASA4# 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[12.2012 - 10.2015] ASA4# 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[12.2012 - 10.2015] ASA4# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[12.2012 - 10.2015] ASA4# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[12.2012 - 10.2015] ASA4# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[12.2012 - 10.2015] ASA4# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82672A
|
82672A
82672-42150
Cover, Junction Block
[12.2012 - 10.2015] ASA4# |
82672-42150 |
— | ||
|
82672A
|
82672A
82672-42180
Cover, Junction Block
[10.2015 -] ASA4#,AVA44 |
82672-42180 |
— | ||
|
82730
|
82730
82730-42720 Block Assy, Instrument Panel Junction[12.2012 - 10.2015] ASA4#..LE |
82730-42720 |
US $195.10 |
||
|
82730
|
82730
82730-42790
Block Assy, Instrument Panel Junction
[10.2015 - 02.2016] ASA4#..LE |
82730-42790 |
— | ||
| replacement | |||||
|
82730
|
82730
82730-42791
Block Assy, Instrument Panel Junction
[10.2015 - 02.2016] ASA4#..LE |
82730-42791 |
— | ||
|
82730
|
82730
82730-42791
Block Assy, Instrument Panel Junction
[03.2016 -] ASA4#..LE |
82730-42791 |
— | ||
|
82877
|
82877
82877-42010
Box, Computer Integration, Rh
[12.2012 - 10.2015] ASA4#..LIMD WIRELESS DOOR LOCK-SMART ENTRY+PANIC BUTTON+POWER BACK DOOR; ASA4#..LIMD WIRELESS DOOR LOCK-SMART ENTRY+PANIC BUTTON+POWER BACK DOOR&CLEARANCE & BACK SONAR -WITH(REAR); ASA4# CLEARANCE & BACK SONAR-WITH(REAR) |
82877-42010 |
— | ||
|
82877
|
82877
82877-42030
Box, Computer Integration, Rh
[10.2015 -] ASA4#,AVA44 |
82877-42030 |
— | ||
|
84270Q
|
84270Q
90987-02027 Relay[12.2012 - 10.2015] ASA4# |
90987-02027 |
from US $31.43 |
||
|
84340
|
84340
84340-19025
Switch Assy, Stop Lamp
[12.2012 - 10.2015] ASA4# |
84340-19025 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-19026 SWITCH ASSY, STOP[12.2012 - 10.2015] ASA4# |
84340-19026 |
from US $21.28 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[12.2012 - 10.2015] ASA4# |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[12.2012 - 10.2015] ASA4# |
84550-33010 |
from US $18.39 |
||
|
89120A
|
89120A
89121-50020 Sensor, Automatic Light Control[10.2015 - 08.2016] ASA4#..LE PRE-COLLISION SYSTEM-WITH |
89121-50020 |
from US $108.04 |
||
|
89221
|
89221
89220-42010
Computer, Multiplex Network Body
[12.2012 - 01.2013] ASA4#..LE P/N LABEL=8922042010 |
89220-42010 |
— | ||
| replacement | |||||
|
89221
|
89221
89220-42011
Computer, Multiplex Network Body
[12.2012 - 01.2013] ASA4#..LE P/N LABEL=8922042010 |
89220-42011 |
— | ||
|
89221
|
89221
89220-42011
Computer, Multiplex Network Body
[01.2013 - 11.2013] ASA4#..LE P/N LABEL=8922042011 |
89220-42011 |
— | ||
|
89221
|
89221
89220-42012
Computer, Multiplex Network Body
[11.2013 - 10.2015] ASA4#..LE P/N LABEL=8922042012 |
89220-42012 |
— | ||
|
89221
|
89221
89220-42290
Computer, Multiplex Network Body
[12.2012 - 01.2013] ASA4#..LE GUAM,SAIPAN,A.SAMOA,HAWAII SPEC,P/N LABEL=8922042290 |
89220-42290 |
— | ||
| replacement | |||||
|
89221
|
89221
89220-42291
Computer, Multiplex Network Body
[12.2012 - 01.2013] ASA4#..LE GUAM,SAIPAN,A.SAMOA,HAWAII SPEC,P/N LABEL=8922042290 |
89220-42291 |
— | ||
|
89221
|
89221
89220-42291
Computer, Multiplex Network Body
[01.2013 - 11.2013] ASA4#..LE GUAM,SAIPAN,A.SAMOA,HAWAII SPEC,P/N LABEL=8922042291 |
89220-42291 |
— | ||
|
89221
|
89221
89220-42292
Computer, Multiplex Network Body
[11.2013 - 10.2015] ASA4#..LE GUAM,SAIPAN,A.SAMOA,HAWAII SPEC,P/N LABEL=8922042292 |
89220-42292 |
— | ||
|
89221
|
89221
89220-42G90
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#..LE; ASA4#..LE GUAM,SAIPAN,AMERICAN SAMOA SPEC |
89220-42G90 |
— | ||
|
89221
|
89221
89220-42U30
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#..LE PRE-COLLISION SYSTEM-WITH |
89220-42U30 |
— | ||
|
89221
|
89221
89220-42U80
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#..LE HAWAII SPEC |
89220-42U80 |
— | ||
|
89221
|
89221
89220-42U90
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#..LE HAWAII SPEC&PRE-COLLISION SYSTEM-WITH |
89220-42U90 |
— | ||
|
89221
|
89221
89220-42V40
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#..LE GUAM,SAIPAN,AMERICAN SAMOA SPEC |
89220-42V40 |
— | ||
|
89221
|
89221
89220-4A540
Computer, Multiplex Network Body
[08.2016 -] ASA4#..LE PRE-COLLISION SYSTEM-WITHOUT |
89220-4A540 |
— | ||
|
89221
|
89221
89220-4A550
Computer, Multiplex Network Body
[08.2016 -] ASA4#..LE; ASA4#..LE GUAM,SAIPAN,AMERICAN SAMOA SPEC |
89220-4A550 |
— | ||
|
89221
|
89221
89220-4A600
Computer, Multiplex Network Body
[08.2016 -] ASA4#..LE HAWAII SPEC&PRE-COLLISION SYSTEM-WITHOUT |
89220-4A600 |
— | ||
|
89221
|
89221
89220-4A610
Computer, Multiplex Network Body
[08.2016 -] ASA4#..LE HAWAII SPEC |
89220-4A610 |
— | ||
|
89221
|
89221
89220-4A660
Computer, Multiplex Network Body
[08.2016 -] ASA4#..LE GUAM,SAIPAN,AMERICAN SAMOA SPEC&PRE-COLLISION SYSTEM-WITHOUT |
89220-4A660 |
— | ||
|
89221
|
89221
89220-4AJ50
Computer, Multiplex Network Body
[08.2016 -] ASA4#..LE GUAM,SAIPAN,AMERICAN SAMOA SPEC |
89220-4AJ50 |
— | ||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.44 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
