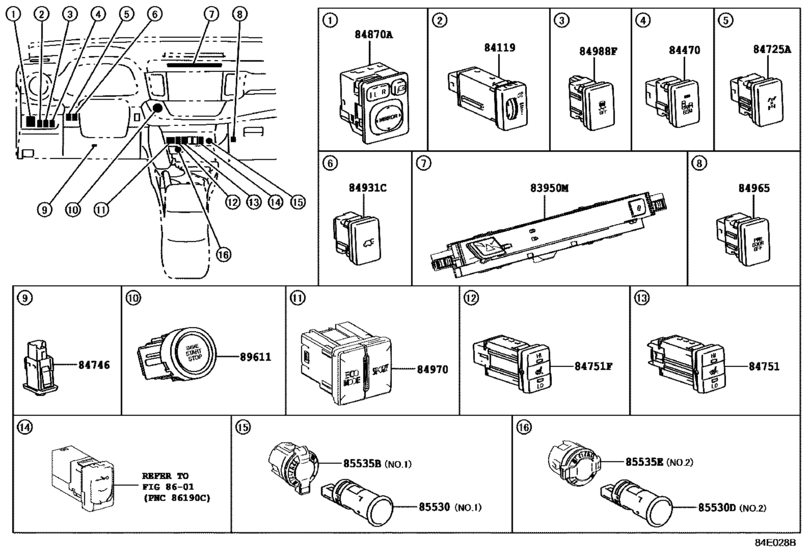

Switch & Relay & Computer ([12.2012 - 10.2015] INSTRUMENT PANEL (1212-1510)) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- ASA42
- grade
- LE
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- RAV4 (JPP)
- From
- 12.2012
- Gear Shift Type
- 6FC
- Vehicle Model
- RAV4
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83950M
|
83950M
83950-42020
Lamp Assy, Telltale
[12.2012 - 10.2015] ASA4# CLEARANCE & BACK SONAR-WITH(REAR) |
83950-42020 |
— | ||
|
83950M
|
83950M
83950-42040
Lamp Assy, Telltale
[12.2012 - 10.2015] ASA4# |
83950-42040 |
— | ||
|
83950M
|
83950M
83950-42190
Lamp Assy, Telltale
[10.2015 - 08.2016] ASA4#,AVA44 |
83950-42190 |
— | ||
|
83950M
|
83950M
83950-42210
Lamp Assy, Telltale
[10.2015 - 08.2016] ASA4#..LE CLEARANCE & BACK SONAR-WITH(REAR) |
83950-42210 |
— | ||
|
83950M
|
83950M
83950-42360
Lamp Assy, Telltale
[08.2016 -] ASA4#,AVA44 |
83950-42360 |
— | ||
|
83950M
|
83950M
83950-42380
Lamp Assy, Telltale
[08.2016 - 08.2017] ASA4#..LE CLEARANCE & BACK SONAR-WITH(REAR) |
83950-42380 |
— | ||
|
84119
|
84119
84119-42021 Rheostat, Light Control[10.2015 -] ASA4#,AVA44; ASA4#,AVA44..LIMD..USA KOREA SPEC |
84119-42021 |
US $50.96 |
||
|
84119
|
84119
84119-47030
Rheostat, Light Control
[12.2012 - 01.2015] ASA4# |
84119-47030 |
— | ||
| replacement | |||||
|
84119
|
84119
84119-47031
Rheostat, Light Control
[12.2012 - 01.2015] ASA4# |
84119-47031 |
— | ||
|
84119
|
84119
84119-47031
Rheostat, Light Control
[02.2015 - 10.2015] ASA4# |
84119-47031 |
— | ||
|
84746
|
84746
84746-50010 Switch, Tire Pressure Warning[12.2012 - 10.2015] ASA4# |
84746-50010 |
US $32.85 |
||
|
84870A
|
84870A
84870-74010 Switch Assy, Outer Mirror[12.2012 - 10.2015] ASA4# |
84870-74010 |
US $108.46 |
||
|
84970
|
84970
84970-42010 Switch Assy, Combination[12.2012 - 10.2015] ASA4# |
84970-42010 |
US $63.63 |
||
|
84988F
|
84988F
84988-42080 Switch, Traction Control[12.2012 - 11.2014] ASA4# |
84988-42080 |
US $39.60 |
||
| replacement | |||||
|
84988F
|
84988F
84988-42081 Switch, Vehicle Stability Control[12.2012 - 11.2014] ASA4# |
84988-42081 |
US $35.96 |
||
|
84988F
|
84988F
84988-42081 Switch, Vehicle Stability Control[12.2014 - 10.2015] ASA4# |
84988-42081 |
US $35.96 |
||
|
85530
|
85530
85530-42010 Socket Assy, Power Outlet, No.1[12.2012 - 10.2015] ASA4# |
85530-42010 |
from US $26.60 |
||
|
85530D
|
85530D
85530-42010 Socket Assy, Power Outlet, No.1[12.2012 - 10.2015] ASA4# |
85530-42010 |
from US $26.60 |
||
|
85535B
|
85535B
85535-42060 Cover, Power Outlet Socket, No.1[12.2012 - 10.2015] ASA4# |
85535-42060 |
from US $5.39 |
||
|
85535E
|
85535E
85535-42060 Cover, Power Outlet Socket, No.1[12.2012 - 10.2015] ASA4# |
85535-42060 |
from US $5.39 |
||
