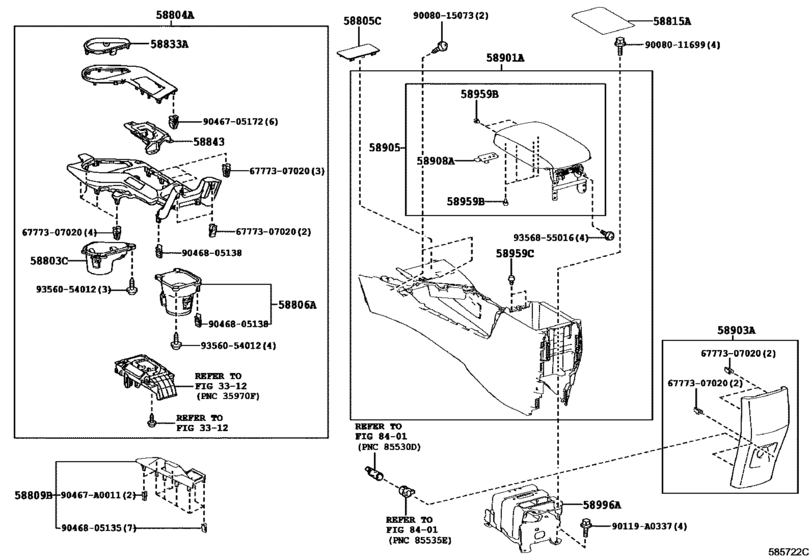

Console Box & Bracket ([11.2015 - ] (1511- )LIMD,SE) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- ASA42
- grade
- SE
- body
- WG
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- RAV4 (NAP)
- From
- 11.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58803C
|
58803C
58803-0R010-C0
Box Sub-Assy, Console Cup Holder
[11.2015 -] ASA4#..LE BLACK,TRIM2#; ASA4#..XLE..CND BLACK,TRIM1#,2#,4#; ASA44..LIMD,SE;ASA44..XLE..USA;ASA42..(LIMD,SE,XLE)..USA BLACK,TRIM1#,2#,3#,4#; ASA4#..XLE..USA MEXICO SPEC,BLACK,TRIM1#,2#,4# |
58803-0R010-C0 |
— | ||
|
58804A
|
58804A
58804-0R130-B1
Panel Sub-Assy, Console, Upper
[11.2015 -] ASA44..SE;ASA42..SE..USA SMOKE SILVER METALLIC,TRIM2#,3# |
58804-0R130-B1 |
— | ||
|
58805C
|
58805C
58805-0R040-C0
Panel Sub-Assy, Console, Upper Rear
[11.2015 -] ASA4#..LE BLACK,TRIM2#; ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA BLACK,TRIM1#,2#,3#,4# |
58805-0R040-C0 |
— | ||
|
58806A
|
58806A
58806-0R010-C0
Pocket Sub-Assy, Console Box
[11.2015 -] ASA4#..LE BLACK,TRIM2#; ASA4#..XLE..CND BLACK,TRIM1#,2#,4#; ASA44..LIMD,SE;ASA44..XLE..USA;ASA42..(LIMD,SE,XLE)..USA BLACK,TRIM1#,2#,3#,4#; ASA4#..XLE..USA MEXICO SPEC,BLACK,TRIM1#,2#,4# |
58806-0R010-C0 |
— | ||
|
58809B
|
58809B
58809-0R011-C1
Cover Sub-Assy, Parking Brake Hole
[11.2015 -] ASA4#..LE BLACK,TRIM2#; ASA4#..XLE..CND BLACK,TRIM1#,2#,4#; ASA44..SE;ASA42..SE..USA BLACK,TRIM2#,3#; ASA44..LIMD;ASA44..XLE..USA;ASA42..(LIMD,XLE)..USA BLACK,TRIM1#,2#,3#,4# |
58809-0R011-C1 |
— | ||
|
58815A
|
58815A
58815-0R030
Carpet, Console Box
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
58815-0R030 |
— | ||
|
58833A
|
58833A
58833-0R080-B2
Cover, Console, Upper
[11.2015 -] ASA44..SE;ASA42..SE..USA SMOKE SILVER METALLIC,TRIM2#,3# |
58833-0R080-B2 |
— | ||
|
58843
|
58843
58843-0R060-B2
Bezel, Shifting Hole
[11.2015 -] ASA44..SE;ASA42..SE..USA SMOKE SILVER METALLIC,TRIM2#,3# |
58843-0R060-B2 |
— | ||
|
58901A
|
58901A
58901-0R100-C0
Box Sub-Assy, Console, Rear
[11.2015 -] ASA44..LIMD,SE;ASA42..(LIMD,SE)..USA BLACK,TRIM1#,2#,3#,4# |
58901-0R100-C0 |
— | ||
|
58903A
|
58903A
58903-0R050-C0
Panel Sub-Assy, Console Rear End
[11.2015 -] ASA44..LIMD,SE;ASA42..(LIMD,SE)..USA BLACK,TRIM1#,2#,3#,4# |
58903-0R050-C0 |
— | ||
|
58905
|
58905
58905-0R100-C0
Door Sub-Assy, Console Compartment
[11.2015 -] ASA44..LIMD,SE;ASA42..(LIMD,SE)..USA BLACK,TRIM1#,2#,3#,4# |
58905-0R100-C0 |
— | ||
|
58908A
|
58908A
58908-0R040
Lock Sub-Assy, Console Compartment Door
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
58908-0R040 |
— | ||
|
58959B
|
58959B
58959-35010 Cushion, Console Compartment Door[11.2015 -] ASA44..LIMD,SE;ASA42..(LIMD,SE)..USA |
58959-35010 |
US $1.31 |
||
|
58959C
|
58959C
58959-35010 Cushion, Console Compartment Door[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
58959-35010 |
US $1.31 |
||
|
58996A
|
58996A
58996-0R050
Bracket, Console Box Mounting, No.2
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
58996-0R050 |
— | ||
|
90119A0337
|
90119A0337
90119-A0337
New Genuine Part
|
90119-A0337 |
— | ||
|
90467A0011
|
90467A0011
90467-A0011
Clip, Instrument Panel, No.1
|
90467-A0011 |
— | ||
|
6777307020
|
6777307020
67773-07020
Clip(For Panel, Instrument Cluster Finish)
|
67773-07020 |
— | ||
|
9008011699
|
9008011699
90080-11699
Bolt, W/washer
|
90080-11699 |
— | ||
|
9008015073
|
9008015073
90080-15073
SCREW WWASHER TAPP
|
90080-15073 |
— | ||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $0.96 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.96 |
||
|
9046805138
|
9046805138
90468-05138 Clip, Instrument Panel |
90468-05138 |
from US $1.07 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
