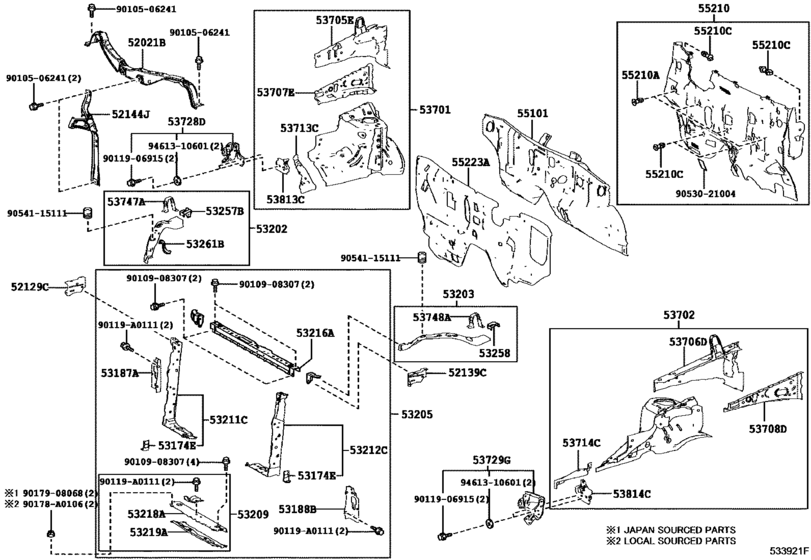

Front Fender Apron & Dash Panel ([01.2013 - ] (1301- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- ASA42
- grade
- SE
- body
- WG
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- RAV4 (NAP)
- From
- 11.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021B
|
52021B
52029-0R050
Reinforcement Sub-Assy, Front Bumper
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
52029-0R050 |
— | ||
|
52129C
|
52129C
52129-0R030
Arm, Front Bumper, Upper No.2 Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
52129-0R030 |
— | ||
|
52139C
|
52139C
52139-0R030
Arm, Front Bumper, Upper No.2 Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
52139-0R030 |
— | ||
|
52144J
|
52144J
52085-0R050
Stay, Front Bumper, Center
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
52085-0R050 |
— | ||
|
53174E
|
53174E
53164-0R010
Bracket, Radiator Support Side
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53164-0R010 |
— | ||
|
53187A
|
53187A
53187-0R010
Stay, Radiator Support, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53187-0R010 |
— | ||
|
53188B
|
53188B
53188-0R030
Stay, Radiator Support, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53188-0R030 |
— | ||
|
53202
|
53202
53202-0R030
Support Sub-Assy, Radiator, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53202-0R030 |
— | ||
|
53203
|
53203
53203-0R030
Support Sub-Assy, Radiator, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53203-0R030 |
— | ||
|
53205
|
53205
53205-0R050
Support Sub-Assy, Radiator, Upper
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53205-0R050 |
— | ||
|
53209
|
53209
53209-0R020
Brace Sub-Assy, Hood Lock
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53209-0R020 |
— | ||
|
53211C
|
53211C
53211-0R905
Support, Radiator, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53211-0R905 |
— | ||
|
53212C
|
53212C
53212-0R905
Support, Radiator, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53212-0R905 |
— | ||
|
53216A
|
53216A
53216-0R903
Support, Radiator, Upper
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53216-0R903 |
— | ||
|
53218A
|
53218A
53218-0R040
Support, Radiator, Lower
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53218-0R040 |
— | ||
|
53219A
|
53219A
53219-0R020
Support, Radiator, Lower Rear
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53219-0R020 |
— | ||
|
53257B
|
53257B
53257-0R010
Bracket, Radiator Support To Front Fender
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53257-0R010 |
— | ||
|
53258
|
53258
53258-0R010
Bracket, Front End Panel Mounting, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53258-0R010 |
— | ||
|
53261B
|
53261B
53261-0R020
Bracket, Radiator Reserve Tank Mounting
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53261-0R020 |
— | ||
|
53701
|
53701
53701-0R030
Apron Sub-Assy, Front Fender, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53701-0R030 |
— | ||
|
53702
|
53702
53702-0R030
Apron Sub-Assy, Front Fender, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53702-0R030 |
— | ||
|
53705E
|
53705E
53705-0R030
Member Sub-Assy, Front Apron To Cowl Side, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53705-0R030 |
— | ||
|
53706D
|
53706D
53706-0R030
Member Sub-Assy, Front Apron To Cowl Side, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53706-0R030 |
— | ||
|
53707E
|
53707E
53707-0R010
Apron Sub-Assy, Fender Side, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53707-0R010 |
— | ||
|
53708D
|
53708D
53708-0R010
Apron Sub-Assy, Fender Side, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53708-0R010 |
— | ||
|
53713C
|
53713C
53713-0R010
Extension, Front Fender Apron, Front Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53713-0R010 |
— | ||
|
53714C
|
53714C
53714-0R011
Extension, Front Fender Apron, Front Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53714-0R011 |
— | ||
|
53728D
|
53728D
53803-42020 Bracket, Fender Apron, Rh[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53803-42020 |
US $32.25 |
||
|
53729G
|
53729G
53804-42010 Bracket, Fender Apron, Lh[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53804-42010 |
US $35.76 |
||
|
53747A
|
53747A
53747-0R030
Extension, Apron Fender Side, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53747-0R030 |
— | ||
|
53748A
|
53748A
53748-0R030
Extension, Apron Fender Side, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53748-0R030 |
— | ||
|
53813C
|
53813C
53813-0R030
Extension, Front Fender, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53813-0R030 |
— | ||
|
53814C
|
53814C
53814-0R030
Extension, Front Fender, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
53814-0R030 |
— | ||
|
55101
|
55101
55101-0R040
Panel Sub-Assy, Dash
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
55101-0R040 |
— | ||
|
55210
|
55210
55210-0R050
Insulator Assy, Dash Panel
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
55210-0R050 |
— | ||
|
55210A
|
55210A
90467-11122 Clip[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90467-11122 |
US $1.60 |
||
|
55210C
|
55210C
90467-13079 Clip[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90467-13079 |
US $1.92 |
||
|
55223A
|
55223A
55223-0R011
Insulator, Dash Panel, Outer
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
55223-0R011 |
— | ||
|
90119A0111
|
90119A0111
90119-A0111
New Genuine Part
|
90119-A0111 |
— | ||
|
90178A0106
|
90178A0106
90178-A0106
New Genuine Part
|
90178-A0106 |
— | ||
|
9010506241
|
9010506241
90105-06241 BOLT WASHER BASED |
90105-06241 |
US $1.75 |
||
|
9010908307
|
9010908307
90109-08307 New Genuine Part |
90109-08307 |
US $1.28 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9053021004
|
9053021004
90530-21004 New Genuine Part |
90530-21004 |
US $1.02 |
||
|
9054115111
|
9054115111
90541-15111 Cushion, Radiator Support |
90541-15111 |
from US $2.20 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
