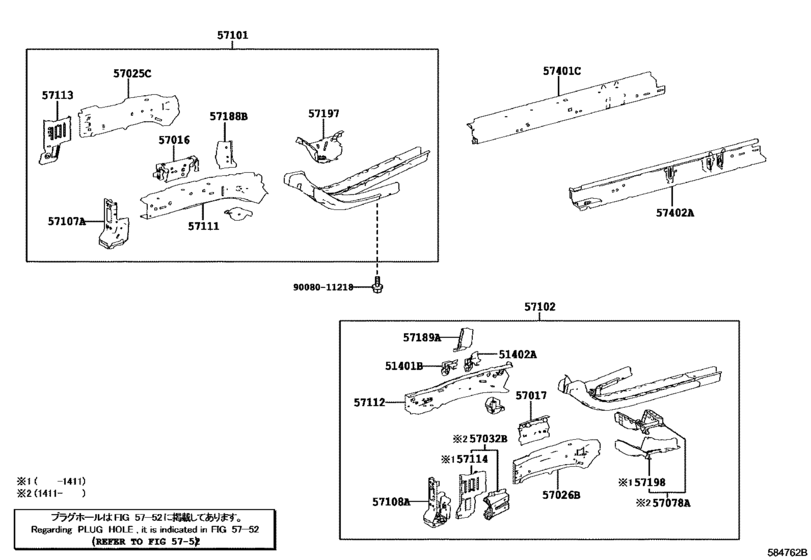

Front Floor Panel & Front Floor Member ([01.2013 - ] FRONT SIDE MEMBER (1301- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- ASA42
- grade
- SE
- body
- WG
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- RAV4 (NAP)
- From
- 11.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51401B
|
51401B
51401-0R010
Bracket Sub-Assy, Engine Front Mounting
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
51401-0R010 |
— | ||
|
51402A
|
51402A
51402-0R010
Bracket Sub-Assy, Engine Front Mounting, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
51402-0R010 |
— | ||
|
57016
|
57016
57016-0R010
Reinforcement Sub-Assy, Front Side Member, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57016-0R010 |
— | ||
|
57017
|
57017
57017-0R010
Reinforcement Sub-Assy, Front Side Member, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57017-0R010 |
— | ||
|
57025C
|
57025C
57025-0R010
Member Sub-Assy, Front Side, Outer Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57025-0R010 |
— | ||
|
57026B
|
57026B
57026-0R010
Member Sub-Assy, Front Side, Outer Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57026-0R010 |
— | ||
|
57032B
|
57032B
57032-0R010
Reinforcement Sub-Assy, Front Side Member, No.2 Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57032-0R010 |
— | ||
|
57078A
|
57078A
57078-0R010
Box Sub-Assy, Torque, Front Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57078-0R010 |
— | ||
|
57101
|
57101
57101-0R010
Member Sub-Assy, Front Side, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57101-0R010 |
— | ||
|
57102
|
57102
57102-0R030
Member Sub-Assy, Front Side, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57102-0R030 |
— | ||
|
57107A
|
57107A
57107-0R011
Plate Sub-Assy, Front Side Member, No.2 Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57107-0R011 |
— | ||
|
57108A
|
57108A
57108-0R011
Plate Sub-Assy, Front Side Member, No.2 Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57108-0R011 |
— | ||
|
57111
|
57111
57111-0R010
Member, Front Side, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57111-0R010 |
— | ||
|
57112
|
57112
57112-0R011
Member, Front Side, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57112-0R011 |
— | ||
|
57113
|
57113
57113-0R010
Extension, Front Side Member, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57113-0R010 |
— | ||
|
57188B
|
57188B
57188-0R010
Gusset, Front Side Member To Spring Support, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57188-0R010 |
— | ||
|
57189A
|
57189A
57189-0R010
Gusset, Front Side Member To Spring Support, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57189-0R010 |
— | ||
|
57197
|
57197
57197-0R010
Box, Torque, Front Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57197-0R010 |
— | ||
|
57401C
|
57401C
57401-0R040
Member Sub-Assy, Floor Side, Inner Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57401-0R040 |
— | ||
|
57402A
|
57402A
57402-0R080
Member Sub-Assy, Floor Side, Inner Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
57402-0R080 |
— | ||
|
9008011218
|
9008011218
90080-11218
New Genuine Part
|
90080-11218 |
— |
