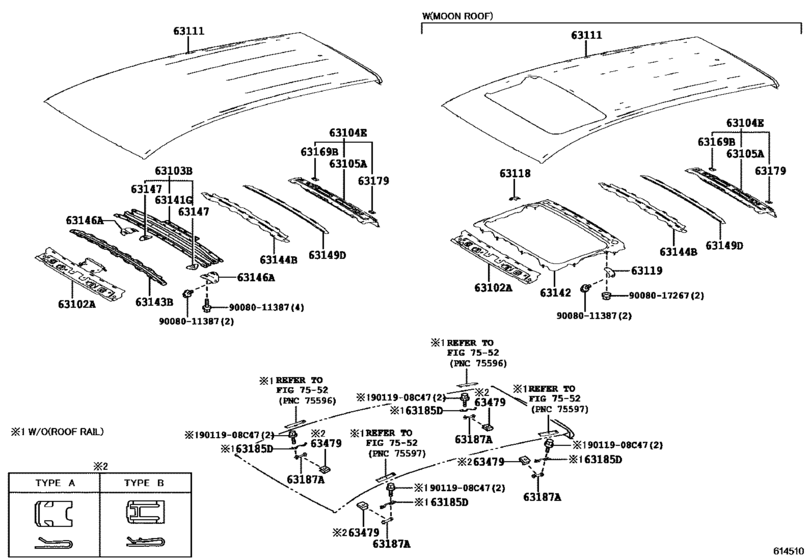

Roof Panel & Back Panel ([01.2013 - ] PANEL & REINFORCE (1301- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- ASA42
- grade
- SE
- body
- WG
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- RAV4 (NAP)
- From
- 11.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
61302-0R901
Panel Sub-Assy, Windshield Header
[11.2015 -] ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA |
61302-0R901 |
— | ||
|
63104E
|
63104E
63104-0R010
Reinforcement Sub-Assy, Roof Panel, Rear
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
63104-0R010 |
— | ||
|
63105A
|
63105A
63105-0R030
Frame Sub-Assy, Back Door Opening
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
63105-0R030 |
— | ||
|
63111
|
63111
63111-0R091
Panel, Roof
[11.2015 -] ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA |
63111-0R091 |
— | ||
|
63118
|
63118
63118-0R030
Support, Roof Panel, Rh
[11.2015 -] ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA |
63118-0R030 |
— | ||
|
63119
|
63119
63118-0R030
Support, Roof Panel, Rh
[11.2015 -] ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA |
63118-0R030 |
— | ||
|
63142
|
63142
63142-0R030
Reinforcement, Roof Panel, No.2
[11.2015 -] ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA |
63142-0R030 |
— | ||
|
63144B
|
63144B
63144-0R031
Reinforcement, Roof Panel, No.4
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
63144-0R031 |
— | ||
|
63149D
|
63149D
63149-0R040
Reinforcement, Roof Panel, No.8
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
63149-0R040 |
— | ||
|
63169B
|
63169B
63169-0R010
Plate, Roof Panel Reinforcement, Rh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
63169-0R010 |
— | ||
|
63179
|
63179
63179-0R010
Plate, Roof Panel Reinforcement, Lh
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
63179-0R010 |
— | ||
|
63185D
|
63185D
63185-0R010
Bracket, Roof Rack, Front
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND (L) |
63185-0R010 |
— | ||
|
63185D
|
63185D
63185-42020 Bracket, Roof Rack, Front Rh[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND (J) |
63185-42020 |
from US $2.42 |
||
|
63187A
|
63187A
63187-0R010
Bracket, Roof Rack, Rear
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
63187-0R010 |
— | ||
|
63479
|
63479
63479-0E010
Clip(Bracket, Roof Rack)
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND TYPE B:REFER ILLUST. |
63479-0E010 |
— | ||
|
63479
|
63479
63479-42010 Retainer, Roof Inner Rack[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND TYPE A:REFER ILLUST. |
63479-42010 |
from US $1.76 |
||
|
9011908C47
|
9011908C47
90119-08C47 BOLT WWASHER |
90119-08C47 |
from US $0.84 |
||
|
9008011387
|
9008011387
90080-11387
New Genuine Part
|
90080-11387 |
— | ||
|
9008017267
|
9008017267
90080-17267
New Genuine Part
|
90080-17267 |
— |
