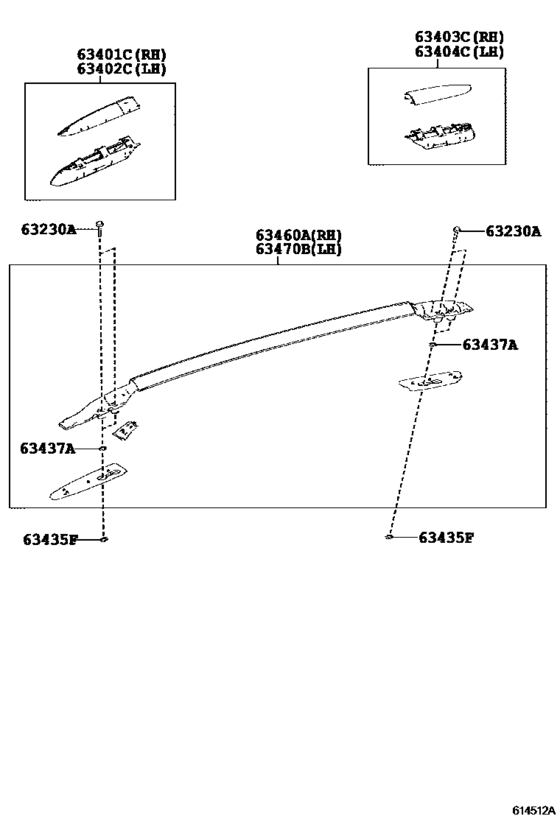

Roof Panel & Back Panel ([01.2013 - ] ROOF RAIL (1301- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- ASA42
- grade
- SE
- body
- WG
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- RAV4 (NAP)
- From
- 11.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63230A
|
63230A
63230-01020
Bolt Assy, Removable Roof
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND ROOF RAIL-WITH(CROSS BAR LESS) |
63230-01020 |
— | ||
|
63401C
|
63401C
63401-0R030
Cover Sub-Assy, Roof Rack, Front Rh
[11.2015 - 09.2016] ASA4# ROOF RAIL-WITH(CROSS BAR LESS) |
63401-0R030 |
— | ||
| replacement | |||||
|
63401C
|
63401C
63401-0R030-B1
Cover Sub-Assy, Roof Rack, Front Rh
[11.2015 - 09.2016] ASA4# ROOF RAIL-WITH(CROSS BAR LESS) |
63401-0R030-B1 |
— | ||
|
63401C
|
63401C
63401-0R030-B0
Cover Sub-Assy, Roof Rack, Front Rh
[09.2016 -] ASA44..SE;ASA42..SE..USA ROOF RAIL-WITH(CROSS BAR LESS),SILVER ME.,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,8X7 , 9AH; ASA42..LE,XLE;ASA42..LIMD..USA;ASA44..LE,LIMD,XLE ROOF RAIL-WITH(CROSS BAR LESS),SILVER ME.,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 |
63401-0R030-B0 |
— | ||
|
63402C
|
63402C
63402-0R010
Cover Sub-Assy, Roof Rack, Front Lh
[11.2015 - 09.2016] ASA4# ROOF RAIL-WITH(CROSS BAR LESS) |
63402-0R010 |
— | ||
| replacement | |||||
|
63402C
|
63402C
63402-0R010-B1
Cover Sub-Assy, Roof Rack, Front Lh
[11.2015 - 09.2016] ASA4# ROOF RAIL-WITH(CROSS BAR LESS) |
63402-0R010-B1 |
— | ||
|
63402C
|
63402C
63402-0R010-B0
Cover Sub-Assy, Roof Rack, Front Lh
[09.2016 -] ASA44..SE;ASA42..SE..USA ROOF RAIL-WITH(CROSS BAR LESS),SILVER ME.,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,8X7 , 9AH; ASA42..LE,XLE;ASA42..LIMD..USA;ASA44..LE,LIMD,XLE ROOF RAIL-WITH(CROSS BAR LESS),SILVER ME.,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 |
63402-0R010-B0 |
— | ||
|
63403C
|
63403C
63403-0R010
Cover Sub-Assy, Roof Rack, Rear Rh
[11.2015 - 09.2016] ASA4# ROOF RAIL-WITH(CROSS BAR LESS) |
63403-0R010 |
— | ||
| replacement | |||||
|
63403C
|
63403C
63403-0R010-B1
Cover Sub-Assy, Roof Rack, Rear Rh
[11.2015 - 09.2016] ASA4# ROOF RAIL-WITH(CROSS BAR LESS) |
63403-0R010-B1 |
— | ||
|
63403C
|
63403C
63403-0R010-B0
Cover Sub-Assy, Roof Rack, Rear Rh
[09.2016 -] ASA44..SE;ASA42..SE..USA ROOF RAIL-WITH(CROSS BAR LESS),SILVER ME.,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,8X7 , 9AH; ASA42..LE,XLE;ASA42..LIMD..USA;ASA44..LE,LIMD,XLE ROOF RAIL-WITH(CROSS BAR LESS),SILVER ME.,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 |
63403-0R010-B0 |
— | ||
|
63404C
|
63404C
63404-0R010
Cover Sub-Assy, Roof Rack, Rear Lh
[11.2015 - 09.2016] ASA4# ROOF RAIL-WITH(CROSS BAR LESS) |
63404-0R010 |
— | ||
| replacement | |||||
|
63404C
|
63404C
63404-0R010-B1
Cover Sub-Assy, Roof Rack, Rear Lh
[11.2015 - 09.2016] ASA4# ROOF RAIL-WITH(CROSS BAR LESS) |
63404-0R010-B1 |
— | ||
|
63404C
|
63404C
63404-0R010-B0
Cover Sub-Assy, Roof Rack, Rear Lh
[09.2016 -] ASA44..SE;ASA42..SE..USA ROOF RAIL-WITH(CROSS BAR LESS),SILVER ME.,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,8X7 , 9AH; ASA42..LE,XLE;ASA42..LIMD..USA;ASA44..LE,LIMD,XLE ROOF RAIL-WITH(CROSS BAR LESS),SILVER ME.,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 |
63404-0R010-B0 |
— | ||
|
63435F
|
63435F
63437-0R010
Seal, Roof Carrier, No.1
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND ROOF RAIL-WITH(CROSS BAR LESS) |
63437-0R010 |
— | ||
|
63437A
|
63437A
63437-0R010
Seal, Roof Carrier, No.1
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND ROOF RAIL-WITH(CROSS BAR LESS) |
63437-0R010 |
— | ||
|
63460A
|
63460A
63460-0R030
Rack Assy, Roof, Rh
[11.2015 - 09.2016] ASA4# ROOF RAIL-WITH(CROSS BAR LESS) |
63460-0R030 |
— | ||
| replacement | |||||
|
63460A
|
63460A
63460-0R030-B1
Rack Assy, Roof, Rh
[11.2015 - 09.2016] ASA4# ROOF RAIL-WITH(CROSS BAR LESS) |
63460-0R030-B1 |
— | ||
|
63460A
|
63460A
63460-0R030-B0
Rack Assy, Roof, Rh
[09.2016 -] ASA44..SE;ASA42..SE..USA ROOF RAIL-WITH(CROSS BAR LESS),SILVER ME.,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,8X7 , 9AH; ASA42..LE,XLE;ASA42..LIMD..USA;ASA44..LE,LIMD,XLE ROOF RAIL-WITH(CROSS BAR LESS),SILVER ME.,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 |
63460-0R030-B0 |
— | ||
|
63470B
|
63470B
63470-0R030
Rack Assy, Roof, Lh
[11.2015 - 09.2016] ASA4# ROOF RAIL-WITH(CROSS BAR LESS) |
63470-0R030 |
— | ||
| replacement | |||||
|
63470B
|
63470B
63470-0R030-B1
Rack Assy, Roof, Lh
[11.2015 - 09.2016] ASA4# ROOF RAIL-WITH(CROSS BAR LESS) |
63470-0R030-B1 |
— | ||
|
63470B
|
63470B
63470-0R030-B0
Rack Assy, Roof, Lh
[09.2016 -] ASA44..SE;ASA42..SE..USA ROOF RAIL-WITH(CROSS BAR LESS),SILVER ME.,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,8X7 , 9AH; ASA42..LE,XLE;ASA42..LIMD..USA;ASA44..LE,LIMD,XLE ROOF RAIL-WITH(CROSS BAR LESS),SILVER ME.,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 |
63470-0R030-B0 |
— | ||
