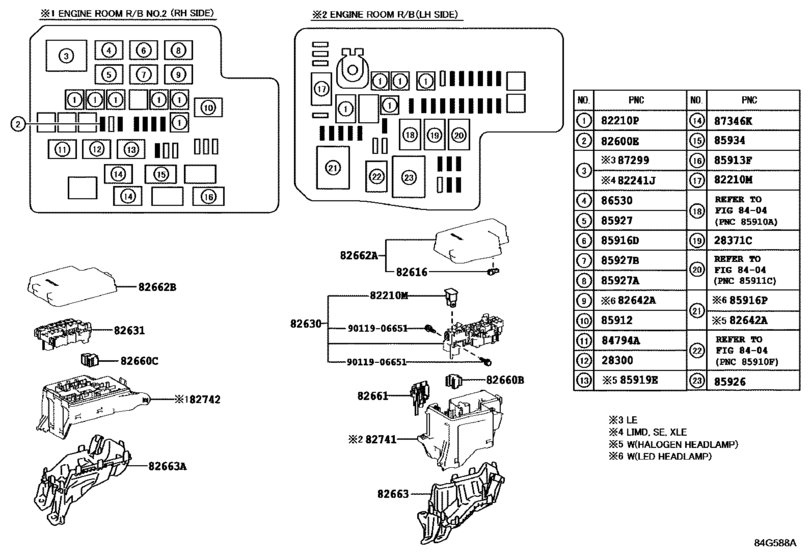

Switch & Relay & Computer ([11.2015 - ] ENGINE ROOM RELAY BLOCK (1511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- ASA42
- grade
- SE
- body
- WG
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- RAV4 (NAP)
- From
- 11.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-0A010
Relay Assy, Starter
[11.2015 - 12.2015] 2ARFE..ASA4# |
28300-0A010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-0A011 Relay Assy, Starter[11.2015 - 12.2015] 2ARFE..ASA4# |
28300-0A011 |
US $38.73 |
||
|
28300
|
28300
28300-0A011 Relay Assy, Starter[12.2015 -] 2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND |
28300-0A011 |
US $38.73 |
||
|
28371C
|
28371C
90080-87026
Relay, Water Pump
[11.2015 -] 2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND |
90080-87026 |
— | ||
| replacement | |||||
|
28371C
|
28371C
90987-02027 Relay[11.2015 -] 2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND |
90987-02027 |
from US $31.43 |
||
|
82210M
|
82210M
90982-08286 Fusible Link[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 140A,TERMINAL:MALE |
90982-08286 |
from US $7.68 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 80A,TERMINAL:FEMALE |
90982-08305 |
US $6.24 |
||
|
82241J
|
82241J
82241-42010 Pin, Short[11.2015 -] ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA |
82241-42010 |
US $4.80 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82616-58010 |
from US $2.40 |
||
|
82630
|
82630
82630-42020 Holder Assy, Fuse[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82630-42020 |
US $50.67 |
||
|
82631
|
82631
82631-42060 Holder, Fuse[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82631-42060 |
from US $38.88 |
||
|
82642A
|
82642A
90080-87026
Relay, Water Pump
[11.2015 -] ASA44..SE;ASA42..SE..USA; ASA44..LIMD;ASA42..LIMD..USA HEADLAMP-LED; ASA44..LIMD;ASA42..LIMD..USA HEADLAMP-LED & WITH(*AHB) |
90080-87026 |
— | ||
| replacement | |||||
|
82642A
|
82642A
90987-02027 Relay[11.2015 -] ASA44..SE;ASA42..SE..USA; ASA44..LIMD;ASA42..LIMD..USA HEADLAMP-LED; ASA44..LIMD;ASA42..LIMD..USA HEADLAMP-LED & WITH(*AHB) |
90987-02027 |
from US $31.43 |
||
|
82660B
|
82660B
82660-0H070 Block Assy, Relay[11.2015 -] ASA44..SE;ASA42..SE..USA; ASA44..LIMD;ASA42..LIMD..USA HEADLAMP-LED; ASA44..LIMD;ASA42..LIMD..USA HEADLAMP-LED & WITH(*AHB) |
82660-0H070 |
US $6.99 |
||
|
82660C
|
82660C
82660-52010 Block Assy, Relay[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82660-52010 |
US $7.13 |
||
|
82661
|
82661
82661-42040 Cover, Relay Block, No.1[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82661-42040 |
US $7.13 |
||
|
82662A
|
82662A
82662-0R160
Cover, Relay Block, Upper, No.1
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82662-0R160 |
— | ||
|
82662B
|
82662B
82662-0R190
Cover, Relay Block, Upper, No.2
[11.2015 - 09.2017] ASA4# |
82662-0R190 |
— | ||
|
82663
|
82663
82663-42100 Cover, Relay Block, Lower[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82663-42100 |
from US $36.52 |
||
|
82663A
|
82663A
82663-42110 Cover, Relay Block, Lower, No.2[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82663-42110 |
from US $32.32 |
||
|
82741
|
82741
82741-42020 Block, Engine Room Relay[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82741-42020 |
from US $56.93 |
||
|
82742
|
82742
82741-42031 Block, Engine Room Relay, No.2[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82741-42031 |
US $61.87 |
||
|
85912
|
85912
90080-87026
Relay, Water Pump
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90080-87026 |
— | ||
| replacement | |||||
|
85912
|
85912
90987-02027 Relay[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90987-02027 |
from US $31.43 |
||
|
85916D
|
85916D
90080-87026
Relay, Water Pump
[11.2015 -] ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA; ASA4#..XLE..USA MEXICO SPEC |
90080-87026 |
— | ||
| replacement | |||||
|
85916D
|
85916D
90987-02027 Relay[11.2015 -] ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA; ASA4#..XLE..USA MEXICO SPEC |
90987-02027 |
from US $31.43 |
||
|
85916P
|
85916P
90080-87024 Relay, Water PumpIGNITION, NO.1 [11.2015 -] ASA44..SE;ASA42..SE..USA; ASA44..LIMD;ASA42..LIMD..USA HEADLAMP-LED; ASA44..LIMD;ASA42..LIMD..USA HEADLAMP-LED & WITH(*AHB) |
90080-87024 |
US $63.26 |
||
|
85926
|
85926
90080-87024 Relay, Water PumpIGNITION, NO.1 [11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90080-87024 |
US $63.26 |
||
|
85927
|
85927
90080-87026
Relay, Water Pump
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND (L) |
90080-87026 |
— | ||
| replacement | |||||
|
85927
|
85927
90987-02027 Relay[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND (L) |
90987-02027 |
from US $31.43 |
||
|
85927
|
85927
90987-02027 Relay[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND (J) |
90987-02027 |
from US $31.43 |
||
|
85927A
|
85927A
90084-98032 Relay, Cooling Fan, No.2[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND (L) |
90084-98032 |
US $81.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND (J) |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90080-87026
Relay, Water Pump
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90080-87026 |
— | ||
| replacement | |||||
|
85927B
|
85927B
90987-02027 Relay[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90987-02027 |
from US $31.43 |
||
|
85934
|
85934
90080-87026
Relay, Water Pump
[11.2015 -] ASA42..USA;ASA42..(LE,XLE)..CND |
90080-87026 |
— | ||
| replacement | |||||
|
85934
|
85934
90987-02027 Relay[11.2015 -] ASA42..USA;ASA42..(LE,XLE)..CND |
90987-02027 |
from US $31.43 |
||
|
86530
|
86530
90080-87026
Relay, Water Pump
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90080-87026 |
— | ||
| replacement | |||||
|
86530
|
86530
90987-02027 Relay[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90987-02027 |
from US $31.43 |
||
|
87346K
|
87346K
90080-87026
Relay, Water Pump
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90080-87026 |
— | ||
| replacement | |||||
|
87346K
|
87346K
90987-02027 Relay[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90987-02027 |
from US $31.43 |
||
|
9011906651
|
9011906651
90119-06651 BOLT WWASHER |
90119-06651 |
from US $0.72 |
||
