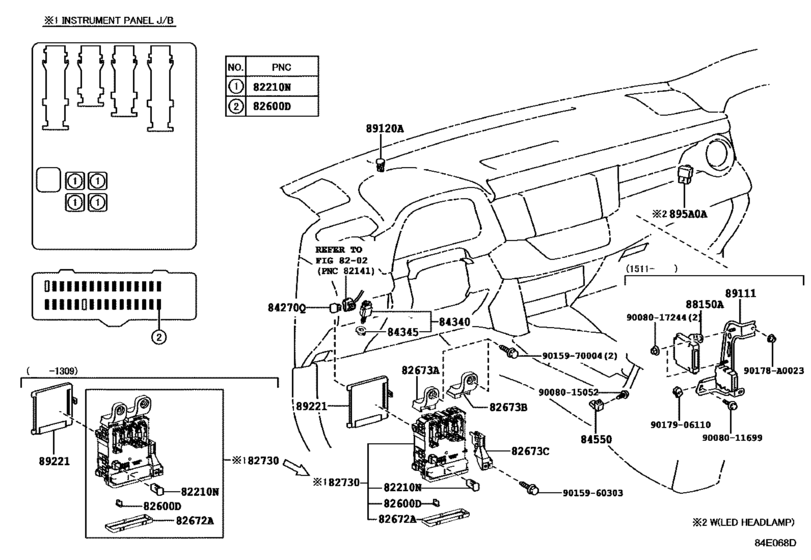

Switch & Relay & Computer ([01.2013 - ] COWL (1301- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- ASA42
- grade
- SE
- body
- WG
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- RAV4 (NAP)
- From
- 11.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0A
|
895A0A
895A0-20020 Computer Assy, Stop Lamp ControlSTOP LAMP CONTROL [11.2015 -] ASA44..SE;ASA42..SE..USA; ASA44..LIMD;ASA42..LIMD..USA HEADLAMP-LED; ASA44..LIMD;ASA42..LIMD..USA HEADLAMP-LED & WITH(*AHB) |
895A0-20020 |
US $48.75 |
||
|
82210N
|
82210N
90982-08306 Fusible Link[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82672A
|
82672A
82672-0R030
Cover, Junction Block
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82672-0R030 |
— | ||
|
82673A
|
82673A
82673-0R010
Bracket, Junction Block
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82673-0R010 |
— | ||
|
82673B
|
82673B
82673-0R020
Bracket, Junction Block
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82673-0R020 |
— | ||
|
82673C
|
82673C
82673-0R030
Bracket, Junction Block
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
82673-0R030 |
— | ||
|
82730
|
82730
82730-0R100
Block Assy, Instrument Panel Junction
[11.2015 - 02.2016] ASA4#..LIMD,SE,XLE; ASA4#..LE..CND SEAT HEATER-WITH(HI-LO SWITCH(DRIVER & PASSENGER)) |
82730-0R100 |
— | ||
| replacement | |||||
|
82730
|
82730
82730-0R101
Block Assy, Instrument Panel Junction
[11.2015 - 02.2016] ASA4#..LIMD,SE,XLE; ASA4#..LE..CND SEAT HEATER-WITH(HI-LO SWITCH(DRIVER & PASSENGER)) |
82730-0R101 |
— | ||
|
82730
|
82730
82730-0R101
Block Assy, Instrument Panel Junction
[03.2016 -] ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA; ASA4#..LE..CND SEAT HEATER-WITH(HI-LO SWITCH(DRIVER & PASSENGER)) |
82730-0R101 |
— | ||
|
84270Q
|
84270Q
90080-87026
Relay, Water Pump
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90080-87026 |
— | ||
| replacement | |||||
|
84270Q
|
84270Q
90987-02027 Relay[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
90987-02027 |
from US $31.43 |
||
|
84340
|
84340
84340-39015 Switch Assy, Stop Lamp[11.2015 -] ASA44..SE;ASA42..SE..USA; ASA44..LIMD;ASA42..LIMD..USA HEADLAMP-LED; ASA44..LIMD;ASA42..LIMD..USA HEADLAMP-LED & WITH(*AHB) |
84340-39015 |
from US $24.39 |
||
|
84345
|
84345
84345-08010
Adjuster, Stop Lamp Switch Mounting
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
84345-08010 |
— | ||
|
84550
|
84550
84550-02020
Switch Assy, Parking Brake
[11.2015 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
84550-02020 |
— | ||
|
88150A
|
88150A
88150-0R010
Computer Assy, Driving Support
[11.2015 - 09.2016] ASA4# PRE-COLLISION SYSTEM-WITH |
88150-0R010 |
— | ||
|
88150A
|
88150A
88150-0R011
Computer Assy, Driving Support
[09.2016 -] ASA4#..USA; ASA44..CND;ASA42..(LE,XLE)..CND PRE-COLLISION SYSTEM-WITH; ASA4#..USA PRE-COLLISION SYSTEM-WITHOUT |
88150-0R011 |
— | ||
|
89111
|
89111
89100-42010
Computer, Network Gateway
[11.2015 - 01.2016] ASA4# |
89100-42010 |
— | ||
| replacement | |||||
|
89111
|
89111
89100-42011
Computer, Network Gateway
[11.2015 - 01.2016] ASA4# |
89100-42011 |
— | ||
|
89111
|
89111
89100-42011
Computer, Network Gateway
[02.2016 -] ASA44;ASA42..USA;ASA42..(LE,XLE)..CND |
89100-42011 |
— | ||
|
89120A
|
89120A
89121-50020 Sensor, Automatic Light Control[11.2015 -] ASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA; ASA4#..LE..CND PRE-COLLISION SYSTEM-WITH |
89121-50020 |
from US $108.04 |
||
|
89221
|
89221
89220-0R210
Computer, Multiplex Network Body
[11.2015 - 09.2016] ASA4#..(SE,XLE)..USA PUERTORICO SPEC |
89220-0R210 |
— | ||
|
89221
|
89221
89220-0R220
Computer, Multiplex Network Body
[11.2015 - 09.2016] ASA4#..(SE,XLE)..USA PUERTORICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
89220-0R220 |
— | ||
|
89221
|
89221
89220-0R250
Computer, Multiplex Network Body
[11.2015 - 09.2016] ASA4#..(SE,XLE)..USA MEXICO SPEC |
89220-0R250 |
— | ||
|
89221
|
89221
89220-0R260
Computer, Multiplex Network Body
[11.2015 - 09.2016] ASA4#..(SE,XLE)..USA MEXICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR); ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&SEAT COVER MATER IAL-PU LEATHER(SPORTY)&SEAT HEATER-WITH(HI-LO SW |
89220-0R260 |
— | ||
|
89221
|
89221
89220-0R290
Computer, Multiplex Network Body
[11.2015 - 09.2016] ASA4#..(SE,XLE)..USA; ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&SEAT COVER MATER IAL-PU LEATHER(SPORTY); ASA4#..XLE..USA MEXICO SPEC&SEAT COVER MATERIAL-PU LEATHER(SPORTY); ASA4#..SE..USA PUERTOR |
89220-0R290 |
— | ||
|
89221
|
89221
89220-0R300
Computer, Multiplex Network Body
[11.2015 - 09.2016] ASA4#..(SE,XLE)..USA POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
89220-0R300 |
— | ||
|
89221
|
89221
89220-0R400
Computer, Multiplex Network Body
[09.2016 -] ASA4#..(SE,XLE)..USA PUERTORICO SPEC&PRE-COLLISION SYSTEM-WITHOUT |
89220-0R400 |
— | ||
|
89221
|
89221
89220-0R410
Computer, Multiplex Network Body
[09.2016 -] ASA4#..SE..USA PUERTORICO SPEC&PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-W(TWO OPERATION) & W( HANDS FREE *PBD); ASA4#..(SE,XLE)..USA PUERTORICO SPEC&PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-W(TWO OPERATION) & W( POWER BACK DOOR) |
89220-0R410 |
— | ||
|
89221
|
89221
89220-0R420
Computer, Multiplex Network Body
[09.2016 -] ASA4#..LIMD..USA PUERTORICO SPEC; ASA4#..(SE,XLE)..USA PUERTORICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR); ASA4#..SE..USA PUERTORICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD) |
89220-0R420 |
— | ||
|
89221
|
89221
89220-0R440
Computer, Multiplex Network Body
[09.2016 -] ASA4#..(SE,XLE)..USA MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT |
89220-0R440 |
— | ||
|
89221
|
89221
89220-0R450
Computer, Multiplex Network Body
[09.2016 -] ASA4#..SE..USA MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-W(TWO OPERATION) & W(HAND S FREE *PBD); ASA4#..(SE,XLE)..USA MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-W(TWO OPERATION) & W(POWE R BACK DOOR); ASA4#..XLE..U |
89220-0R450 |
— | ||
|
89221
|
89221
89220-0R480
Computer, Multiplex Network Body
[09.2016 -] ASA4#..(SE,XLE)..USA PRE-COLLISION SYSTEM-WITHOUT |
89220-0R480 |
— | ||
|
89221
|
89221
89220-0R490
Computer, Multiplex Network Body
[09.2016 -] ASA4#..SE..USA PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD); ASA4#..(SE,XLE)..USA PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR) |
89220-0R490 |
— | ||
|
89221
|
89221
89220-0R500
Computer, Multiplex Network Body
[09.2016 -] ASA4#..LIMD..USA; ASA4#..(SE,XLE)..USA POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR); ASA4#..LIMD..USA POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD); ASA4#..SE..USA POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD); ASA4#.. |
89220-0R500 |
— | ||
|
89221
|
89221
89220-0R570
Computer, Multiplex Network Body
[09.2016 -] ASA4#..(SE,XLE)..USA PUERTORICO SPEC |
89220-0R570 |
— | ||
|
89221
|
89221
89220-0R590
Computer, Multiplex Network Body
[09.2016 -] ASA4#..(SE,XLE)..USA; ASA4#..XLE..USA MEXICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&SEAT COVER MATER IAL-PU LEATHER(SPORTY); ASA4#..XLE..USA MEXICO SPEC&SEAT COVER MATERIAL-PU LEATHER(SPORTY); ASA4#..SE..USA PUERTORICO SPEC |
89220-0R590 |
— | ||
|
90178A0023
|
90178A0023
90178-A0023
Nut, Wire Adjusting, No.2
|
90178-A0023 |
— | ||
|
9008011699
|
9008011699
90080-11699
Bolt, W/washer
|
90080-11699 |
— | ||
|
9008015052
|
9008015052
90080-15052 New Genuine Part |
90080-15052 |
US $0.73 |
||
|
9008017244
|
9008017244
90080-17244
NUT FLANGE
|
90080-17244 |
— | ||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.44 |
||
