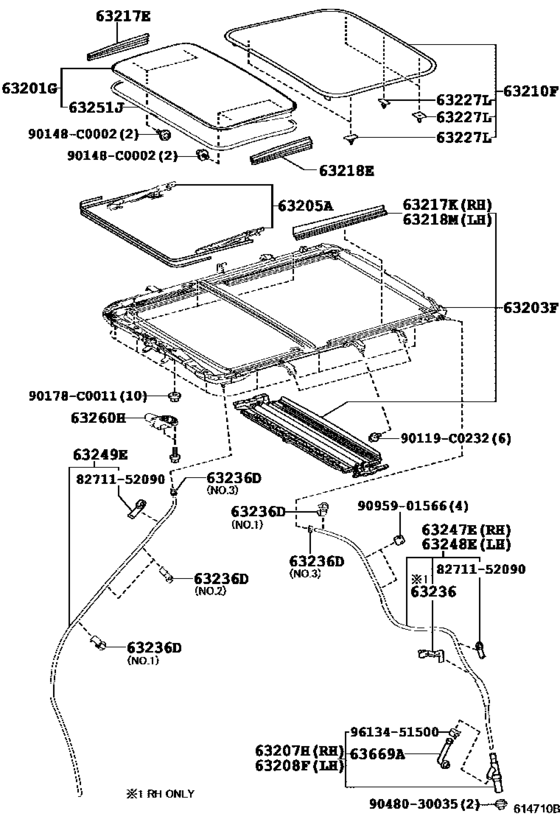

Roof Panel & Back Panel ([08.2013 - ] SLIDING ROOF PARTS(TWIN MOON ROOF) (1308- )ASA44) Diagram Toyota RAV4/VANGUARD
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- ASA44
- grade
- M
- ENGINE
- 5ARFE
- TRANSMISSION
- ATM
- Model
- RAV4 (CHINA)
- From
- 08.2013
- Gear Shift Type
- 6FC
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201G
|
63201G
63201-0R040
Glass Sub-Assy, Sliding Roof
[08.2013 - 07.2016] ASA44,ZSA4#..(G,M,Q)..HTWC |
63201-0R040 |
— | ||
|
63203F
|
63203F
63203-0R050-B2
Housing Sub-Assy, Sliding Roof
[08.2013 - 12.2014] ASA44 LT.GRAY,TRIM2#,3#,4# |
63203-0R050-B2 |
— | ||
| replacement | |||||
|
63203F
|
63203F
63203-0R051-B2
Housing Sub-Assy, Sliding Roof
[08.2013 - 12.2014] ASA44 LT.GRAY,TRIM2#,3#,4# |
63203-0R051-B2 |
— | ||
|
63203F
|
63203F
63203-0R051-B2
Housing Sub-Assy, Sliding Roof
[01.2015 - 07.2016] ASA44 LT.GRAY,TRIM2#,3#,4# |
63203-0R051-B2 |
— | ||
|
63205A
|
63205A
63205-0R020
Cable Sub-Assy, Sliding Roof Drive
[08.2013 - 07.2016] ASA44 |
63205-0R020 |
— | ||
|
63207H
|
63207H
63207-0R010
Hose Sub-Assy, Remove Roof Drain, Rear Rh
[08.2013 - 07.2016] ASA44 |
63207-0R010 |
— | ||
|
63208F
|
63208F
63208-0R010
Hose Sub-Assy, Remove Roof Drain, Rear Lh
[08.2013 - 07.2016] ASA44 |
63208-0R010 |
— | ||
|
63210F
|
63210F
63210-0R010
Glass Assy, Moon Roof
[08.2013 - 08.2014] ASA44 |
63210-0R010 |
— | ||
| replacement | |||||
|
63210F
|
63210F
63210-0R012
Glass Assy, Moon Roof
[08.2013 - 08.2014] ASA44 |
63210-0R012 |
— | ||
|
63210F
|
63210F
63210-0R011
Glass Assy, Moon Roof
[09.2014 - 06.2016] ASA44 |
63210-0R011 |
— | ||
| replacement | |||||
|
63210F
|
63210F
63210-0R012
Glass Assy, Moon Roof
[09.2014 - 06.2016] ASA44 |
63210-0R012 |
— | ||
|
63210F
|
63210F
63210-0R012
Glass Assy, Moon Roof
[07.2016 -] ASA44 |
63210-0R012 |
— | ||
|
63217E
|
63217E
63217-02030
Garnish, Sliding Roof, Front Rh
[11.2015 - 07.2016] ASA44,ZSA4#..(G,M,Q)..HTWC |
63217-02030 |
— | ||
| replacement | |||||
|
63217E
|
63217E
63217-30100 Garnish, Sliding Roof Side, Rh[11.2015 - 07.2016] ASA44,ZSA4#..(G,M,Q)..HTWC |
63217-30100 |
from US $21.55 |
||
|
63217E
|
63217E
63217-0R010
Garnish, Sliding Roof, Front Rh
[08.2013 - 10.2015] ASA44,ZSA4#..(G,M,Q)..HTWC |
63217-0R010 |
— | ||
| replacement | |||||
|
63217E
|
63217E
63217-30100 Garnish, Sliding Roof Side, Rh[08.2013 - 10.2015] ASA44,ZSA4#..(G,M,Q)..HTWC |
63217-30100 |
from US $21.55 |
||
|
63217K
|
63217K
63217-0R020
Garnish, Sliding Roof Side, Rh
[08.2013 - 07.2016] ASA44 |
63217-0R020 |
— | ||
|
63218E
|
63218E
63217-02030
Garnish, Sliding Roof, Front Rh
[11.2015 - 07.2016] ASA44,ZSA4#..(G,M,Q)..HTWC |
63217-02030 |
— | ||
| replacement | |||||
|
63218E
|
63218E
63217-30100 Garnish, Sliding Roof Side, Rh[11.2015 - 07.2016] ASA44,ZSA4#..(G,M,Q)..HTWC |
63217-30100 |
from US $21.55 |
||
|
63218E
|
63218E
63217-0R010
Garnish, Sliding Roof, Front Rh
[08.2013 - 10.2015] ASA44,ZSA4#..(G,M,Q)..HTWC |
63217-0R010 |
— | ||
| replacement | |||||
|
63218E
|
63218E
63217-30100 Garnish, Sliding Roof Side, Rh[08.2013 - 10.2015] ASA44,ZSA4#..(G,M,Q)..HTWC |
63217-30100 |
from US $21.55 |
||
|
63218M
|
63218M
63218-0R010
Garnish, Sliding Roof Side, Lh
[08.2013 - 07.2016] ASA44 |
63218-0R010 |
— | ||
|
63227L
|
63227L
63227-0R010
Clip, Roof Window
[08.2013 - 07.2016] ASA44 FRONT |
63227-0R010 |
— | ||
|
63227L
|
63227L
63227-0R020
Clip, Roof Window
[08.2013 - 07.2016] ASA44 REAR CENTER |
63227-0R020 |
— | ||
|
63227L
|
63227L
63228-0R010
Clip, Roof Window
[08.2013 - 07.2016] ASA44 REAR RH |
63228-0R010 |
— | ||
|
63227L
|
63227L
63228-0R020
Clip, Roof Window
[08.2013 - 07.2016] ASA44 REAR LH |
63228-0R020 |
— | ||
|
63236
|
63236
63236-30020
Clamp, Sliding Roof Or Removable Roof Drain Hose
[08.2013 - 07.2016] ASA44,ZSA4#..(G,M,Q)..HTWC |
63236-30020 |
— | ||
|
63236D
|
63236D
63236-02010
Clamp, Sliding Roof Or Removable Roof Drain Hose
[12.2016 -] ASA44,ZSA4#..G,M,Q NO.2 |
63236-02010 |
— | ||
|
63236D
|
63236D
63236-0R010
Clamp, Sliding Roof Drain Hose
[08.2013 - 07.2016] ASA44 NO.1 |
63236-0R010 |
— | ||
|
63236D
|
63236D
63236-30010 Clamp, Sliding Roof Or Removable Roof Drain Hose[08.2013 - 07.2016] ASA44,ZSA4#..(G,M,Q)..HTWC NO.2 |
63236-30010 |
US $1.56 |
||
|
63236D
|
63236D
63236-33030 Clamp, Sliding Roof Or Removable Roof Drain Hose[08.2013 - 07.2016] ASA44,ZSA4#..(G,M,Q)..HTWC NO.3 |
63236-33030 |
US $1.28 |
||
|
63247E
|
63247E
63247-0R030
Hose, Sliding Roof Drain, Rear Rh
[08.2013 - 07.2016] ASA44 |
63247-0R030 |
— | ||
|
63248E
|
63248E
63248-0R030
Hose, Sliding Roof Drain, Rear Lh
[08.2013 - 07.2016] ASA44 |
63248-0R030 |
— | ||
|
63249E
|
63249E
63249-0R060
Hose, Sliding Roof Drain
[08.2013 - 07.2016] ASA44,ZSA4#..(G,M,Q)..HTWC |
63249-0R060 |
— | ||
|
63251J
|
63251J
63251-0R010
Weatherstrip, Sliding Roof
[08.2013 - 07.2016] ASA44,ZSA4#..(G,M,Q)..HTWC |
63251-0R010 |
— | ||
|
63260H
|
63260H
63260-0R050
Gear Assy, Sliding Roof Drive
[08.2013 - 07.2016] ASA44 |
63260-0R050 |
— | ||
|
63669A
|
63669A
63669-0R010
Grommet, Sliding Roof Drain
[08.2013 - 07.2016] ASA44 |
63669-0R010 |
— | ||
|
90119C0232
|
90119C0232
90119-C0232
New Genuine Part
|
90119-C0232 |
— | ||
|
90148C0002
|
90148C0002
90148-C0002
New Genuine Part
|
90148-C0002 |
— | ||
|
90178C0011
|
90178C0011
90178-C0011
New Genuine Part
|
90178-C0011 |
— | ||
|
8271152090
|
8271152090
82711-52090 Clamp |
82711-52090 |
from US $0.96 |
||
|
9048030035
|
9048030035
90480-30035 Grommet, Sliding Roof Drain |
90480-30035 |
US $1.60 |
||
|
9095901566
|
9095901566
90959-01566 New Genuine Part |
90959-01566 |
US $1.46 |
||
|
9613451500
|
9613451500
96134-51500
Clip(For Ventilation Hose No.2)
|
96134-51500 |
— | ||
| replacement | |||||
|
9613451500
|
9613451500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.24 |
||
