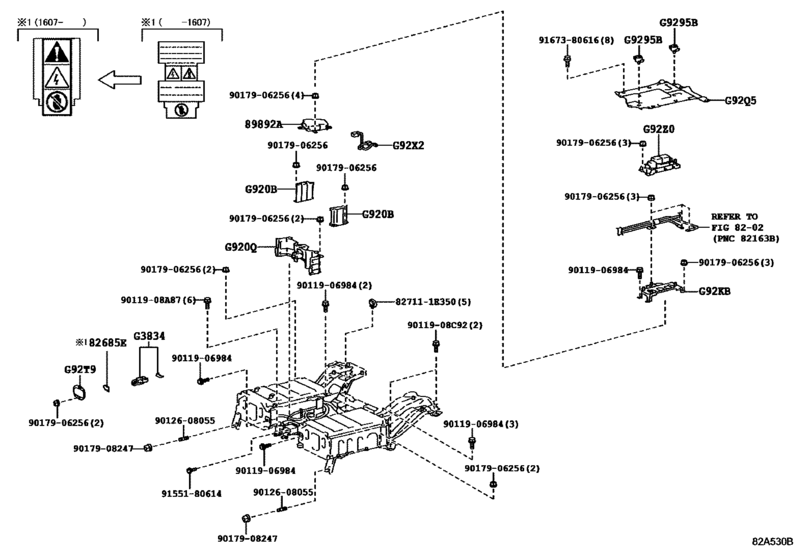

Battery & Battery Cable ([10.2015 - ] HV BATTERY (1510- )AVA4#) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- AVA42
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- PRODUCT
- JPP
- DESTINATION
- EUR
- Model
- RAV4
- From
- 10.2015
- Gear Shift Type
- A
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Grade Mark
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82685E
|
82685E
82685-50050 Plate, Service Plug CautionSERVICE PLUG CAUTION [10.2015 - 07.2016] AVA4# |
82685-50050 |
US $2.04 |
||
|
82685E
|
82685E
82685-76020 Plate, Service Plug Caution[07.2016 -] AVA44;AVA42..EUR |
82685-76020 |
US $2.04 |
||
|
89892A
|
89892A
89892-48050 Sensor, Battery Voltage[10.2015 -] AVA44;AVA42..EUR |
89892-48050 |
US $770.64 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
from US $2.09 |
||
|
9011908A87
|
9011908A87
90119-08A87 BOLT W-WASHER |
90119-08A87 |
from US $0.92 |
||
|
9011908C92
|
9011908C92
90119-08C92 New Genuine Part |
90119-08C92 |
US $1.24 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $1.08 |
||
|
9012608055
|
9012608055
90126-08055 Bolt, Stud(For Manifold To Cylinder Head) |
90126-08055 |
US $1.43 |
||
|
9017906256
|
9017906256
90179-06256 NUT |
90179-06256 |
from US $0.88 |
||
|
9017908247
|
9017908247
90179-08247 New Genuine Part |
90179-08247 |
US $1.79 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.66 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
G92KB
|
G92KB
G92KB-48010 Patch, Hv Battery Lwr Carrier, No.2[10.2015 -] AVA44;AVA42..EUR |
G92KB-48010 |
US $18.05 |
||
|
G92Q5
|
G92Q5
G92Q5-48010 Reinforcement, Hv Battery Shield, No.2[10.2015 -] AVA44;AVA42..EUR |
G92Q5-48010 |
US $36.84 |
||
|
G92T9
|
G92T9
G92T9-48010 Cover, Hybrid Battery Service Plug[10.2015 -] AVA44;AVA42..EUR |
G92T9-48010 |
US $8.30 |
||
|
G92X2
|
G92X2
G92X2-48040 Wire, Hv Battery Pack, No.2[10.2015 -] AVA44;AVA42..EUR |
G92X2-48040 |
US $16.45 |
||
|
G92Z0
|
G92Z0
G92Z0-53010 Block Assy, Hv Battery Junction[10.2015 -] AVA44;AVA42..EUR |
G92Z0-53010 |
US $443.04 |
||
|
G920B
|
G920B
G920B-48010 Bracket Sub-Assy, Hv Battery Carrier, No.1[10.2015 -] AVA44;AVA42..EUR |
G920B-48010 |
US $16.45 |
||
|
G920Q
|
G920Q
G920Q-48020 Shield Sub-Assy, Hybrid Battery, No.1[10.2015 -] AVA44;AVA42..EUR |
G920Q-48020 |
US $20.82 |
||
|
G3834
|
G3834
G3834-48010 Grip, Service PlugSERVICE PLUG [10.2015 -] AVA44;AVA42..EUR |
G3834-48010 |
US $38.14 |
||
|
G9295B
|
G9295B
G9295-30020 Striker, Battery Cover Lock[10.2015 -] AVA44;AVA42..EUR |
G9295-30020 |
US $3.58 |
