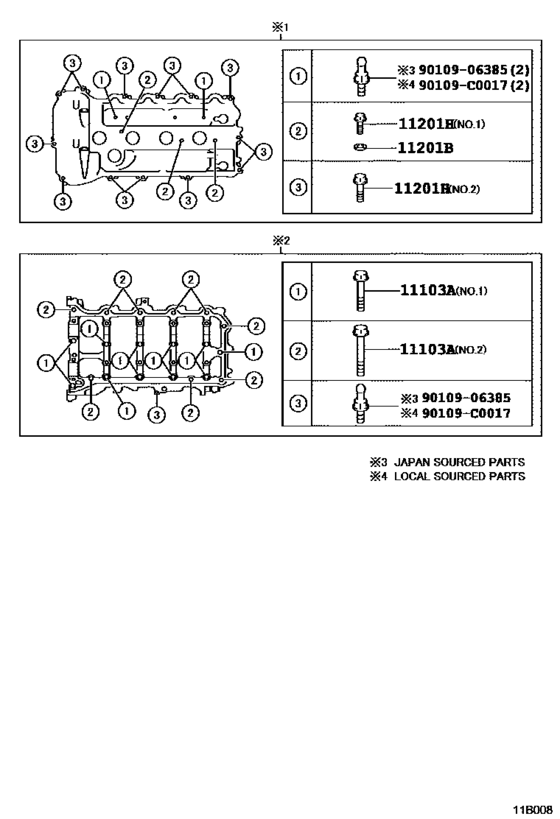

Cylinder Head ([10.2015 - ] (1510- )2ARFXE) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- AVA42
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- PRODUCT
- JPP
- DESTINATION
- EUR
- Model
- RAV4
- From
- 10.2015
- Gear Shift Type
- A
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Grade Mark
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11103A
|
11103A
90105-08455 Bolt(For Camshaft Housing Set)[10.2015 -] 2ARFXE..AVA42..EUR;2AR#..ASA44,AVA44..G,M *419 OR *463,NO.1; 2ARFXE..AVA44;2ARFXE..AVA42..EUR;2ARFE..ASA44..RUP..(G,M) (J),*347,NO.1:SEE |
90105-08455 |
from US $1.46 |
||
|
11103A
|
11103A
90105-C0074
Bolt(For Camshaft Housing Set)
[10.2015 -] 2ARFXE..AVA44;2ARFXE..AVA42..EUR;2ARFE..ASA44..RUP..(G,M) *347,NO.2:REF.ILLUST |
90105-C0074 |
— | ||
|
11103A
|
11103A
90105-C0167
Bolt(For Camshaft Housing Set)
[10.2015 -] 2ARFXE..AVA44;2ARFXE..AVA42..EUR;2ARFE..ASA44..RUP..(G,M) (L),*347,NO.1:SEE |
90105-C0167 |
— | ||
|
11103A
|
11103A
91551-G0845 Bolt(For Camshaft Housing Set)[10.2015 -] 2ARFXE..AVA42..EUR;2AR#..ASA44,AVA44..G,M *419 OR *463,NO.2 |
91551-G0845 |
US $1.79 |
||
|
11201B
|
11201B
90210-05008 Washer, Seal(For Cylinder Head Cover)[10.2015 -] 2ARFXE..AVA42..EUR;2AR#..ASA44,AVA44..G,M *419 OR *463; 2ARFXE..AVA44;2ARFXE..AVA42..EUR;2ARFE..ASA44..RUP..(G,M) *347 |
90210-05008 |
from US $0.76 |
||
|
11201H
|
11201H
90105-C0072
Bolt(For Cylinder Head Cover)
[10.2015 -] 2ARFXE..AVA44;2ARFXE..AVA42..EUR;2ARFE..ASA44..RUP..(G,M) *347,NO.2:REF.ILLUST |
90105-C0072 |
— | ||
|
11201H
|
11201H
90105-C0084
Bolt(For Cylinder Head Cover)
[10.2015 -] 2ARFXE..AVA44;2ARFXE..AVA42..EUR;2ARFE..ASA44..RUP..(G,M) *347,NO.1:REF.ILLUST |
90105-C0084 |
— | ||
|
11201H
|
11201H
91551-80635 Bolt(For Head To Camshaft Bearing Cap)[10.2015 -] 2ARFXE..AVA42..EUR;2AR#..ASA44,AVA44..G,M *419 OR *463,NO.1 |
91551-80635 |
from US $0.78 |
||
|
11201H
|
11201H
91551-A0625 Bolt(For Cylinder Head Cover)[10.2015 -] 2ARFXE..AVA42..EUR;2AR#..ASA44,AVA44..G,M *419 OR *463,NO.2 |
91551-A0625 |
US $1.08 |
||
|
90109C0017
|
90109C0017
90109-C0017
Joint, Engine Cover
|
90109-C0017 |
— | ||
|
9010906385
|
9010906385
90109-06385 Bolt , V-Bank Cover, No.1 |
90109-06385 |
from US $0.74 |
