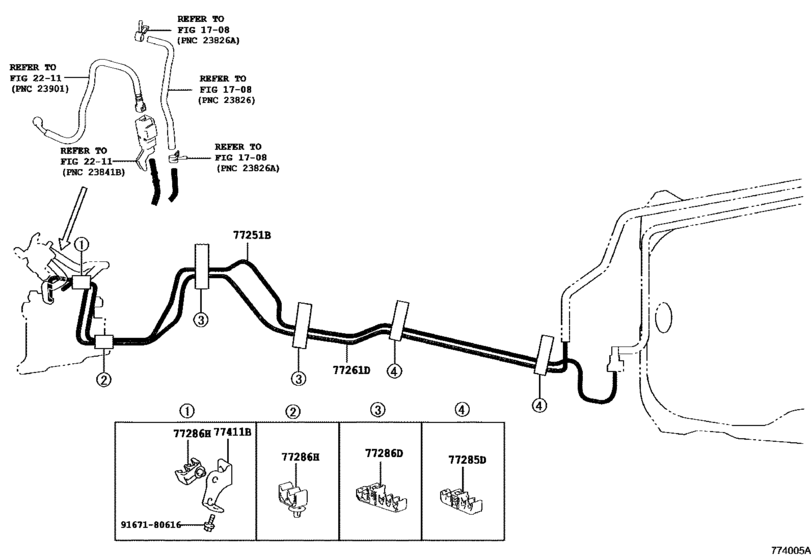

Fuel Tank & Tube ([10.2015 - ] FUEL TUBE (1510- )AVA4#) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- AVA42
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- PRODUCT
- JPP
- DESTINATION
- EUR
- Model
- RAV4
- From
- 10.2015
- Gear Shift Type
- A
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Grade Mark
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-48240 Tube, Fuel Main[10.2015 -] AVA4# |
77251-48240 |
US $24.32 |
||
|
77261D
|
77261D
77261-48250 Tube Sub-Assy, Fuel Emission[10.2015 -] AVA4# |
77261-48250 |
US $35.96 |
||
|
77285D
|
77285D
77298-52070 Clamp, Fuel Tube, No.3[10.2015 -] ZSA44..B;ZSA42..B..M;ALA49,ZSA44..DCRL,HTWVM;ALA49,ZSA42..(G,X)..(DCRE,EFI);ASA44, AVA4#,ZSA44..(6F,6FC,A)..(G,M)..(EFI,HTWC) |
77298-52070 |
from US $6.05 |
||
|
77286D
|
77286D
77298-68010 Clamp, Fuel Tube, No.1[10.2015 -] ZSA44..B;ZSA42..B..M;ALA49,ZSA44..DCRL,HTWVM;ALA49,ZSA42..(G,X)..(DCRE,EFI);ASA44, AVA4#,ZSA44..(6F,6FC,A)..(G,M)..(EFI,HTWC) |
77298-68010 |
from US $4.06 |
||
|
77286H
|
77286H
77286-48100 Clamp, Fuel Tube, No.1[10.2015 -] AVA4# |
77286-48100 |
US $2.91 |
||
|
77411B
|
77411B
77411-48080 Support, Fuel Tube Grommet, No.1[10.2015 -] AVA4# |
77411-48080 |
US $4.51 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
