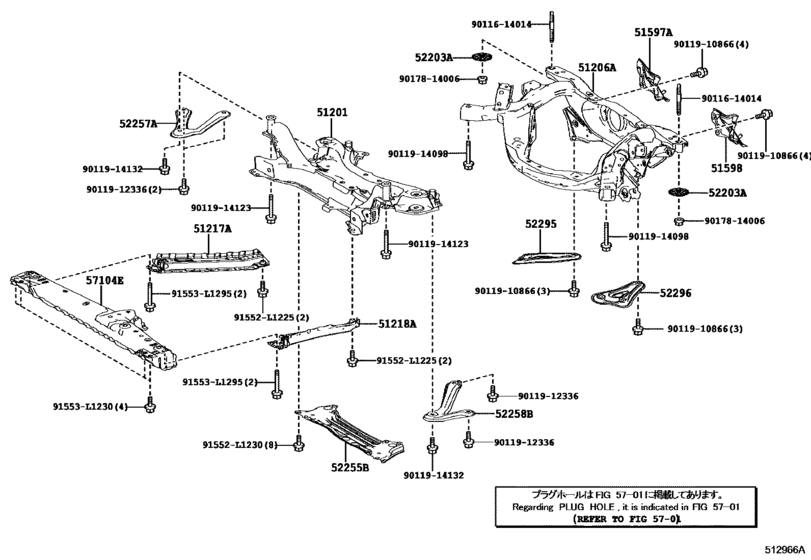

Suspension Crossmember & Under Cover ([10.2015 - ] SUSPENSION CROSSMEMBER (1510- )AVA4#) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- Europe
- Frame
- AVA42
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- PRODUCT
- JPP
- DESTINATION
- EUR
- Model
- RAV4
- From
- 10.2015
- Gear Shift Type
- A
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Grade Mark
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51201
|
51201
51201-12451 Crossmember Sub-Assy, Front Suspension[10.2015 -] AVA44;AVA42..EUR |
51201-12451 |
US $742.56 |
||
|
51206A
|
51206A
51206-48060 Member Sub-Assy, Rear Suspension[10.2015 -] AVA44;AVA42..EUR |
51206-48060 |
US $765.86 |
||
|
51217A
|
51217A
51107-48020 Reinforcement, Front Suspension Member, Rh[10.2015 -] AVA44;AVA42..EUR |
51107-48020 |
US $83.64 |
||
|
51218A
|
51218A
51108-48020 Reinforcement, Front Suspension Member, Lh[10.2015 -] AVA44;AVA42..EUR |
51108-48020 |
US $80.14 |
||
|
51597A
|
51597A
51597-48010 Bracket, Rear Stabilizer Support, Rh[10.2015 -] AVA44;AVA42..EUR |
51597-48010 |
US $33.20 |
||
|
51598
|
51598
51598-48010 Bracket, Rear Stabilizer Support, Lh[10.2015 -] AVA44;AVA42..EUR |
51598-48010 |
US $34.59 |
||
|
52203A
|
52203A
52203-42020 Cushion Sub-Assy, Body Mounting, Rear Upper[10.2015 -] ZSA42..B..M;ALA49,ZSA44..6FC,B;AVA42,WWA42,ZSA44..EUR;ALA49,ZSA42..(G,X)..(DCRE,EF I);ASA44,AVA44,ZSA44..(6F,6FC,A)..(G,M)..(EFI,HTWC) |
52203-42020 |
US $57.12 |
||
|
52255B
|
52255B
52255-76010 Brace, Front Suspension Member, Front Rh[10.2015 -] ZSA42..B..M;ALA49,ZSA44..6FC,B;AVA42,WWA42,ZSA44..EUR;ALA49,ZSA42..(G,X)..(DCRE,EF I);ASA44,AVA44,ZSA44..(6F,6FC,A)..(G,M)..(EFI,HTWC) |
52255-76010 |
from US $88.08 |
||
|
52257A
|
52257A
52257-48040 Brace, Front Suspension Member, Rear Rh[10.2015 -] AVA44;AVA42..EUR |
52257-48040 |
US $23.07 |
||
|
52258B
|
52258B
52258-48050 Brace, Front Suspension Member, Rear Lh[10.2015 -] AVA44;AVA42..EUR |
52258-48050 |
US $25.14 |
||
|
52295
|
52295
53653-48020 Brace, Rear Suspension Member, Rh[10.2015 -] AVA44;AVA42..EUR |
53653-48020 |
US $25.19 |
||
|
52296
|
52296
53654-48010 Brace, Rear Suspension Member, Lh[10.2015 -] AVA44;AVA42..EUR |
53654-48010 |
US $25.19 |
||
|
57104E
|
57104E
57104-42070 Member Sub-Assy, Front Cross[10.2015 -] ZSA42..B..M;AVA42,ZSA44..EUR;ALA49,ZSA44..6FC,B;ALA49,ZSA42..(G,X)..(DCRE,EFI);ASA 44,AVA44,ZSA44..(6F,6FC,A)..(G,M)..(EFI,HTWC) |
57104-42070 |
from US $355.78 |
||
|
91552L1225
|
91552L1225
91552-L1225 BOLT FLANGE |
91552-L1225 |
from US $1.33 |
||
|
91552L1230
|
91552L1230
91552-L1230 BOLT FLANGE |
91552-L1230 |
US $2.87 |
||
|
91553L1230
|
91553L1230
91553-L1230 New Genuine Part |
91553-L1230 |
US $3.76 |
||
|
91553L1295
|
91553L1295
91553-L1295 BOLT FLANGE |
91553-L1295 |
from US $3.45 |
||
|
9011614014
|
9011614014
90116-14014 New Genuine Part |
90116-14014 |
US $8.42 |
||
|
9011910866
|
9011910866
90119-10866 BOLT WWASHER |
90119-10866 |
from US $0.92 |
||
|
9011912336
|
9011912336
90119-12336 BOLT WWASHER |
90119-12336 |
from US $1.60 |
||
|
9011914098
|
9011914098
90119-14098 BOLT WWASHER |
90119-14098 |
US $7.17 |
||
|
9011914123
|
9011914123
90119-14123 Bolt(For Front Suspension Lower Arm No.2 Rh) |
90119-14123 |
US $5.68 |
||
|
9011914132
|
9011914132
90119-14132 New Genuine Part |
90119-14132 |
US $9.68 |
||
|
9017814006
|
9017814006
90178-14006 NUT FLANGE |
90178-14006 |
US $2.87 |
