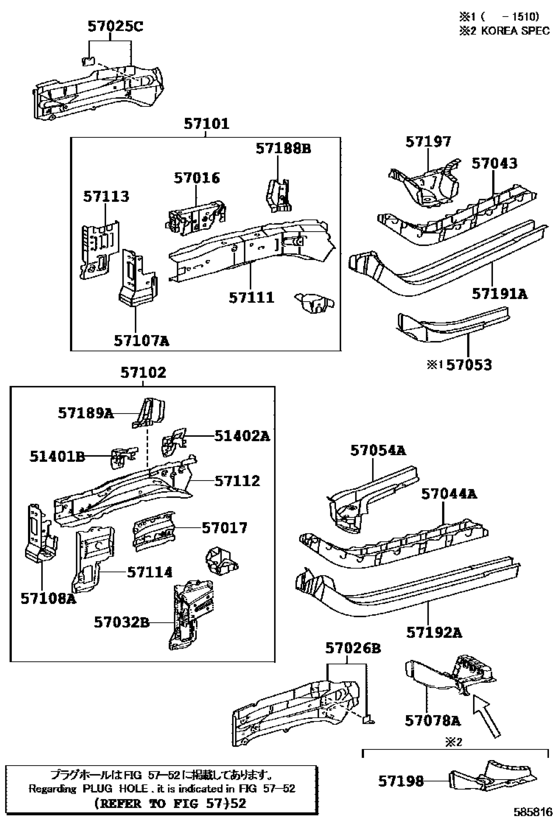

Front Floor Panel & Front Floor Member ([05.2014 - ] (1405- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- AVA44
- grade
- XLE
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- RAV4 (JPP)
- From
- 10.2015
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51401B
|
51401B
51401-42020 Bracket Sub-Assy, Engine Front Mounting[10.2015 -] ASA4#,AVA44 |
51401-42020 |
US $31.30 |
||
|
51402A
|
51402A
51402-42010 Bracket Sub-Assy, Engine Front Mounting, Lh[10.2015 -] ASA4#,AVA44 |
51402-42010 |
US $25.63 |
||
|
57016
|
57016
57016-12110 Reinforcement Sub-Assy, Front Side Member, Rh[10.2015 -] ASA4#,AVA44 |
57016-12110 |
US $44.69 |
||
|
57017
|
57017
57017-12070 Reinforcement Sub-Assy, Front Side Member, Lh[10.2015 -] ASA4#,AVA44 |
57017-12070 |
US $41.34 |
||
|
57025C
|
57025C
57025-12010 Member Sub-Assy, Front Side, Outer Rh[10.2015 -] ASA4#,AVA44 |
57025-12010 |
US $71.28 |
||
| replacement | |||||
|
57025C
|
57025C
51681-12080 Plate, Front Brake Flexible Hose Support, Rh[10.2015 -] ASA4#,AVA44 |
51681-12080 |
US $8.01 |
||
|
57026B
|
57026B
57026-12020 Member Sub-Assy, Front Side, Outer Lh[10.2015 -] ASA4#,AVA44 |
57026-12020 |
US $85 |
||
| replacement | |||||
|
57026B
|
57026B
51682-12080 Plate, Front Brake Flexible Hose Support, Lh[10.2015 -] ASA4#,AVA44 |
51682-12080 |
US $8.01 |
||
|
57032B
|
57032B
57032-78010
Reinforcement Sub-Assy, Front Side Member, No.2 Lh
[10.2015 -] ASA4#,AVA44 |
57032-78010 |
— | ||
|
57043
|
57043
57043-42010 Reinforcement Sub-Assy, Front Side Member, Rear Rh[10.2015 -] ASA4#,AVA44 |
57043-42010 |
US $106.29 |
||
|
57044A
|
57044A
57044-42010 Reinforcement Sub-Assy, Front Side Member, Rear Lh[10.2015 -] ASA4#,AVA44 |
57044-42010 |
US $106.29 |
||
|
57054A
|
57054A
57054-42010 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[10.2015 -] ASA4#,AVA44 |
57054-42010 |
US $74.26 |
||
|
57078A
|
57078A
57078-78010
Box Sub-Assy, Torque, Front Lh
[10.2015 -] ASA4#,AVA44 |
57078-78010 |
— | ||
|
57101
|
57101
57111-42900 Member Sub-Assy, Front Side, Rh[10.2015 -] ASA4#,AVA44 |
57111-42900 |
US $275.18 |
||
|
57102
|
57102
57112-12907
Member Sub-Assy, Front Side, Lh
[10.2015 -] ASA4#,AVA44 |
57112-12907 |
— | ||
|
57107A
|
57107A
57107-42030 Plate Sub-Assy, Front Side Member, No.2 Rh[10.2015 -] ASA4#,AVA44 |
57107-42030 |
US $67.97 |
||
|
57108A
|
57108A
57108-42031 Plate Sub-Assy, Front Side Member, No.2 Lh[10.2015 -] ASA4#,AVA44 |
57108-42031 |
from US $67.32 |
||
|
57111
|
57111
57111-12230 Member, Front Side, Rh[10.2015 -] ASA4#,AVA44 |
57111-12230 |
US $109.20 |
||
|
57112
|
57112
57112-12190 Member, Front Side, Lh[10.2015 -] ASA4#,AVA44 |
57112-12190 |
US $109.20 |
||
|
57113
|
57113
57113-42050 Extension, Front Side Member, Rh[10.2015 -] ASA4#,AVA44 |
57113-42050 |
US $37.84 |
||
|
57188B
|
57188B
57188-42030 Gusset, Front Side Member To Spring Support, Rh[10.2015 -] ASA4#,AVA44 |
57188-42030 |
US $20.09 |
||
|
57189A
|
57189A
57189-42020 Gusset, Front Side Member To Spring Support, Lh[10.2015 -] ASA4#,AVA44 |
57189-42020 |
US $19.36 |
||
|
57191A
|
57191A
57191-42060 Member, Front Side, Inner Rear Rh[10.2015 -] ASA4#,AVA44 |
57191-42060 |
US $160.16 |
||
|
57192A
|
57192A
57192-42060 Member, Front Side, Inner Rear Lh[10.2015 -] ASA4#,AVA44 |
57192-42060 |
US $160.16 |
||
|
57197
|
57197
57197-42060 Box, Torque, Front Rh[10.2015 -] ASA4#,AVA44 |
57197-42060 |
US $46.59 |
||
