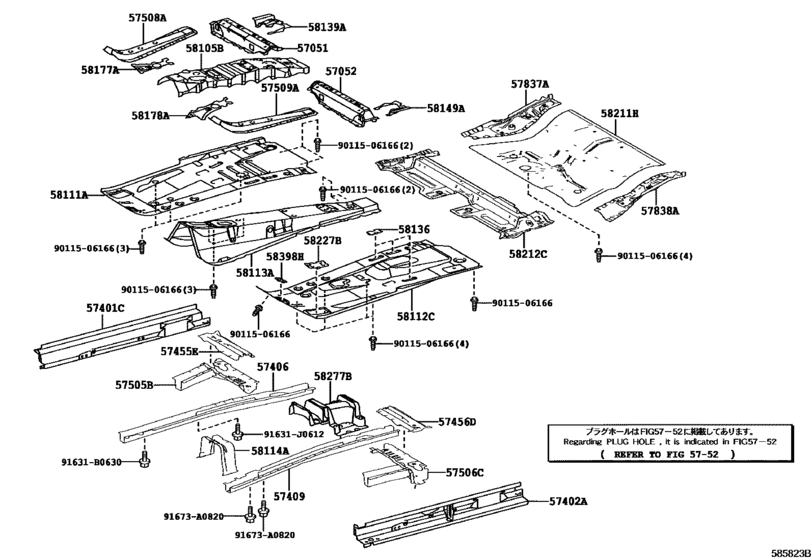

Front Floor Panel & Front Floor Member ([10.2015 - ] (1510- )AVA44) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- AVA44
- grade
- XLE
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- RAV4 (JPP)
- From
- 10.2015
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57051
|
57051
57051-42011 Member Sub-Assy, Front Floor Cross, Rh[10.2015 -] ASA4#,AVA44 |
57051-42011 |
US $65.23 |
||
|
57052
|
57052
57052-42011 Member Sub-Assy, Front Floor Cross, Lh[10.2015 -] ASA4#,AVA44 |
57052-42011 |
US $88.82 |
||
|
57401C
|
57401C
57401-42150 Member Sub-Assy, Main Floor Side, Rh[10.2015 -] ASA4#,AVA44 |
57401-42150 |
US $168.90 |
||
|
57402A
|
57402A
57402-42160
Member Sub-Assy, Floor Side, Inner Lh
[10.2015 -] ASA4#,AVA44 |
57402-42160 |
— | ||
|
57406
|
57406
57406-42011 Member Sub-Assy, Main Floor Side, Rh[10.2015 -] ASA4#,AVA44 |
57406-42011 |
US $109.20 |
||
|
57409
|
57409
57409-42010 Member Sub-Assy, Main Floor Side, Lh[10.2015 -] ASA4#,AVA44 |
57409-42010 |
US $125.22 |
||
|
57455E
|
57455E
57455-42030 Plate, Front Floor Cross Member, No.3 Rh[10.2015 -] ASA4#,AVA44 |
57455-42030 |
US $54.75 |
||
|
57456D
|
57456D
57456-42010
Plate, Front Floor Cross Member, No.3 Lh
[10.2015 -] ASA4#,AVA44 |
57456-42010 |
— | ||
|
57505B
|
57505B
57505-42110 Reinforcement Sub-Assy, Front Floor Under[10.2015 -] ASA4#,AVA44 |
57505-42110 |
US $90.27 |
||
|
57506C
|
57506C
57506-42050 Reinforcement Sub-Assy, Front Floor Under[10.2015 -] ASA4#,AVA44 |
57506-42050 |
US $88.82 |
||
|
57508A
|
57508A
57508-42010 Reinforcement Sub-Assy, Front Floor, Rh[10.2015 -] ASA4#,AVA44 |
57508-42010 |
US $59.55 |
||
|
57509A
|
57509A
57509-42010 Reinforcement Sub-Assy, Front Floor, Lh[10.2015 -] ASA4#,AVA44 |
57509-42010 |
US $59.55 |
||
|
57837A
|
57837A
57837-78010 Reinforcement, Rear No.1 Seat Leg, Rear No.3[10.2015 -] AVA44 |
57837-78010 |
US $69.16 |
||
|
57838A
|
57838A
57838-78010 Reinforcement, Rear No.1 Seat Leg, Rear No.4[10.2015 -] AVA44 |
57838-78010 |
US $69.16 |
||
|
58105B
|
58105B
58105-42013 Panel Sub-Assy, Front Floor Rear Upper Sub[10.2015 -] ASA4#,AVA44 |
58105-42013 |
US $116.48 |
||
|
58111A
|
58111A
58111-42201 Pan, Front Floor, Rh[10.2015 -] ASA4#,AVA44 |
58111-42201 |
US $155.79 |
||
|
58112C
|
58112C
58112-42011 Pan, Front Floor, Lh[10.2015 -] ASA4#,AVA44 |
58112-42011 |
US $155.79 |
||
|
58113A
|
58113A
58113-42012 Panel, Front Floor, Center[10.2015 -] ASA4#,AVA44 |
58113-42012 |
US $279.55 |
||
|
58114A
|
58114A
58114-42041 Reinforcement, Front Floor Panel[10.2015 -] ASA4#,AVA44 |
58114-42041 |
US $20.09 |
||
|
58136
|
58136
58136-42020 Cover, Front Floor Hole[10.2015 -] ASA4#,AVA44 |
58136-42020 |
US $2.91 |
||
|
58139A
|
58139A
58139-42010 Cover, Front Floor Side, Rear[10.2015 -] ASA4#,AVA44 |
58139-42010 |
US $11.94 |
||
|
58149A
|
58149A
58149-42011 Plate, Front Floor Side, Rear Lh[10.2015 -] ASA4#,AVA44 |
58149-42011 |
US $11.94 |
||
|
58177A
|
58177A
58177-42010 Extension, Front Floor Panel, Rh[10.2015 -] ASA4#,AVA44 |
58177-42010 |
US $11.94 |
||
|
58178A
|
58178A
58178-42010 Extention, Front Floor Panel, Lh[10.2015 -] ASA4#,AVA44 |
58178-42010 |
US $15 |
||
|
58211H
|
58211H
58211-78010 Pan, Center Floor[10.2015 -] AVA44 |
58211-78010 |
US $246.06 |
||
|
58212C
|
58212C
58202-78010 Pan Sub-Assy, Center Floor, Front[10.2015 -] AVA44 |
58202-78010 |
US $297.02 |
||
|
58227B
|
58227B
58227-42010 Plate, Front Floor Panel Side, Rh[10.2015 -] ASA4#,AVA44 |
58227-42010 |
US $3.93 |
||
|
58277B
|
58277B
58209-48010 Reinforce Sub-Assy, Drive Shaft Center Support, Rear[10.2015 -] ASA4#,AVA44 |
58209-48010 |
US $90.27 |
||
|
58398H
|
58398H
58398-42010 Cover, Floor Under, No.1[10.2015 -] ASA4#,AVA44 |
58398-42010 |
US $2.91 |
||
|
91631B0630
|
91631B0630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.40 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
91673A0820
|
91673A0820
91673-A0820 BOLT FLANGE |
91673-A0820 |
US $1.28 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
