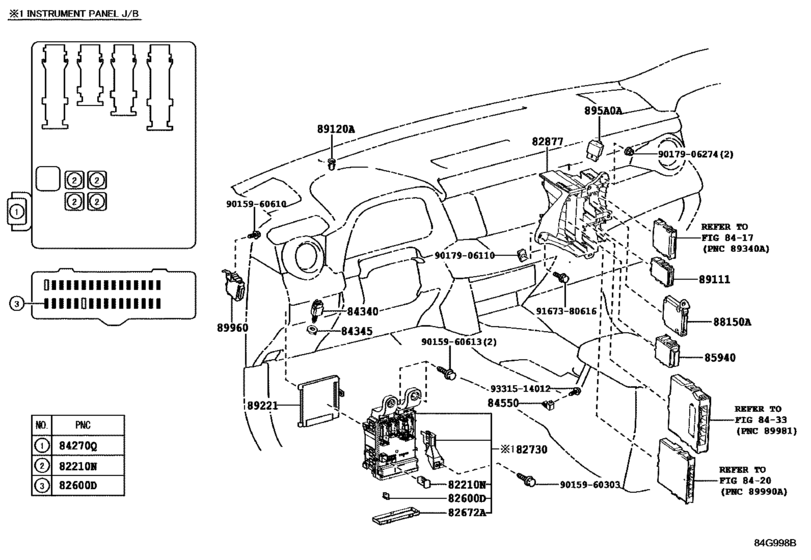

Switch & Relay & Computer ([10.2015 - ] COWL (1510- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- AVA44
- grade
- XLE
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- RAV4 (JPP)
- From
- 10.2015
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210N
|
82210N
90982-08306 Fusible Link[10.2015 -] ASA4#,AVA44 30A,TERMINAL:FEMALE |
90982-08306 |
from US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[10.2015 -] ASA4#,AVA44 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[10.2015 -] ASA4#,AVA44 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[10.2015 -] ASA4#,AVA44 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[10.2015 -] ASA4#,AVA44 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[10.2015 -] ASA4#,AVA44 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[10.2015 -] ASA4#,AVA44 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82672A
|
82672A
82672-42180
Cover, Junction Block
[10.2015 -] ASA4#,AVA44 |
82672-42180 |
— | ||
|
82730
|
82730
82730-42800
Block Assy, Instrument Panel Junction
[10.2015 - 02.2016] ASA4#,AVA44..LIMD,SE,XLE |
82730-42800 |
— | ||
| replacement | |||||
|
82730
|
82730
82730-42801
Block Assy, Instrument Panel Junction
[10.2015 - 02.2016] ASA4#,AVA44..LIMD,SE,XLE |
82730-42801 |
— | ||
|
82730
|
82730
82730-42801
Block Assy, Instrument Panel Junction
[03.2016 -] ASA4#,AVA44..LIMD,SE,XLE |
82730-42801 |
— | ||
|
82877
|
82877
82877-42030
Box, Computer Integration, Rh
[10.2015 -] ASA4#,AVA44 |
82877-42030 |
— | ||
|
84270Q
|
84270Q
90987-02027 Relay[10.2015 -] ASA4#,AVA44 |
90987-02027 |
from US $44.54 |
||
|
84340
|
84340
84340-20060 Switch Assy, Stop Lamp[10.2015 -] AVA44..LIMD,XLE |
84340-20060 |
from US $21.80 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[10.2015 -] ASA4#,AVA44 |
84550-33010 |
from US $18.39 |
||
|
88150A
|
88150A
88150-42020
Computer Assy, Driving Support
[10.2015 - 08.2016] AVA44 PRE-COLLISION SYSTEM-WITH |
88150-42020 |
— | ||
|
88150A
|
88150A
88150-42021
Computer Assy, Driving Support
[08.2016 -] AVA44..USA; AVA44..CND PRE-COLLISION SYSTEM-WITH; AVA44..USA PRE-COLLISION SYSTEM-WITHOUT |
88150-42021 |
— | ||
|
89111
|
89111
89111-42020
Computer, Network Gateway
[10.2015 - 01.2016] ASA4#,AVA44 |
89111-42020 |
— | ||
| replacement | |||||
|
89111
|
89111
89111-42021
Computer, Network Gateway
[10.2015 - 01.2016] ASA4#,AVA44 |
89111-42021 |
— | ||
|
89111
|
89111
89111-42021
Computer, Network Gateway
[02.2016 -] ASA4#,AVA44 |
89111-42021 |
— | ||
|
89120A
|
89120A
89121-50020 Sensor, Automatic Light Control[10.2015 -] ASA4#,AVA44..LIMD,SE,XLE |
89121-50020 |
from US $108.04 |
||
|
89221
|
89221
89220-42G40
Computer, Multiplex Network Body
[10.2015 - 08.2016] AVA44..XLE..USA PUERTO RICO SPEC |
89220-42G40 |
— | ||
|
89221
|
89221
89220-42G50
Computer, Multiplex Network Body
[10.2015 - 08.2016] AVA44..XLE..USA PUERTO RICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR) |
89220-42G50 |
— | ||
|
89221
|
89221
89220-42G70
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#,AVA44..(SE,XLE)..USA; AVA44..XLE..USA PUERTO RICO SPEC; ASA4#,AVA44..(SE,XLE)..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC; AVA44..XLE..USA PUERTO RICO SPEC&W/O(MOON ROOF); AVA44..XLE..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC&W/O(MOON ROOF) |
89220-42G70 |
— | ||
|
89221
|
89221
89220-42G80
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#,AVA44..(SE,XLE)..USA PRE-COLLISION SYSTEM-WITH |
89220-42G80 |
— | ||
|
89221
|
89221
89220-42U40
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#,AVA44..(SE,XLE)..USA POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR) |
89220-42U40 |
— | ||
|
89221
|
89221
89220-42U50
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#,AVA44..LIMD..USA; ASA4#,AVA44..(SE,XLE)..USA PRE-COLLISION SYSTEM-WITH&POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR) |
89220-42U50 |
— | ||
|
89221
|
89221
89220-42U60
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#,AVA44..(SE,XLE)..USA HAWAII SPEC |
89220-42U60 |
— | ||
|
89221
|
89221
89220-42U70
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#,AVA44..(SE,XLE)..USA HAWAII SPEC&PRE-COLLISION SYSTEM-WITH |
89220-42U70 |
— | ||
|
89221
|
89221
89220-42V00
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#,AVA44..(SE,XLE)..USA HAWAII SPEC&POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR) |
89220-42V00 |
— | ||
|
89221
|
89221
89220-42V10
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#,AVA44..LIMD..USA HAWAII SPEC; ASA4#,AVA44..(SE,XLE)..USA HAWAII SPEC&PRE-COLLISION SYSTEM-WITH&POWER DOOR LOCK-WITH(TWO OPERATION+POWER BAC K DOOR) |
89220-42V10 |
— | ||
|
89221
|
89221
89220-42V30
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#,AVA44..(SE,XLE)..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC |
89220-42V30 |
— | ||
|
89221
|
89221
89220-42V50
Computer, Multiplex Network Body
[10.2015 - 08.2016] ASA4#,AVA44..(SE,XLE)..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR ) |
89220-42V50 |
— | ||
|
89221
|
89221
89220-4A490
Computer, Multiplex Network Body
[08.2016 -] AVA44..(SE,XLE)..USA PUERTO RICO SPEC&PRE-COLLISION SYSTEM-WITHOUT |
89220-4A490 |
— | ||
|
89221
|
89221
89220-4A500
Computer, Multiplex Network Body
[08.2016 -] AVA44..(SE,XLE)..USA PUERTO RICO SPEC&PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-WITH(TWO OPERATION+P OWER BACK DOOR); AVA44..SE..USA PUERTO RICO SPEC&PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-W/(TWO OPERATION+HAN DSFREE BACK DOOR) |
89220-4A500 |
— | ||
|
89221
|
89221
89220-4A510
Computer, Multiplex Network Body
[08.2016 -] AVA44..LIMD..USA PUERTO RICO SPEC; AVA44..(SE,XLE)..USA PUERTO RICO SPEC&POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR); AVA44..SE..USA PUERTO RICO SPEC&POWER DOOR LOCK-W/(TWO OPERATION+HANDSFREE BACK DOOR) |
89220-4A510 |
— | ||
|
89221
|
89221
89220-4A520
Computer, Multiplex Network Body
[08.2016 -] ASA4#,AVA44..(SE,XLE)..USA PRE-COLLISION SYSTEM-WITHOUT |
89220-4A520 |
— | ||
|
89221
|
89221
89220-4A530
Computer, Multiplex Network Body
[08.2016 -] ASA4#,AVA44..(SE,XLE)..USA; AVA44..(SE,XLE)..USA PUERTO RICO SPEC; ASA4#,AVA44..(SE,XLE)..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC; AVA44..XLE..USA PUERTO RICO SPEC&W/O(MOON ROOF); AVA44..XLE..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC&W/O(MOON ROOF) |
89220-4A530 |
— | ||
|
89221
|
89221
89220-4A560
Computer, Multiplex Network Body
[08.2016 -] ASA4#,AVA44..(SE,XLE)..USA PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR); AVA44..SE..USA PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-W/(TWO OPERATION+HANDSFREE BACK DOOR); ASA4#..SE PRE-COLLISION SYSTEM-WITH |
89220-4A560 |
— | ||
|
89221
|
89221
89220-4A570
Computer, Multiplex Network Body
[08.2016 -] ASA4#,AVA44..LIMD..USA; ASA4#,AVA44..(SE,XLE)..USA POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR); AVA44..SE..USA POWER DOOR LOCK-W/(TWO OPERATION+HANDSFREE BACK DOOR); ASA4#..SE POWER DOOR LOCK-W/(TWO OPERATION+HANDSFREE BACK DOOR)&KEY P |
89220-4A570 |
— | ||
|
89221
|
89221
89220-4A580
Computer, Multiplex Network Body
[08.2016 -] ASA4#,AVA44..(SE,XLE)..USA HAWAII SPEC&PRE-COLLISION SYSTEM-WITHOUT |
89220-4A580 |
— | ||
|
89221
|
89221
89220-4A590
Computer, Multiplex Network Body
[08.2016 -] ASA4#,AVA44..(SE,XLE)..USA HAWAII SPEC |
89220-4A590 |
— | ||
|
89221
|
89221
89220-4A620
Computer, Multiplex Network Body
[08.2016 -] ASA4#,AVA44..(SE,XLE)..USA HAWAII SPEC&PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR); AVA44..SE..USA HAWAII SPEC&PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-W/(TWO OPERATION+HANDSFRE E BACK DOOR); ASA4#..SE |
89220-4A620 |
— | ||
|
89221
|
89221
89220-4A630
Computer, Multiplex Network Body
[08.2016 -] ASA4#,AVA44..LIMD..USA HAWAII SPEC; ASA4#,AVA44..(SE,XLE)..USA HAWAII SPEC&POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR); AVA44..SE..USA HAWAII SPEC&POWER DOOR LOCK-W/(TWO OPERATION+HANDSFREE BACK DOOR); ASA4#..SE HAWAII SPEC&POWER DOOR |
89220-4A630 |
— | ||
|
89221
|
89221
89220-4A650
Computer, Multiplex Network Body
[08.2016 -] ASA44..XLE;ASA42,AVA44..(SE,XLE)..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC&PRE-COLLISION SYSTEM-WITHOUT |
89220-4A650 |
— | ||
|
89221
|
89221
89220-4A670
Computer, Multiplex Network Body
[08.2016 -] ASA44..XLE;ASA42,AVA44..(SE,XLE)..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC&PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOCK-WITH( TWO OPERATION+POWER BACK DOOR); AVA44..SE..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC&PRE-COLLISION SYSTEM-WITHOUT&POWER DOOR LOC |
89220-4A670 |
— | ||
|
89221
|
89221
89220-4A680
Computer, Multiplex Network Body
[08.2016 -] ASA4#,AVA44..LIMD..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC; ASA44..XLE;ASA42,AVA44..(SE,XLE)..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR ); AVA44..SE..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC&POWER DOOR LOCK- |
89220-4A680 |
— | ||
|
89221
|
89221
89220-4AG50
Computer, Multiplex Network Body
[08.2016 -] AVA44..(SE,XLE)..USA PUERTO RICO SPEC |
89220-4AG50 |
— | ||
|
89221
|
89221
89220-4AG60
Computer, Multiplex Network Body
[08.2016 -] ASA44..XLE;ASA42,AVA44..(SE,XLE)..USA GUAM,SAIPAN,AMERICAN SAMOA SPEC |
89220-4AG60 |
— | ||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.12 |
||
|
9015960610
|
9015960610
90159-60610 New Genuine Part |
90159-60610 |
US $0.73 |
||
|
9015960613
|
9015960613
90159-60613 New Genuine Part |
90159-60613 |
US $0.96 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.44 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
