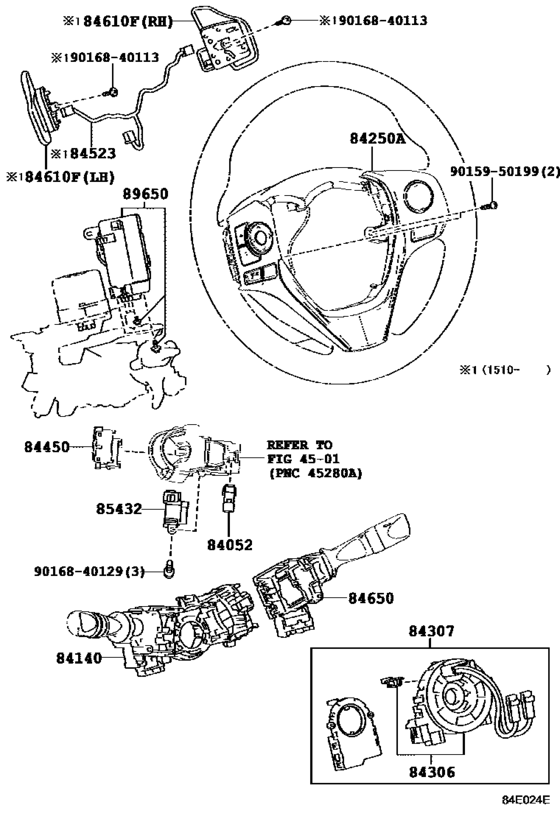

Switch & Relay & Computer ([12.2012 - ] STEERING (1212- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- AVA44
- grade
- XLE
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- RAV4 (JPP)
- From
- 10.2015
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-42140
Switch Assy, Headlamp Dimmer
[10.2015 - 08.2016] ASA4#,AVA44..(SE,XLE)..USA PRE-COLLISION SYSTEM-WITH |
84140-42140 |
— | ||
|
84140
|
84140
84140-42150
Switch Assy, Headlamp Dimmer
[10.2015 - 08.2016] ASA4#,AVA44..(SE,XLE)..USA |
84140-42150 |
— | ||
|
84140
|
84140
84140-42160
Switch Assy, Headlamp Dimmer
[08.2016 -] ASA4#..LE PRE-COLLISION SYSTEM-WITHOUT; AVA44..XLE..USA PRE-COLLISION SYSTEM-WITHOUT&FRONT FOG LAMP-WITHOUT |
84140-42160 |
— | ||
|
84140
|
84140
84140-62020
Switch Assy, Headlamp Dimmer
[08.2016 -] ASA4#..LE; AVA44..XLE..USA FRONT FOG LAMP-WITHOUT |
84140-62020 |
— | ||
|
84250A
|
84250A
84250-42330-C0
Switch Assy, Steering Pad
[10.2015 - 08.2016] ASA4#..SE BLACK,TRIM2#,3#; ASA4#,AVA44..LIMD..USA BLACK,TRIM1#,2#,3#,4#; AVA44..XLE..USA BLACK,TRIM1#,2#,4#; ASA4#..XLE GUAM,SAIPAN,AMERICAN SAMOA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR )&CLEARANCE & BACK SONAR-WITH(FR |
84250-42330-C0 |
— | ||
|
84250A
|
84250A
84250-42340-C0
Switch Assy, Steering Pad
[10.2015 - 08.2016] ASA4#..LE PRE-COLLISION SYSTEM-WITH,BLACK,TRIM2#; ASA4#..SE PRE-COLLISION SYSTEM-WITH,BLACK,TRIM2#,3#; ASA4#,AVA44..LIMD..USA PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#,3#,4#; ASA4#,AVA44..XLE..USA PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1# |
84250-42340-C0 |
— | ||
|
84306
|
84306
84308-53010 Cable Sub-Assy, Spiral[10.2015 -] ASA4#,AVA44..USA |
84308-53010 |
US $211.46 |
||
| replacement | |||||
|
84306
|
84306
84308-53011 NR CABLE SET SPIRAL[10.2015 -] ASA4#,AVA44..USA |
84308-53011 |
from US $171.36 |
||
|
84307
|
84307
84307-42050 Cable Sub-Assy, Spiral W/sensor[10.2015 -] ASA4#,AVA44..USA |
84307-42050 |
US $486.04 |
||
| replacement | |||||
|
84307
|
84307
84307-42051 CABLE SUB-ASSY, SPIRAL[10.2015 -] ASA4#,AVA44..USA |
84307-42051 |
from US $430.74 |
||
|
84650
|
84650
84652-42160
Switch Assy, Windshield Wiper
[10.2015 -] ASA4#,AVA44..(LIMD,SE,XLE)..USA |
84652-42160 |
— | ||
|
89650
|
89650
89650-42290
Computer Assy, Power Steering
[10.2015 - 08.2016] AVA44 |
89650-42290 |
— | ||
|
89650
|
89650
89650-42291
Computer Assy, Power Steering
[08.2016 -] AVA44 |
89650-42291 |
— | ||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
|
9016840113
|
9016840113
90168-40113 Screw, Steering Wheel Pad Attaching |
90168-40113 |
US $0.96 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
