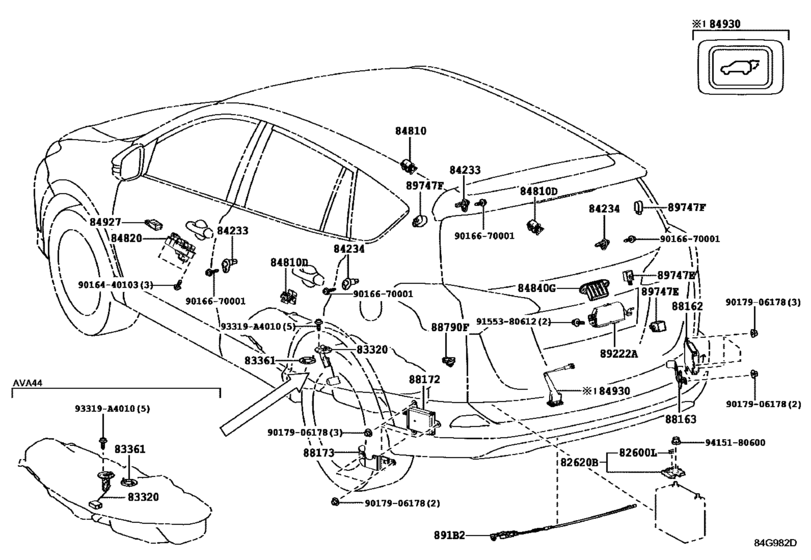

Switch & Relay & Computer ([10.2015 - ] DOOR,ROOF,FLOOR & BACK DOOR (1510- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- AVA44
- grade
- XLE
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- RAV4 (JPP)
- From
- 10.2015
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600L
|
82600L
90982-09020 Fusible Link[10.2015 -] AVA44 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82620B
|
82620B
82620-30300 Block Assy, Fusible Link[10.2015 -] AVA44 |
82620-30300 |
from US $10.31 |
||
|
83320
|
83320
83320-49255 Gage Assy, Fuel Sender[10.2015 -] AVA44 |
83320-49255 |
US $60.72 |
||
|
83361
|
83361
77169-14020 Gasket, Fuel Tank Vent[10.2015 -] ASA4#,AVA44 |
77169-14020 |
from US $5.28 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[10.2015 -] ASA4#,AVA44 |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[10.2015 -] ASA4#,AVA44 |
84231-60070 |
from US $10.56 |
||
|
84810
|
84810
84810-52030 Switch Assy, Power Window Regulator[10.2015 -] ASA4#,AVA44 |
84810-52030 |
from US $37.54 |
||
|
84810D
|
84810D
84810-52030 Switch Assy, Power Window Regulator[10.2015 -] ASA4#,AVA44 |
84810-52030 |
from US $37.54 |
||
|
84820
|
84820
84820-42210 Master Switch Assy, Power Window Regulator[10.2015 -] ASA4#,AVA44..LIMD,SE,XLE |
84820-42210 |
US $323.08 |
||
|
84840G
|
84840G
84840-48020 Switch Assy, Back Door Opener[10.2015 -] AVA44;ASA4#..LIMD; ASA4#..SE POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART; ASA4#..XLE KEY PLATE-MASTER 2 FOR SMART |
84840-48020 |
from US $49.15 |
||
|
84930
|
84930
84930-42040 Switch Assy, Door Control[10.2015 -] ASA4#,AVA44..LIMD; ASA42..LIMD POWER DOOR LOCK-WITH(TWO OPERATION); ASA4#,AVA44..SE,XLE POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR) |
84930-42040 |
US $44.05 |
||
|
88162
|
88162
88162-0W380
Sensor, Blind Spot Monitor, Rh
[10.2015 - 08.2016] ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR+CTW) |
88162-0W380 |
— | ||
|
88162
|
88162
88162-0W381
Sensor, Blind Spot Monitor, Rh
[08.2016 -] ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR+CTW) |
88162-0W381 |
— | ||
|
88163
|
88163
88163-42010
Cover, Blind Spot Monitor, Rh
[10.2015 -] ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR+CTW) |
88163-42010 |
— | ||
|
88172
|
88172
88162-0W380
Sensor, Blind Spot Monitor, Rh
[10.2015 - 08.2016] ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR+CTW) |
88162-0W380 |
— | ||
|
88172
|
88172
88162-0W381
Sensor, Blind Spot Monitor, Rh
[08.2016 -] ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR+CTW) |
88162-0W381 |
— | ||
|
88173
|
88173
88173-42010
Cover, Blind Spot Monitor, Lh
[10.2015 -] ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR+CTW) |
88173-42010 |
— | ||
|
88790F
|
88790F
88790-22131 Thermistor, Cooler[10.2015 -] AVA44 |
88790-22131 |
US $33.55 |
||
|
89222A
|
89222A
89222-42040
Computer, Multiplex Network Door
[10.2015 - 03.2016] ASA4#,AVA44..LIMD; ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION); ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION)&HEAD LAMP-LED; ASA4#,AVA44..SE,XLE POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR) |
89222-42040 |
— | ||
| replacement | |||||
|
89222A
|
89222A
89222-42041 Computer, Multiplex Network Door[10.2015 - 03.2016] ASA4#,AVA44..LIMD; ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION); ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION)&HEAD LAMP-LED; ASA4#,AVA44..SE,XLE POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR) |
89222-42041 |
US $220.70 |
||
|
89222A
|
89222A
89222-42041 Computer, Multiplex Network Door[03.2016 - 08.2016] ASA4#,AVA44..LIMD; ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION); ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION)&HEAD LAMP-LED; ASA4#,AVA44..SE,XLE POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR) |
89222-42041 |
US $220.70 |
||
|
89222A
|
89222A
89222-42090
Computer, Multiplex Network Door
[08.2016 -] ASA4#,AVA44..LIMD; ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION); ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION)&HEAD LAMP-LED; ASA4#,AVA44..SE,XLE POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR); AVA44..SE POWER D |
89222-42090 |
— | ||
|
89747E
|
89747E
89747-30040 Buzzer, Wireless Door Lock[10.2015 -] ASA4#,AVA44..LIMD; ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION); ASA42..LIMD KOREA SPEC&POWER DOOR LOCK-WITH(TWO OPERATION)&HEAD LAMP-LED; ASA4#,AVA44..SE,XLE POWER DOOR LOCK-WITH(TWO OPERATION+POWER BACK DOOR) |
89747-30040 |
from US $44.08 |
||
|
89747F
|
89747F
89747-52010 Buzzer, Wireless Door Lock[10.2015 -] ASA4#,AVA44..LIMD,SE,XLE LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR+CTW) |
89747-52010 |
from US $29.60 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.72 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.84 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.72 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
