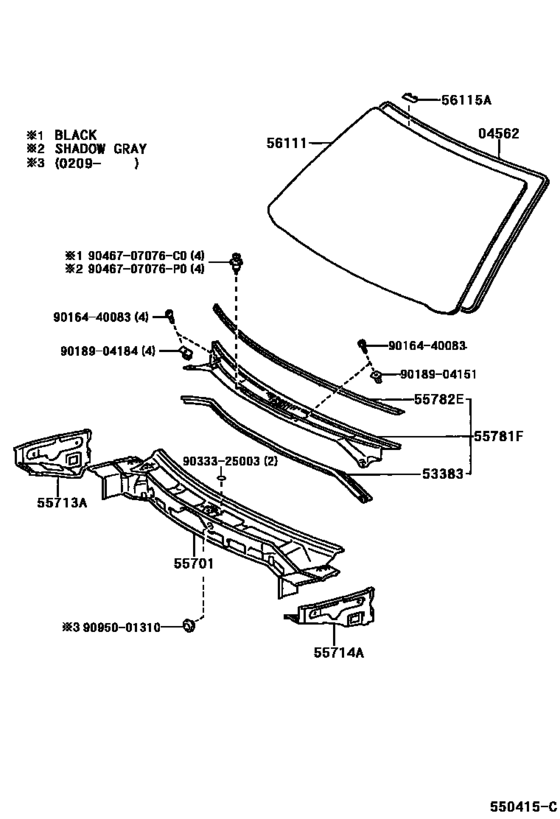

Cowl Panel & Windshield Glass ([09.1997 - ] (9709- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1997 - 1999
- Sales region
- U.S.A.
- Frame
- BEA11
- grade
- CON
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 09.1997
- To
- 11.1999
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
04562-12010 Dam Kit, Windshield Glass[09.1997 - 11.1999] BEA11 |
04562-12010 |
from US $31.92 |
||
|
53383
|
53383
53383-42010
Seal, Hood To Cowl Top
[09.1997 - 11.1999] BEA11 |
53383-42010 |
— | ||
|
55701
|
55701
55700-42230 Panel Sub-Assy, CowlCOWL [09.1997 - 11.1999] BEA11 |
55700-42230 |
US $451.36 |
||
|
55713A
|
55713A
55713-42030 Panel, Cowl Top Side, RhCOWL TOP SIDE, RH [09.1997 - 11.1999] BEA11..CON |
55713-42030 |
US $53 |
||
|
55714A
|
55714A
55714-42011 Panel, Cowl Top Side, Lh[09.1997 - 11.1999] BEA11 |
55714-42011 |
US $35.24 |
||
|
55781F
|
55781F
55708-42040
Louver, Cowl Top Ventilator
[09.1997 - 11.1999] BEA11 |
55708-42040 |
— | ||
|
55782E
|
55782E
55782-42020
Protector, Cowl Top Ventilator Louver
[09.1997 - 11.1999] BEA11 |
55782-42020 |
— | ||
| replacement | |||||
|
55782E
|
55782E
55782-42010
Protector, Cowl Top Ventilator Louver
[09.1997 - 11.1999] BEA11 |
55782-42010 |
— | ||
|
56111
|
56111
56111-42090
Glass, Windshield
[09.1997 - 11.1999] BEA11 *TL,T=4.76,GREEN |
56111-42090 |
— | ||
|
56115A
|
56115A
56115-20080 Stopper, Windshield Glass, No.1[09.1997 - 11.1999] BEA11 |
56115-20080 |
US $10.72 |
||
|
9016440083
|
9016440083
90164-40083 SCREW BINDING TAPP |
90164-40083 |
US $0.79 |
||
|
9018904151
|
9018904151
90189-04151 New Genuine Part |
90189-04151 |
US $1.75 |
||
|
9018904184
|
9018904184
90189-04184 GROMMET SCREW |
90189-04184 |
US $2.08 |
||
|
9033325003
|
9033325003
90333-25003 Plug, Hole(For Hood) |
90333-25003 |
from US $1.12 |
||
|
9046707076C0
|
9046707076C0
90467-07076-C0 Clip, Radiator Grille |
90467-07076-C0 |
from US $0.99 |
||
|
9046707076P0
|
9046707076P0
90467-07076-P0 Clip(For Quarter Trim Rear Lower Cover) |
90467-07076-P0 |
from US $1.60 |
||
| replacement | |||||
|
9046707076P0
|
9046707076P0
90467-07076-C0 Clip, Radiator Grille |
90467-07076-C0 |
from US $0.99 |
||
|
9095001310
|
9095001310
90950-01310 Plug, Hole |
90950-01310 |
US $7.68 |
||
