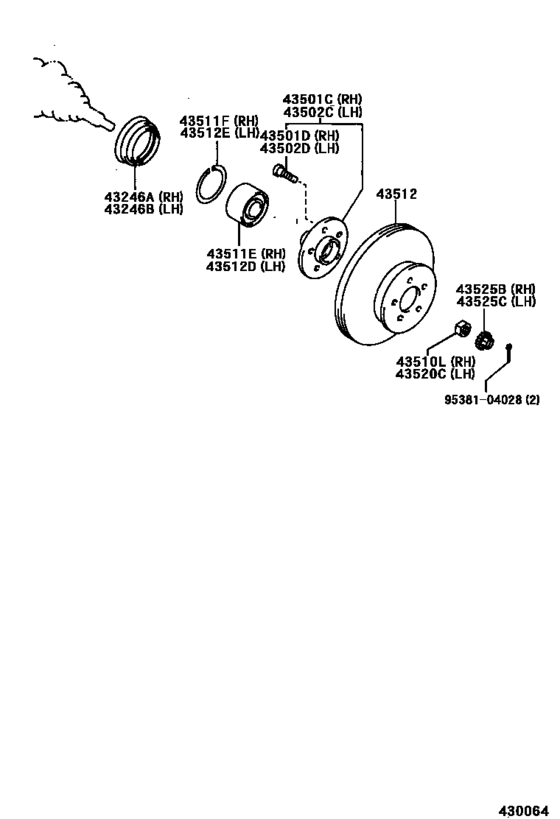

Front Axle Hub ([09.1997 - ] (9709- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1997 - 1999
- Sales region
- U.S.A.
- Frame
- BEA11
- grade
- CON
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 09.1997
- To
- 11.1999
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43246A
|
43246A
43246-32020 Deflector, Front Wheel Bearing Dust, No.1 Rh[09.1997 - 11.1999] BEA11 |
43246-32020 |
from US $11.51 |
||
|
43246B
|
43246B
43246-32020 Deflector, Front Wheel Bearing Dust, No.1 Rh[09.1997 - 11.1999] BEA11 |
43246-32020 |
from US $11.51 |
||
|
43501C
|
43501C
43502-44010 Hub Sub-Assy, Front Axle, Rh[09.1997 - 11.1999] BEA11 |
43502-44010 |
US $154.34 |
||
|
43501D
|
43501D
90942-02070 Bolt, Hub[09.1997 - 11.1999] BEA11 |
90942-02070 |
US $3.67 |
||
| replacements | |||||
|
43501D
|
43501D
90942-02049 Bolt, Hub[09.1997 - 11.1999] BEA11 |
90942-02049 |
US $3.84 |
||
|
43501D
|
43501D
90942-02082 Bolt, Hub[09.1997 - 11.1999] BEA11 |
90942-02082 |
from US $2.46 |
||
|
43502C
|
43502C
43502-44010 Hub Sub-Assy, Front Axle, Rh[09.1997 - 11.1999] BEA11 |
43502-44010 |
US $154.34 |
||
|
43502D
|
43502D
90942-02070 Bolt, Hub[09.1997 - 11.1999] BEA11 |
90942-02070 |
US $3.67 |
||
| replacements | |||||
|
43502D
|
43502D
90942-02049 Bolt, Hub[09.1997 - 11.1999] BEA11 |
90942-02049 |
US $3.84 |
||
|
43502D
|
43502D
90942-02082 Bolt, Hub[09.1997 - 11.1999] BEA11 |
90942-02082 |
from US $2.46 |
||
|
43510L
|
43510L
90178-22001 Nut (For Axle Shaft)[12.1997 - 11.1999] BEA11 |
90178-22001 |
from US $2.15 |
||
|
43510L
|
43510L
90179-22020 Nut (For Rear Axle Shaft)[09.1997 - 12.1997] BEA11 |
90179-22020 |
US $4.96 |
||
|
43511E
|
43511E
90369-43009 Bearing (For Front Axle Hub)[09.1997 - 11.1999] BEA11 |
90369-43009 |
from US $70.53 |
||
|
43511F
|
43511F
90521-88001 Ring, Snap (For Rear Axle Shaft)[09.1997 - 11.1999] BEA11 |
90521-88001 |
from US $3.68 |
||
|
43512
|
43512
43512-42020 Disc, Front[09.1997 - 11.1999] BEA11 |
43512-42020 |
US $167.44 |
||
| replacement | |||||
|
43512
|
43512
43512-42010 Disc, Front[09.1997 - 11.1999] BEA11 |
43512-42010 |
US $170.35 |
||
|
43512D
|
43512D
90369-43009 Bearing (For Front Axle Hub)[09.1997 - 11.1999] BEA11 |
90369-43009 |
from US $70.53 |
||
|
43512E
|
43512E
90521-88001 Ring, Snap (For Rear Axle Shaft)[09.1997 - 11.1999] BEA11 |
90521-88001 |
from US $3.68 |
||
|
43520C
|
43520C
90178-22001 Nut (For Axle Shaft)[12.1997 - 11.1999] BEA11 |
90178-22001 |
from US $2.15 |
||
|
43520C
|
43520C
90179-22020 Nut (For Rear Axle Shaft)[09.1997 - 12.1997] BEA11 |
90179-22020 |
US $4.96 |
||
|
43525B
|
43525B
43525-20030 Cap, Front Wheel Adjusting Lock[09.1997 - 11.1999] BEA11 |
43525-20030 |
from US $2.91 |
||
|
43525C
|
43525C
43525-20030 Cap, Front Wheel Adjusting Lock[09.1997 - 11.1999] BEA11 |
43525-20030 |
from US $2.91 |
||
|
9538104028
|
9538104028
95381-04028 PIN |
95381-04028 |
US $1.92 |
||
