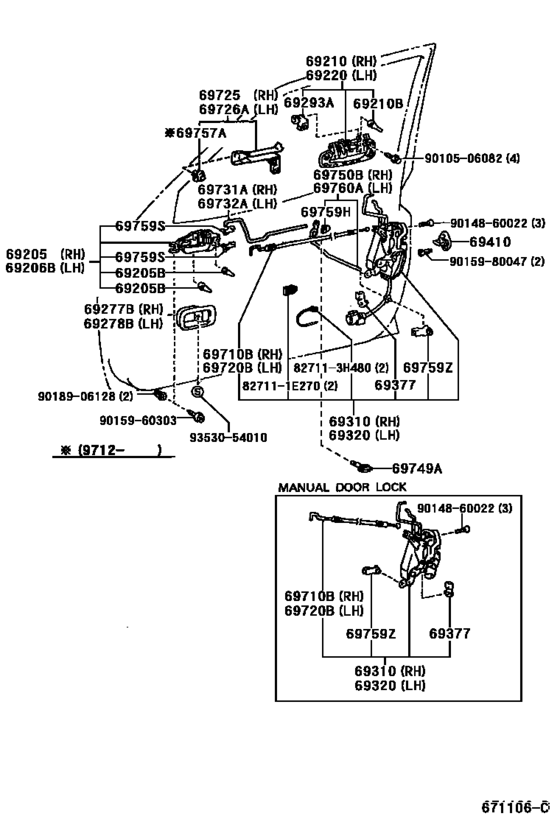

Front Door Lock & Handle ([09.1997 - ] (9709- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1997 - 1999
- Sales region
- U.S.A.
- Frame
- BEA11
- grade
- CON
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 09.1997
- To
- 11.1999
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-42020-B1
Handle Sub-Assy, Front Door Inside, Rh
[09.1997 -] BEA11 SHADOW GRAY,TRIM1# |
69205-42020-B1 |
— | ||
|
69205B
|
69205B
90541-04018 Cushion(For Front Door Inside Handle)[09.1997 - 11.1999] BEA11 D=8.5 |
90541-04018 |
US $2.56 |
||
|
69205B
|
69205B
90541-04020 Cushion(For Front Door Inside Handle)[09.1997 - 11.1999] BEA11 D=12 |
90541-04020 |
US $2.62 |
||
|
69206B
|
69206B
69206-42020-B1 Handle Sub-Assy, Front Door Inside, Lh[09.1997 -] BEA11 SHADOW GRAY,TRIM1# |
69206-42020-B1 |
US $41.06 |
||
|
69210
|
69210
69210-12270-A2 Handle Assy, Front Door, Outside Rh[09.1997 - 10.1998] BEA11 WHITE,056 |
69210-12270-A2 |
US $90.27 |
||
| replacement | |||||
|
69210
|
69210
69210-12270-A0 Handle Assy, Front Door, Outside Rh[09.1997 - 10.1998] BEA11 WHITE,056 |
69210-12270-A0 |
US $90.27 |
||
|
69210
|
69210
69210-12270-B0 Handle Assy, Front Door, Outside Rh[09.1997 - 10.1998] BEA11 SILVER ME,199 |
69210-12270-B0 |
US $90.27 |
||
|
69210
|
69210
69210-12270-D3 Handle Assy, Front Door, Outside Rh[09.1997 - 10.1998] BEA11 WINE RED MC,3J8 |
69210-12270-D3 |
US $90.27 |
||
|
69210
|
69210
69210-12270-G7 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [09.1997 - 10.1998] BEA11 DK.GREEN M.M.,6P3 |
69210-12270-G7 |
US $90.27 |
||
|
69210
|
69210
69210-12270-J6 Handle Assy, Front Door, Outside Rh[09.1997 - 10.1998] BEA11 BLUE M.M.,8L5 |
69210-12270-J6 |
US $90.27 |
||
|
69210
|
69210
69210-42080-A0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [10.1998 - 08.2000] BEA11 WHITE,056 |
69210-42080-A0 |
US $90.27 |
||
|
69210
|
69210
69210-42080-B1 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [10.1998 - 08.2000] BEA11 SILVER ME,199 |
69210-42080-B1 |
US $90.27 |
||
|
69210
|
69210
69210-42080-D0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [10.1998 - 03.2000] BEA11 RED MC.,3M8 |
69210-42080-D0 |
US $90.27 |
||
|
69210
|
69210
69210-42080-G0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [10.1998 - 03.2000] BEA11 DK.GREEN M.M.,6P3 |
69210-42080-G0 |
US $90.27 |
||
|
69210
|
69210
69210-42080-J0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [10.1998 - 03.2000] BEA11 BLUE M.M.,8L5 |
69210-42080-J0 |
US $90.27 |
||
|
69210B
|
69210B
90541-04014 Cushion, Console Box[09.1997 - 11.1999] BEA11 |
90541-04014 |
from US $1.13 |
||
|
69220
|
69220
69220-12270-A2 Handle Assy, Front Door Outside, Lh[09.1997 - 10.1998] BEA11 WHITE,056 |
69220-12270-A2 |
US $90.27 |
||
| replacement | |||||
|
69220
|
69220
69220-12270-A0 Handle Assy, Front Door Outside, Lh[09.1997 - 10.1998] BEA11 WHITE,056 |
69220-12270-A0 |
US $90.27 |
||
|
69220
|
69220
69220-12270-B0 Handle Assy, Front Door Outside, Lh[09.1997 - 10.1998] BEA11 SILVER ME,199 |
69220-12270-B0 |
US $90.27 |
||
|
69220
|
69220
69220-12270-D3 Handle Assy, Front Door Outside, Lh[09.1997 - 10.1998] BEA11 WINE RED MC,3J8 |
69220-12270-D3 |
US $90.27 |
||
|
69220
|
69220
69220-12270-G7 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [09.1997 - 10.1998] BEA11 DK.GREEN M.M.,6P3 |
69220-12270-G7 |
US $90.27 |
||
|
69220
|
69220
69220-12270-J6 Handle Assy, Front Door Outside, Lh[09.1997 - 10.1998] BEA11 BLUE M.M.,8L5 |
69220-12270-J6 |
US $90.27 |
||
|
69220
|
69220
69220-42080-A0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [10.1998 - 08.2000] BEA11 WHITE,056 |
69220-42080-A0 |
US $90.27 |
||
| replacement | |||||
|
69220
|
69220
69220-42080-A2 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [10.1998 - 08.2000] BEA11 WHITE,056 |
69220-42080-A2 |
US $90.27 |
||
|
69220
|
69220
69220-42080-B1 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [10.1998 - 08.2000] BEA11 SILVER ME,199 |
69220-42080-B1 |
US $90.27 |
||
|
69220
|
69220
69220-42080-D0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [10.1998 - 03.2000] BEA11 RED MC.,3M8 |
69220-42080-D0 |
US $90.27 |
||
|
69220
|
69220
69220-42080-G0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [10.1998 - 03.2000] BEA11 DK.GREEN M.M.,6P3 |
69220-42080-G0 |
US $90.27 |
||
|
69220
|
69220
69220-42080-J0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [10.1998 - 03.2000] BEA11 BLUE M.M.,8L5 |
69220-42080-J0 |
US $90.27 |
||
|
69277B
|
69277B
69277-22070-B1
Bezel, Front Door Inside Handle, Rh
[09.1997 -] BEA11 SHADOW GRAY,TRIM1# |
69277-22070-B1 |
— | ||
| replacement | |||||
|
69277B
|
69277B
69277-22070-B0 Bezel, Front Door Inside Handle, Rh[09.1997 -] BEA11 SHADOW GRAY,TRIM1# |
69277-22070-B0 |
from US $9.26 |
||
|
69278B
|
69278B
69278-22030-B1 Bezel, Front Door Inside Handle, Lh[09.1997 -] BEA11 SHADOW GRAY,TRIM1# |
69278-22030-B1 |
from US $9.26 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[09.1997 - 11.1999] BEA11 RH |
69293-12030 |
from US $2.09 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[09.1997 - 11.1999] BEA11 LH |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69030-42061 Lock Assy, Front Door, RhFRONT DOOR, RH [09.1997 - 11.1999] BEA11 W(POWER DOOR LOCK) |
69030-42061 |
US $256.26 |
||
|
69310
|
69310
69310-42041 Lock Assy, Front Door, RhFRONT DOOR, RH [09.1997 - 11.1999] BEA11 |
69310-42041 |
US $131.04 |
||
|
69320
|
69320
69040-42061
Lock Assy, Front Door, Lh
[09.1997 - 11.1999] BEA11 W(POWER DOOR LOCK) |
69040-42061 |
— | ||
|
69320
|
69320
69320-42041 Lock Assy, Front Door, LhFRONT DOOR, LH [09.1997 - 11.1999] BEA11 |
69320-42041 |
US $131.04 |
||
|
69377
|
69377
69759-24010 Snap(For Rear Door Inside Handle)[09.1997 - 11.1999] BEA11 RH,NATURAL |
69759-24010 |
from US $2.22 |
||
|
69377
|
69377
69759-24020 Snap(For Rear Door Inside Handle)[09.1997 - 11.1999] BEA11 LH,BLUE |
69759-24020 |
from US $2.88 |
||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[09.1997 - 11.1999] BEA11 |
69410-87001 |
US $11.36 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[09.1997 - 11.1999] BEA11 |
69410-AA020 |
US $37.29 |
||
|
69710B
|
69710B
69710-42020
Cable Assy, Front Door Lock Remote Control, Rh
[09.1997 - 11.1999] BEA11 |
69710-42020 |
— | ||
|
69720B
|
69720B
69710-42020
Cable Assy, Front Door Lock Remote Control, Rh
[09.1997 - 11.1999] BEA11 |
69710-42020 |
— | ||
|
69725
|
69725
69725-42020 Protector, Front Door Inside Locking Link, RhFRONT DOOR INSIDE LOCKING LINK, RH [09.1997 - 12.1997] BEA11 |
69725-42020 |
US $13.69 |
||
| replacement | |||||
|
69725
|
69725
69725-42021 Protector, Front Door Inside Locking Link, RhFRONT DOOR INSIDE LOCKING LINK, RH [09.1997 - 12.1997] BEA11 |
69725-42021 |
US $14.12 |
||
|
69725
|
69725
69725-42021 Protector, Front Door Inside Locking Link, RhFRONT DOOR INSIDE LOCKING LINK, RH [12.1997 - 11.1999] BEA11 |
69725-42021 |
US $14.12 |
||
|
69726A
|
69726A
69726-42020 Protecter, Front Door Inside Locking Link, LhFRONT DOOR INSIDE LOCKING LINK, LH [09.1997 - 12.1997] BEA11 |
69726-42020 |
US $13.69 |
||
| replacement | |||||
|
69726A
|
69726A
69726-42021 Protecter, Front Door Inside Locking Link, LhFRONT DOOR INSIDE LOCKING LINK, LH [09.1997 - 12.1997] BEA11 |
69726-42021 |
US $14.12 |
||
|
69726A
|
69726A
69726-42021 Protecter, Front Door Inside Locking Link, LhFRONT DOOR INSIDE LOCKING LINK, LH [12.1997 - 11.1999] BEA11 |
69726-42021 |
US $14.12 |
||
|
69731A
|
69731A
69731-42040 Link, Front Door Inside Locking, No.1 Rh[09.1997 - 11.1999] BEA11 |
69731-42040 |
US $9.17 |
||
|
69732A
|
69732A
69732-42040 Link, Front Door Inside Locking, No.1 Lh[09.1997 - 11.1999] BEA11 |
69732-42040 |
US $9.17 |
||
|
69749A
|
69749A
90467-06106 Clamp, Front Door Lock Link[09.1997 - 11.1999] BEA11 |
90467-06106 |
US $0.96 |
||
|
69750B
|
69750B
69750-42020 Link Assy, Front Door Inside Locking, Rh[09.1997 - 11.1999] BEA11 |
69750-42020 |
US $12.23 |
||
|
69757A
|
69757A
69757-42010 Clamp, Door Lock Control BellcrankDOOR LOCK CONTROL BELLCRANK [12.1997 - 11.1999] BEA11 |
69757-42010 |
US $1.89 |
||
|
69759H
|
69759H
69759-20410 Snap, Front Door Lock Control Rod[09.1997 - 11.1999] BEA11 |
69759-20410 |
US $3.93 |
||
|
69759S
|
69759S
69759-14050 Snap(For Rear Door Inside Handle)[09.1997 - 11.1999] BEA11 LH,PINK |
69759-14050 |
from US $2.24 |
||
|
69759S
|
69759S
69759-24070 Snap(For Rear Door Inside Handle)[09.1997 - 11.1999] BEA11 RH,YELLOW |
69759-24070 |
US $2.88 |
||
|
69759Z
|
69759Z
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[09.1997 - 11.1999] BEA11 LH,GREEN |
69759-24050 |
from US $3.84 |
||
|
69759Z
|
69759Z
69759-24060 Snap(For Rear Door Lock)[09.1997 - 11.1999] BEA11 RH,GRAY |
69759-24060 |
from US $4.64 |
||
|
69760A
|
69760A
69760-42020 Link Assy, Front Door Inside Locking, Lh[09.1997 - 11.1999] BEA11 |
69760-42020 |
US $12.23 |
||
|
827111E270
|
827111E270
82711-1E270 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1E270 |
US $3.35 |
||
|
827113H480
|
827113H480
82711-3H480
Clamp, Headlamp Cleaner, No.1
|
82711-3H480 |
— | ||
| replacement | |||||
|
827113H480
|
827113H480
82711-16830 Clamp, Headlamp Cleaner, No.1 |
82711-16830 |
US $1.60 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9015980047
|
9015980047
90159-80047
New Genuine Part
|
90159-80047 |
— | ||
|
9018906128
|
9018906128
90189-06128 GROMMET SCREW |
90189-06128 |
US $1.28 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.80 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
