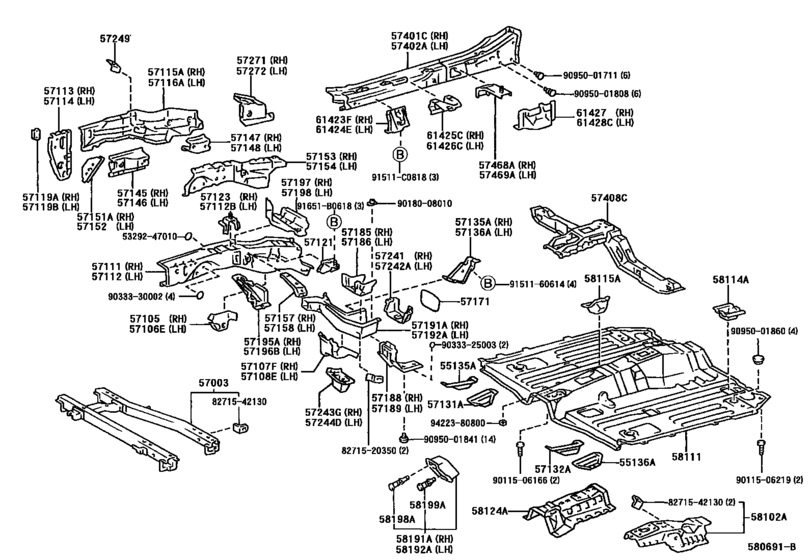

Front Floor Panel & Front Floor Member ([09.1997 - ] (9709- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1997 - 1999
- Sales region
- U.S.A.
- Frame
- BEA11
- grade
- CON
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 09.1997
- To
- 11.1999
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55135A
|
55135A
55135-42010
Bracket, Toe Board, Rh
[09.1997 - 11.1999] BEA11 |
55135-42010 |
— | ||
|
55136A
|
55136A
55136-42010
Bracket, Toe Board, Lh
[09.1997 - 11.1999] BEA11 |
55136-42010 |
— | ||
|
57003
|
57003
57003-42020 Member Sub-Assy, Front Side, RhFRONT SIDE, RH [09.1997 - 11.1999] BEA11 |
57003-42020 |
US $419.33 |
||
|
57105
|
57105
57105-42020 Bracket Sub-Assy, Front Suspension Member Mounting, Front RhFRONT SUSPENSION MEMBER MOUNTING, FRONT RH [09.1997 - 11.1999] BEA11 |
57105-42020 |
US $39.46 |
||
|
57106E
|
57106E
57106-42011 Retainer Sub-Assy, Suspension Member, Inner[09.1997 - 11.1999] BEA11 |
57106-42011 |
US $61.88 |
||
|
57107F
|
57107F
57107-42010 Bracket Sub-Assy, Front Suspension Member Mounting, Front RhFRONT SUSPENSION MEMBER MOUNTING, FRONT RH [09.1997 - 11.1999] BEA11 |
57107-42010 |
US $36.25 |
||
|
57108E
|
57108E
57108-42010 Bracket Sub-Assy, Front Suspension Member Mounting, Front LhFRONT SUSPENSION MEMBER MOUNTING, FRONT LH [09.1997 - 11.1999] BEA11 |
57108-42010 |
US $36.25 |
||
|
57111
|
57111
57111-42040 Member, Front Side, RhFRONT SIDE, RH [09.1997 - 11.1999] BEA11 |
57111-42040 |
US $177.63 |
||
|
57112
|
57112
57112-42040 Member, Front Side, LhFRONT SIDE, LH [09.1997 - 11.1999] BEA11 |
57112-42040 |
US $177.63 |
||
|
57112B
|
57112B
57122-42020 Bracket Sub-Assy, Strut Bar, LhSTRUT BAR, LH [09.1997 - 11.1999] BEA11 |
57122-42020 |
US $9.90 |
||
|
57113
|
57113
57113-42030 Extension, Front Side Member, RhFRONT SIDE MEMBER, RH [09.1997 - 11.1999] BEA11 |
57113-42030 |
US $24.17 |
||
|
57114
|
57114
57114-42030 Extension, Front Side Member, LhFRONT SIDE MEMBER, LH [09.1997 - 11.1999] BEA11 |
57114-42030 |
US $24.17 |
||
|
57115A
|
57115A
57115-42011 Plate, Front Side Member, Outer Rh[09.1997 - 11.1999] BEA11 |
57115-42011 |
US $88.82 |
||
|
57116A
|
57116A
57116-42011 Plate, Front Side Member, Outer Lh[09.1997 - 11.1999] BEA11 |
57116-42011 |
US $88.82 |
||
|
57119A
|
57119A
57119-42010
Plate, Front Side Member, Front Rh
[09.1997 - 11.1999] BEA11 |
57119-42010 |
— | ||
|
57119B
|
57119B
57119-42010
Plate, Front Side Member, Front Rh
[09.1997 - 11.1999] BEA11 |
57119-42010 |
— | ||
|
57121
|
57121
57121-42020 Bracket, Front Body Mounting, RhFRONT BODY MOUNTING, RH [09.1997 - 11.1999] BEA11 |
57121-42020 |
US $12.67 |
||
|
57123
|
57123
57123-42020 Support, Front Side Member, RhFRONT SIDE MEMBER, RH [09.1997 - 11.1999] BEA11 |
57123-42020 |
US $40.77 |
||
|
57131A
|
57131A
57131-42010 Member, Front Side, Rear RhFRONT SIDE, REAR RH [09.1997 - 11.1999] BEA11 |
57131-42010 |
US $24.17 |
||
|
57132A
|
57132A
57132-42010 Member, Front Side, Rear LhFRONT SIDE, REAR LH [09.1997 - 11.1999] BEA11 |
57132-42010 |
US $24.17 |
||
|
57135A
|
57135A
57135-42010 Bracket, Front Floor Side, RhFRONT FLOOR SIDE, RH [09.1997 - 11.1999] BEA11 |
57135-42010 |
US $28.39 |
||
|
57136A
|
57136A
57136-42010 Bracket, Front Floor Side, LhFRONT FLOOR SIDE, LH [09.1997 - 11.1999] BEA11 |
57136-42010 |
US $28.39 |
||
|
57145
|
57145
57145-42010 Plate, Front Side Member, Center RhFRONT SIDE MEMBER, CENTER RH [09.1997 - 11.1999] BEA11 |
57145-42010 |
US $33.92 |
||
|
57146
|
57146
57146-42010 Plate, Front Side Member, Center LhFRONT SIDE MEMBER, CENTER LH [09.1997 - 11.1999] BEA11 |
57146-42010 |
US $33.92 |
||
|
57147
|
57147
57147-42010 Plate, Front Side Member, Rear RhFRONT SIDE MEMBER, REAR RH [09.1997 - 11.1999] BEA11 |
57147-42010 |
US $28.39 |
||
|
57148
|
57148
57148-42010 Plate, Front Side Member, Rear LhFRONT SIDE MEMBER, REAR LH [09.1997 - 11.1999] BEA11 |
57148-42010 |
US $28.39 |
||
|
57151A
|
57151A
57151-42030 Reinforcement, Front Side Member, No.1 RhFRONT SIDE MEMBER, NO.1 RH [09.1997 - 11.1999] BEA11 |
57151-42030 |
US $15.87 |
||
|
57152
|
57152
57152-42030 Reinforcement, Front Side Member, No.1 LhFRONT SIDE MEMBER, NO.1 LH [09.1997 - 11.1999] BEA11 |
57152-42030 |
US $15.87 |
||
|
57153
|
57153
57153-42040 Reinforcement, Front Side Member, No.2 RhFRONT SIDE MEMBER, NO.2 RH [09.1997 - 11.1999] BEA11 |
57153-42040 |
US $90.27 |
||
|
57154
|
57154
57154-42010 Reinforcement, Front Side Member, No.2 Lh[09.1997 - 11.1999] BEA11 |
57154-42010 |
US $88.82 |
||
|
57157
|
57157
57157-42030 Reinforcement, Front Side Member, No.4 RhFRONT SIDE MEMBER, NO.4 RH [09.1997 - 11.1999] BEA11 |
57157-42030 |
US $22.13 |
||
|
57158
|
57158
57158-42020 Reinforcement, Front Side Member, No.4 LhFRONT SIDE MEMBER, NO.4 LH [09.1997 - 11.1999] BEA11 |
57158-42020 |
US $32.47 |
||
|
57171
|
57171
57171-42010 Bracket, Crossmember Floor, No.1CROSSMEMBER FLOOR, NO.1 [09.1997 - 11.1999] BEA11 |
57171-42010 |
US $6.41 |
||
|
57185
|
57185
57185-42010 Reinforsement, Front Side Member, Rear No.1 Inner RhFRONT SIDE MEMBER, REAR NO.1 INNER RH [09.1997 - 11.1999] BEA11 |
57185-42010 |
US $32.18 |
||
|
57186
|
57186
57186-42010 Reinforcement, Front Side Member, Rear No.1 Inner LhFRONT SIDE MEMBER, REAR NO.1 INNER LH [09.1997 - 11.1999] BEA11 |
57186-42010 |
US $32.18 |
||
|
57188
|
57188
57188-42020 Reinforcement, Front Side Member Extention, RhFRONT SIDE MEMBER EXTENTION, RH [09.1997 - 11.1999] BEA11 |
57188-42020 |
US $33.05 |
||
|
57189
|
57189
57189-42010 Reinforcement, Front Side Member Extention, LhFRONT SIDE MEMBER EXTENTION, LH [09.1997 - 11.1999] BEA11 |
57189-42010 |
US $35.24 |
||
|
57191A
|
57191A
57191-42040 Member, Front Side, Inner Rear RhFRONT SIDE, INNER REAR RH [09.1997 - 11.1999] BEA11 |
57191-42040 |
US $132.50 |
||
|
57192A
|
57192A
57192-42040 Member, Front Side, Inner Rear LhFRONT SIDE, INNER REAR LH [09.1997 - 11.1999] BEA11 |
57192-42040 |
US $132.50 |
||
|
57195A
|
57195A
57195-42020 Reinforcement, Front Side Member, Front RhFRONT SIDE MEMBER, FRONT RH [09.1997 - 11.1999] BEA11 |
57195-42020 |
US $39.17 |
||
|
57196B
|
57196B
57196-42020 Reinforcement, Front Side Member, Front LhFRONT SIDE MEMBER, FRONT LH [09.1997 - 11.1999] BEA11 |
57196-42020 |
US $39.17 |
||
|
57197
|
57197
57197-42040 Box, Torque, Front RhTORQUE, FRONT RH [09.1997 - 11.1999] BEA11 |
57197-42040 |
US $88.82 |
||
|
57198
|
57198
57198-42040 Box, Torque, Front LhTORQUE, FRONT LH [09.1997 - 11.1999] BEA11 |
57198-42040 |
US $88.82 |
||
|
57241
|
57241
57241-42030 Reinforcement, Front Side Member, No.5 RhFRONT SIDE MEMBER, NO.5 RH [09.1997 - 11.1999] BEA11 |
57241-42030 |
US $69.01 |
||
|
57242A
|
57242A
57242-42030 Reinforcement, Front Side Member, No.5 LhFRONT SIDE MEMBER, NO.5 LH [09.1997 - 11.1999] BEA11 |
57242-42030 |
US $69.01 |
||
|
57243G
|
57243G
57243-42020 Reinforcement, Front Side Member, No.6 RhFRONT SIDE MEMBER, NO.6 RH [09.1997 - 11.1999] BEA11 |
57243-42020 |
US $37.56 |
||
|
57244D
|
57244D
57244-42020 Reinforcement, Front Side Member, No.6 LhFRONT SIDE MEMBER, NO.6 LH [09.1997 - 11.1999] BEA11 |
57244-42020 |
US $37.56 |
||
|
57249
|
57249
57249-10040 Bracket, Front Side Member, Rh[09.1997 - 11.1999] BEA11 |
57249-10040 |
US $4.37 |
||
|
57271
|
57271
57271-42010 Extension, Steering Gear Box Support Member, Rh[09.1997 - 11.1999] BEA11 |
57271-42010 |
US $40.77 |
||
|
57272
|
57272
57272-42010 Extension, Steering Gear Box Suport Member, Lh[09.1997 - 11.1999] BEA11 |
57272-42010 |
US $40.77 |
||
|
57401C
|
57401C
57401-42080 Member Sub-Assy, Floor Side, Inner RhFLOOR SIDE, INNER RH [09.1997 - 11.1999] BEA11 |
57401-42080 |
US $247.52 |
||
|
57402A
|
57402A
57402-42080 Member Sub-Assy, Floor Side, Inner LhFLOOR SIDE, INNER LH [09.1997 - 11.1999] BEA11 |
57402-42080 |
US $247.52 |
||
|
57408C
|
57408C
57408-42050 Member Sub-Assy, Front Floor CrossFRONT FLOOR CROSS [09.1997 - 11.1999] BEA11 |
57408-42050 |
US $179.09 |
||
|
57468A
|
57468A
57468-42020 Bracket, Front Seat, Outside, Rear RhFRONT SEAT, OUTSIDE, REAR RH [09.1997 - 11.1999] BEA11 |
57468-42020 |
US $18.78 |
||
|
57469A
|
57469A
57469-42020 Bracket, Front Seat, Outside, Rear LhFRONT SEAT, OUTSIDE, REAR LH [09.1997 - 11.1999] BEA11 |
57469-42020 |
US $18.78 |
||
|
58102A
|
58102A
58102-42040 Reinforcement Sub-Assy, Front FloorFRONT FLOOR [09.1997 - 11.1999] BEA11 |
58102-42040 |
US $158.70 |
||
|
58111
|
58111
58111-42908 Pan, Front FloorFRONT FLOOR [09.1997 - 11.1999] BEA11 |
58111-42908 |
US $503.78 |
||
|
58114A
|
58114A
58114-42020 Reinforcement, Front Floor PanelFRONT FLOOR PANEL [09.1997 - 11.1999] BEA11 |
58114-42020 |
US $29.12 |
||
|
58115A
|
58115A
58115-42020 Reinforcement, Front Floor PanelFRONT FLOOR PANEL [09.1997 - 11.1999] BEA11 |
58115-42020 |
US $32.03 |
||
|
58124A
|
58124A
58124-42010 Reinforcement, Cowl Mounting, FrontCOWL MOUNTING, FRONT [09.1997 - 11.1999] BEA11 |
58124-42010 |
US $100.46 |
||
|
58191A
|
58191A
58191-42020 Footrest, Front Floor, RhFRONT FLOOR, RH [10.1997 -] BEA11..CON |
58191-42020 |
US $51.11 |
||
|
58192A
|
58192A
58192-42020 Footrest, Front Floor, LhFRONT FLOOR, LH [09.1997 - 11.1999] BEA11 |
58192-42020 |
US $35.24 |
||
|
58198A
|
58198A
58198-42020
Clip, Footrest, No.1
[09.1997 - 11.1999] BEA11 |
58198-42020 |
— | ||
|
58199A
|
58199A
58199-42020
Clip, Footrest, No.2
[09.1997 - 11.1999] BEA11 |
58199-42020 |
— | ||
|
61423F
|
61423F
61423-42020 Reinforcement, Rocker Panel, No.3 RhROCKER PANEL, NO.3 RH [09.1997 - 11.1999] BEA11 |
61423-42020 |
US $31.01 |
||
|
61424E
|
61424E
61424-42020 Reinforcement, Rocker Panel, No.3 LhROCKER PANEL, NO.3 LH [09.1997 - 11.1999] BEA11 |
61424-42020 |
US $31.01 |
||
|
61425C
|
61425C
61425-42010 Reinforcement, Rocker Panel, No.4 RhROCKER PANEL, NO.4 RH [09.1997 - 11.1999] BEA11 |
61425-42010 |
US $27.66 |
||
|
61426C
|
61426C
61426-42010 Reinforcement, Rocker Panel, No.4 LhROCKER PANEL, NO.4 LH [09.1997 - 11.1999] BEA11 |
61426-42010 |
US $27.66 |
||
|
61427
|
61427
61427-42010 Reinforcement, Rocker Panel, No.5 RhROCKER PANEL, NO.5 RH [09.1997 - 11.1999] BEA11 |
61427-42010 |
US $25.63 |
||
|
61428C
|
61428C
61428-42010 Reinforcement, Rocker Panel, No.5 LhROCKER PANEL, NO.5 LH [09.1997 - 11.1999] BEA11 |
61428-42010 |
US $25.63 |
||
|
91511C0818
|
91511C0818
91511-C0818 BOLTFLANGE |
91511-C0818 |
from US $1.03 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
5329247010
|
5329247010
53292-47010 Seal, Radiator Support, Upper |
53292-47010 |
US $0.73 |
||
|
8271520350
|
8271520350
82715-20350 Bracket, Wiring Harness Clamp |
82715-20350 |
US $2.91 |
||
|
8271542130
|
8271542130
82715-42130
Bracket,wiring Harness Clamp
|
82715-42130 |
— | ||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9018008010
|
9018008010
90180-08010 New Genuine Part |
90180-08010 |
US $2.62 |
||
|
9033325003
|
9033325003
90333-25003 Plug, Hole(For Hood) |
90333-25003 |
from US $1.12 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9095001711
|
9095001711
90950-01711 New Genuine Part |
90950-01711 |
US $1.60 |
||
|
9095001808
|
9095001808
90950-01808 PLUG HOLE |
90950-01808 |
from US $1.76 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $0.92 |
||
|
9095001860
|
9095001860
90950-01860
PLUG HOLE
|
90950-01860 |
— | ||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9422380800
|
9422380800
94223-80800 New Genuine Part |
94223-80800 |
US $1.44 |
||
