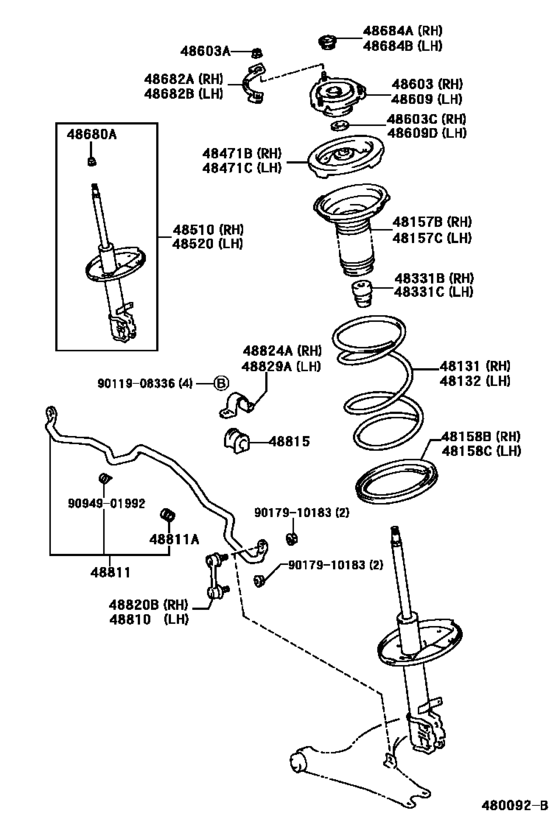

Front Spring & Shock Absorber ([09.1997 - ] (9709- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1997 - 1999
- Sales region
- U.S.A.
- Frame
- BEA11
- grade
- CON
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 09.1997
- To
- 11.1999
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-42230
Spring, Front Coil, Rh
[09.1997 - 11.1999] BEA11 L=346.5 |
48131-42230 |
— | ||
|
48132
|
48132
48131-42230
Spring, Front Coil, Rh
[09.1997 - 11.1999] BEA11 L=346.5 |
48131-42230 |
— | ||
|
48157B
|
48157B
48157-42010 Insulator, Front Coil Spring, Upper Rh[09.1997 - 11.1999] BEA11 |
48157-42010 |
from US $23.77 |
||
|
48157C
|
48157C
48157-42010 Insulator, Front Coil Spring, Upper Rh[09.1997 - 11.1999] BEA11 |
48157-42010 |
from US $23.77 |
||
|
48158B
|
48158B
48158-32030 Insulator, Front Coil Spring, Lower[09.1997 - 11.1999] BEA11 |
48158-32030 |
US $23.26 |
||
|
48158C
|
48158C
48158-32030 Insulator, Front Coil Spring, Lower[09.1997 - 11.1999] BEA11 |
48158-32030 |
US $23.26 |
||
|
48331B
|
48331B
48331-42010 Bumper, Front Spring, Rh[09.1997 - 11.1999] BEA11 |
48331-42010 |
from US $13.67 |
||
|
48331C
|
48331C
48331-42010 Bumper, Front Spring, Rh[09.1997 - 11.1999] BEA11 |
48331-42010 |
from US $13.67 |
||
|
48471B
|
48471B
48044-32030 Seat, Front Spring, Upper[09.1997 - 11.1999] BEA11 |
48044-32030 |
from US $24.12 |
||
|
48471C
|
48471C
48044-32030 Seat, Front Spring, Upper[09.1997 - 11.1999] BEA11 |
48044-32030 |
from US $24.12 |
||
|
48510
|
48510
48510-49135 Absorber Assy, Shock, Front Rh[10.1997 - 01.1998] BEA11 |
48510-49135 |
US $368.37 |
||
| replacement | |||||
|
48510
|
48510
48510-49137 Absorber Assy, Shock, Front Rh[10.1997 - 01.1998] BEA11 |
48510-49137 |
US $368.37 |
||
|
48510
|
48510
48510-49136 Absorber Assy, Shock, Front Rh[01.1998 - 04.2003] BEA11 |
48510-49136 |
US $368.37 |
||
| replacement | |||||
|
48510
|
48510
48510-49137 Absorber Assy, Shock, Front Rh[01.1998 - 04.2003] BEA11 |
48510-49137 |
US $368.37 |
||
|
48520
|
48520
48520-49135 Absorber Assy, Shock, Front Lh[10.1997 - 01.1998] BEA11 |
48520-49135 |
US $368.37 |
||
| replacement | |||||
|
48520
|
48520
48520-49137 Absorber Assy, Shock, Front Lh[10.1997 - 01.1998] BEA11 |
48520-49137 |
US $368.37 |
||
|
48520
|
48520
48520-49136 Absorber Assy, Shock, Front Lh[01.1998 - 04.2003] BEA11 |
48520-49136 |
US $368.37 |
||
| replacement | |||||
|
48520
|
48520
48520-49137 Absorber Assy, Shock, Front Lh[01.1998 - 04.2003] BEA11 |
48520-49137 |
US $368.37 |
||
|
48603
|
48603
48609-42010 Support Sub-Assy, Front Suspension, Rh[09.1997 - 11.1999] BEA11 |
48609-42010 |
from US $83.42 |
||
|
48603A
|
48603A
90179-10095 Nut(For Backing Plate To Rear Axle Housing Setting)[09.1997 - 11.1999] BEA11 |
90179-10095 |
US $1.76 |
||
|
48603C
|
48603C
90303-22049 Seal, Dust(For Front Suspension Support)[09.1997 - 11.1999] BEA11 |
90303-22049 |
from US $3.71 |
||
|
48609
|
48609
48609-42010 Support Sub-Assy, Front Suspension, Rh[09.1997 - 11.1999] BEA11 |
48609-42010 |
from US $83.42 |
||
|
48609D
|
48609D
90303-22049 Seal, Dust(For Front Suspension Support)[09.1997 - 11.1999] BEA11 |
90303-22049 |
from US $3.71 |
||
|
48680A
|
48680A
94184-61401 Nut(For Idler Arm Support)[09.1997 - 11.1999] BEA11 |
94184-61401 |
US $2.72 |
||
|
48682A
|
48682A
48682-42010 Support, Front Suspension, No.2 Rh[09.1997 - 11.1999] BEA11 |
48682-42010 |
US $9.17 |
||
|
48682B
|
48682B
48682-42010 Support, Front Suspension, No.2 Rh[09.1997 - 11.1999] BEA11 |
48682-42010 |
US $9.17 |
||
|
48684A
|
48684A
48684-32010 Cover, Bearing Dust[09.1997 - 11.1999] BEA11 |
48684-32010 |
US $9.44 |
||
|
48684B
|
48684B
48684-32010 Cover, Bearing Dust[09.1997 - 11.1999] BEA11 |
48684-32010 |
US $9.44 |
||
|
48810
|
48810
48820-33010 Link Assy, Front Stabilizer, Lh[09.1997 - 11.1999] BEA11 |
48820-33010 |
from US $69.38 |
||
|
48811
|
48811
48811-42030 Bar, Stabilizer, FrontSTABILIZER, FRONT [09.1997 - 11.1999] BEA11 |
48811-42030 |
US $160.16 |
||
|
48811A
|
48811A
90385-22003 Bush(For Front Stabilizer Bar)[09.1997 - 11.1999] BEA11 |
90385-22003 |
from US $1.62 |
||
|
48815
|
48815
48815-42010 Bush, Front Stabilizer Bar, No.1[09.1997 - 11.1999] BEA11 |
48815-42010 |
from US $7.16 |
||
|
48820B
|
48820B
48820-33010 Link Assy, Front Stabilizer, Lh[09.1997 - 11.1999] BEA11 |
48820-33010 |
from US $69.38 |
||
|
48824A
|
48824A
48824-42010
Bracket, Front Stabilizer, No.1 Rh
[09.1997 - 11.1999] BEA11 |
48824-42010 |
— | ||
|
48829A
|
48829A
48824-42010
Bracket, Front Stabilizer, No.1 Rh
[09.1997 - 11.1999] BEA11 |
48824-42010 |
— | ||
|
9011908336
|
9011908336
90119-08336 BOLT |
90119-08336 |
US $2.56 |
||
|
9017910183
|
9017910183
90179-10183 Nut(For Front Stabilizer Link) |
90179-10183 |
from US $0.88 |
||
|
9094901992
|
9094901992
90949-01992
New Genuine Part
|
90949-01992 |
— | ||
