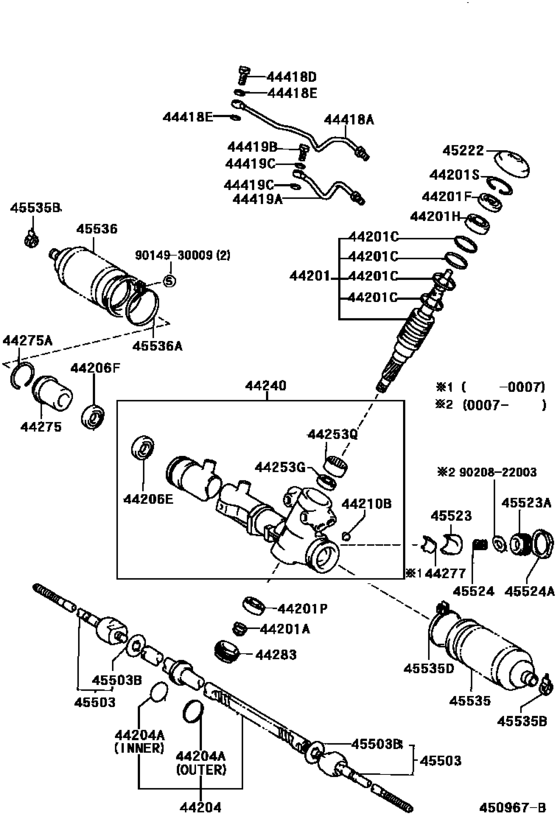

Front Steering Gear & Link ([09.1997 - ] (9709- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1997 - 1999
- Sales region
- U.S.A.
- Frame
- BEA11
- grade
- CON
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 09.1997
- To
- 11.1999
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44201
|
44201
44201-42050 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [09.1997 - 11.1999] BEA11 |
44201-42050 |
US $294.11 |
||
|
44201A
|
44201A
90179-12098
Nut, Lock(For Power Steering Control Valve)
[09.1997 - 11.1999] BEA11 |
90179-12098 |
— | ||
|
44201C
|
44201C
90562-33002 Ring(For Power Steering Control Valve)[09.1997 - 11.1999] BEA11 |
90562-33002 |
US $3.89 |
||
|
44201F
|
44201F
90311-19007 Seal, Oil(For Power Steering Control Valve)[09.1997 - 11.1999] BEA11 |
90311-19007 |
from US $1.97 |
||
|
44201H
|
44201H
90369-19005 Bearing(For Power Steering Control Valve Upper)[09.1997 - 11.1999] BEA11 |
90369-19005 |
US $44.09 |
||
|
44201P
|
44201P
90363-12008 Bearing(For Power Steering Control Valve Lower)[09.1997 - 11.1999] BEA11 |
90363-12008 |
US $12.58 |
||
|
44201S
|
44201S
90521-41003
Ring, Snap(For Power Steering Control Valve)
[09.1997 - 11.1999] BEA11 |
90521-41003 |
— | ||
|
44204
|
44204
44204-42040 Rack Sub-Assy, Power SteeringPOWER STEERING [09.1997 - 11.1999] BEA11 |
44204-42040 |
US $198.02 |
||
|
44204A
|
44204A
90301-33003 Ring(For Rack Steering Piston)[09.1997 - 11.1999] BEA11 INNER |
90301-33003 |
US $4.32 |
||
|
44204A
|
44204A
90562-37004 Ring(For Rack Steering Piston)[09.1997 - 11.1999] BEA11 OUTER |
90562-37004 |
US $3.86 |
||
|
44206E
|
44206E
90310-24009
Seal, Oil, No.1(For Power Steering Cylinder Tube)
[09.1997 - 11.1999] BEA11 |
90310-24009 |
— | ||
| replacement | |||||
|
44206E
|
44206E
90310-24012 Seal, Oil, No.1(For Power Steering Cylinder Tube)[09.1997 - 11.1999] BEA11 |
90310-24012 |
from US $3.04 |
||
|
44206F
|
44206F
90310-24009
Seal, Oil, No.1(For Power Steering Cylinder Tube)
[09.1997 - 11.1999] BEA11 |
90310-24009 |
— | ||
| replacement | |||||
|
44206F
|
44206F
90310-24012 Seal, Oil, No.1(For Power Steering Cylinder Tube)[09.1997 - 11.1999] BEA11 |
90310-24012 |
from US $3.04 |
||
|
44210B
|
44210B
90410-06002 Seat, Union(For Power Steering Control Valve)[09.1997 - 11.1999] BEA11 |
90410-06002 |
US $3.52 |
||
|
44240
|
44240
44240-42020
Housing Assy, Power Steering Rack
[09.1997 - 11.1999] BEA11 |
44240-42020 |
— | ||
|
44253G
|
44253G
90310-23005 Seal, Oil, No.2(For Power Steering Rack Housing)[09.1997 - 11.1999] BEA11 |
90310-23005 |
from US $2.72 |
||
|
44253Q
|
44253Q
90389-28001 Bush(For Power Steering Rack Housing)[09.1997 - 11.1999] BEA11 |
90389-28001 |
US $5.77 |
||
|
44275
|
44275
44275-12090 Stopper, Cylinder End[09.1997 - 11.1999] BEA11 |
44275-12090 |
from US $26.83 |
||
|
44275A
|
44275A
90521-50002 Ring, Hole Snap(For Cylinder End Stopper)[09.1997 - 11.1999] BEA11 |
90521-50002 |
US $1.22 |
||
|
44277
|
44277
44277-12040
Seat, Rack Guide
[09.1997 - 11.1999] BEA11 |
44277-12040 |
— | ||
|
44283
|
44283
44283-12010 Cap, Power Steering Rack Housing[09.1997 - 11.1999] BEA11 |
44283-12010 |
US $10.83 |
||
|
44418A
|
44418A
44418-42030 Tube, Steering Right Turn PressureSTEERING RIGHT TURN PRESSURE [09.1997 - 11.1999] BEA11 |
44418-42030 |
US $16.89 |
||
|
44418D
|
44418D
90401-10021 Bolt, Union(For Steering Turn Pressure Tube)[09.1997 - 11.1999] BEA11 |
90401-10021 |
US $4.02 |
||
|
44418E
|
44418E
90430-10008 Gasket(For Steering Turn Pressure Tube)[09.1997 - 11.1999] BEA11 |
90430-10008 |
US $2.72 |
||
|
44419A
|
44419A
44419-42020
Tube, Steering Left Turn Pressure
[09.1997 - 11.1999] BEA11 |
44419-42020 |
— | ||
|
44419B
|
44419B
90401-10021 Bolt, Union(For Steering Turn Pressure Tube)[09.1997 - 11.1999] BEA11 |
90401-10021 |
US $4.02 |
||
|
44419C
|
44419C
90430-10008 Gasket(For Steering Turn Pressure Tube)[09.1997 - 11.1999] BEA11 |
90430-10008 |
US $2.72 |
||
|
45222
|
45222
45222-42010 Cover, Steering Gear Dust[09.1997 - 11.1999] BEA11 |
45222-42010 |
US $5.94 |
||
|
45503
|
45503
45503-19215 End Sub-Assy, Steering Rack[09.1997 - 11.1999] BEA11 |
45503-19215 |
from US $99.16 |
||
|
45503B
|
45503B
90214-14009 Washer, Claw(For Steering Rack End)[09.1997 - 11.1999] BEA11 OD=35.2 |
90214-14009 |
from US $1.35 |
||
|
45523
|
45523
45523-12080 Guide, Rack(For Steering Gear)[09.1997 - 11.1999] BEA11 |
45523-12080 |
US $18.54 |
||
|
45523A
|
45523A
90501-30015
Spring(For Steering Gear Rack Guide)
[09.1997 - 11.1999] BEA11 |
90501-30015 |
— | ||
|
45524
|
45524
45524-12041
Cap, Steering Rack Guide Spring
[09.1997 - 11.1999] BEA11 |
45524-12041 |
— | ||
|
45524A
|
45524A
90179-33003
Nut(For Power Steering Rack Guide Cap)
[09.1997 - 11.1999] BEA11 |
90179-33003 |
— | ||
|
45535
|
45535
45535-12100 Boot, Steering Rack, No.1[09.1997 - 11.1999] BEA11 |
45535-12100 |
from US $13.92 |
||
|
45535B
|
45535B
90467-19019 Clip[09.1997 - 11.1999] BEA11 |
90467-19019 |
from US $4.41 |
||
|
45535D
|
45535D
90460-52001 Clamp(For Power Steering Rack Boot)[09.1997 - 11.1999] BEA11 |
90460-52001 |
from US $2.07 |
||
|
45536
|
45536
45535-12100 Boot, Steering Rack, No.1[09.1997 - 11.1999] BEA11 |
45535-12100 |
from US $13.92 |
||
|
45536A
|
45536A
90460-52001 Clamp(For Power Steering Rack Boot)[09.1997 - 11.1999] BEA11 |
90460-52001 |
from US $2.07 |
||
|
9014930009
|
9014930009
90149-30009 Screw(For Steering Rack Boot Clamp) |
90149-30009 |
US $1.76 |
||
|
9020822003
|
9020822003
90208-22003
WASHER CONICAL
|
90208-22003 |
— | ||
