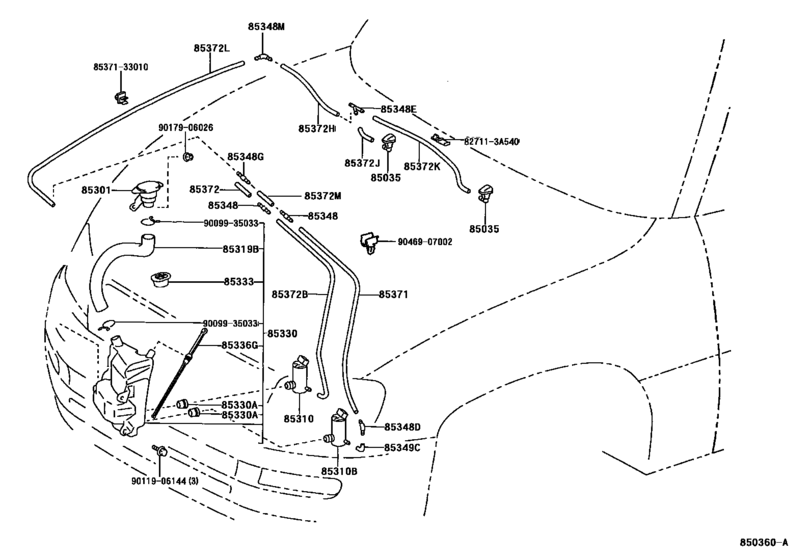

Windshield Washer ([09.1997 - ] (9709- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1997 - 1999
- Sales region
- U.S.A.
- Frame
- BEA11
- grade
- CON
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 09.1997
- To
- 11.1999
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[09.1997 - 11.1999] BEA11 |
85381-12050 |
from US $17.28 |
||
| replacement | |||||
|
85035
|
85035
85381200201
Nozzle Fr Washer Rh
[09.1997 - 11.1999] BEA11 |
85381200201 |
— | ||
|
85035
|
85035
85381-42040
Nozzle Sub-Assy, Washer
[09.1997 - 11.1999] BEA11 COLD SPEC |
85381-42040 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-42070 Nozzle Sub-Assy, WasherWASHER [09.1997 - 11.1999] BEA11 COLD SPEC |
85381-42070 |
from US $14.20 |
||
|
85301
|
85301
85301-42011
Inlet Sub-Assy, Washer
[09.1997 - 11.1999] BEA11 |
85301-42011 |
— | ||
|
85310
|
85310
85330-10280 Motor And Pump Assy, Windshield Washer[09.1997 - 11.1999] BEA11 |
85330-10280 |
from US $60.45 |
||
|
85310B
|
85310B
85330-10280 Motor And Pump Assy, Windshield Washer[09.1997 - 11.1999] BEA11 |
85330-10280 |
from US $60.45 |
||
|
85319B
|
85319B
85319-42010
Hose, Window Washer
[09.1997 - 11.1999] BEA11 |
85319-42010 |
— | ||
|
85330
|
85330
85315-42011
Jar Assy, Windshield Washer
[09.1997 - 11.1999] BEA11 |
85315-42011 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[09.1997 - 11.1999] BEA11 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[09.1997 - 11.1999] BEA11 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[09.1997 - 11.1999] BEA11 |
90068-32002 |
US $7.46 |
||
|
85333
|
85333
85312-42010
Packing, Windshield Washer Tank
[09.1997 - 11.1999] BEA11 |
85312-42010 |
— | ||
|
85336G
|
85336G
85336-42010
Gage, Water Level
[09.1997 - 11.1999] BEA11 |
85336-42010 |
— | ||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[09.1997 - 11.1999] BEA11 |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-20200 Joint, Windshield Washer Hose, No.1[09.1997 - 11.1999] BEA11 |
85355-20200 |
from US $0.99 |
||
|
85348E
|
85348E
85348-14390 Joint, Windshield Washer Hose, No.1[09.1997 - 11.1999] BEA11 |
85348-14390 |
from US $1.40 |
||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[09.1997 - 11.1999] BEA11 |
85349-89122 |
from US $1.25 |
||
|
85348M
|
85348M
85376-10250 Joint, Windshield Washer Hose, No.1[09.1997 - 11.1999] BEA11 |
85376-10250 |
from US $3.84 |
||
|
85349C
|
85349C
85355-14481 Joint, Windshield Washer Elbow, No.1[09.1997 - 11.1999] BEA11 |
85355-14481 |
US $0.98 |
||
|
85371
|
85371
90446-07001 Hose, Windshield Washer (From Motor To Joint)[09.1997 - 11.1999] BEA11 *H,L=700 |
90446-07001 |
from US $2.10 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.1997 - 11.1999] BEA11 *H,L=40 |
90099-33080 |
from US $8.31 |
||
|
85372B
|
85372B
90446-07001 Hose, Windshield Washer (From Motor To Joint)[09.1997 - 11.1999] BEA11 *H,L=650 |
90446-07001 |
from US $2.10 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.1997 - 11.1999] BEA11 *H,L=390 |
90099-33080 |
from US $8.31 |
||
|
85372H
|
85372H
90099-59175
Hose, Windshield Washer (From Joint To Joint), No.3
[09.1997 - 11.1999] BEA11 *H,L=390 |
90099-59175 |
— | ||
| replacement | |||||
|
85372H
|
85372H
90446-07001 Hose, Windshield Washer (From Motor To Joint)[09.1997 - 11.1999] BEA11 *H,L=390 |
90446-07001 |
from US $2.10 |
||
|
85372J
|
85372J
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.1997 - 11.1999] BEA11 *H,L=40; BEA11 *H,L=40,COLD SPEC |
90099-33080 |
from US $8.31 |
||
|
85372K
|
85372K
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.1997 - 11.1999] BEA11 *H,L=540,COLD SPEC |
90099-33080 |
from US $8.31 |
||
|
85372K
|
85372K
90099-33299 Joint, Windshield Washer Elbow, No.2[09.1997 - 11.1999] BEA11 *H,L=540 |
90099-33299 |
US $4.37 |
||
|
85372L
|
85372L
90099-33224
Hose, Windshield Washer (From Motor To Joint)
[09.1997 - 11.1999] BEA11 L=1200 |
90099-33224 |
— | ||
|
85372L
|
85372L
90446-07001 Hose, Windshield Washer (From Motor To Joint)[09.1997 - 11.1999] BEA11 *H,L=1140 |
90446-07001 |
from US $2.10 |
||
|
85372M
|
85372M
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.1997 - 11.1999] BEA11 *H,L=40 |
90099-33080 |
from US $8.31 |
||
|
827113A540
|
827113A540
82711-3A540 Clamp, Sliding Roof Drain Hose |
82711-3A540 |
US $1.44 |
||
|
8537133010
|
8537133010
85371-33010 Clamp, Washer, No.2 |
85371-33010 |
US $2.40 |
||
|
9009935033
|
9009935033
90099-35033 New Genuine Part |
90099-35033 |
US $2.04 |
||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046907002
|
9046907002
90469-07002 Clamp No.2 (For Windseield Washer) |
90469-07002 |
from US $2.77 |
||
