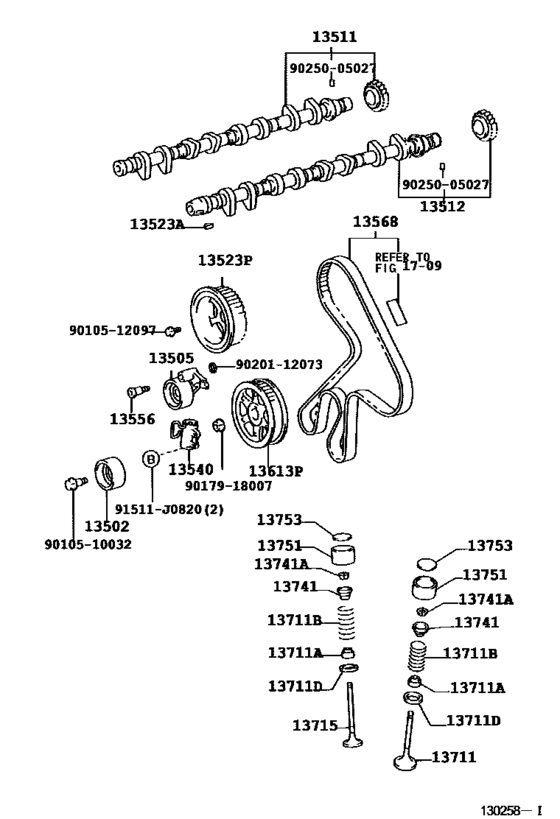

Camshaft & Valve ([05.2001 - ] (0105- )1CDFTV) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13502
|
13502
13503-27010 Idler Sub-Assy, Timing Belt, No.2TIMING BELT, NO.2 [05.2001 - 07.2003] 1CDFTV..CLA2# |
13503-27010 |
from US $50.57 |
||
|
13505
|
13505
13505-27010 Idler Sub-Assy, Timing Belt, No.1TIMING BELT, NO.1 [05.2001 - 07.2003] 1CDFTV..CLA2# |
13505-27010 |
from US $44.06 |
||
|
13511
|
13511
13501-27011 Camshaft[05.2001 - 07.2003] 1CDFTV..CLA2# |
13501-27011 |
US $476.11 |
||
|
13512
|
13512
13502-27011
Camshaft, No.2
[05.2001 - 07.2003] 1CDFTV..CLA2# |
13502-27011 |
— | ||
|
13523A
|
13523A
90280-05004 Key, Woodruff(For Timing Gear)[05.2001 - 07.2003] 1CDFTV..CLA2# |
90280-05004 |
from US $0.92 |
||
|
13523P
|
13523P
13523-27010 Pulley, Camshaft TimingCAMSHAFT TIMING [05.2001 - 07.2003] 1CDFTV..CLA2# |
13523-27010 |
from US $63.96 |
||
|
13540
|
13540
13540-27011 Tensioner Assy, Chain, No.1CHAIN, NO.1 [05.2001 - 07.2003] 1CDFTV..CLA2# |
13540-27011 |
US $84.61 |
||
|
13556
|
13556
13556-27010 Shaft, Timing Belt IdlerTIMING BELT IDLER [05.2001 - 07.2003] 1CDFTV..CLA2# |
13556-27010 |
US $23.59 |
||
|
13568
|
13568
13568-29035 Belt, TimingTIMING [05.2001 - 07.2003] 1CDFTV..CLA2# |
13568-29035 |
from US $87.30 |
||
|
13613P
|
13613P
13603-27010
Pulley, Injection Pump Drive
[05.2001 - 07.2003] 1CDFTV..CLA2# |
13603-27010 |
— | ||
|
13711
|
13711
13711-27010
Valve, Intake
[05.2001 - 07.2003] 1CDFTV..CLA2# |
13711-27010 |
— | ||
|
13711A
|
13711A
90913-02119 Seal Or Ring, O(For Valve Stem Oil)O(FOR VALVE STEM OIL) [05.2001 - 07.2003] 1CDFTV..CLA2# |
90913-02119 |
US $5.97 |
||
|
13711A
|
13711A
90913-02121 Seal Or Ring, O(For Valve Stem Oil)[10.2003 -] 1CDFTV..CLA2# |
90913-02121 |
from US $6.44 |
||
|
13711B
|
13711B
90905-01055 Spring, Compression(For Inner)COMPRESSION(FOR INNER) [05.2001 - 07.2003] 1CDFTV..CLA2# |
90905-01055 |
US $4.22 |
||
|
13711D
|
13711D
90560-11032 Washer, Plate(For Valve Spring Seat)PLATE(FOR VALVE SPRING SEAT) [05.2001 - 07.2003] 1CDFTV..CLA2# |
90560-11032 |
US $1.60 |
||
|
13715
|
13715
13715-27010
Valve, Exhaust
[05.2001 - 07.2003] 1CDFTV..CLA2# |
13715-27010 |
— | ||
|
13741
|
13741
13741-16010 Retainer, Valve Spring[05.2001 - 07.2003] 1CDFTV..CLA2# |
13741-16010 |
US $7.88 |
||
|
13741A
|
13741A
90913-03021 Seal Or Ring, O(For Valve Stem Oil)[05.2001 - 07.2003] 1CDFTV..CLA2# |
90913-03021 |
from US $1.99 |
||
|
13751
|
13751
13751-16010 Lifter, Valve[05.2001 - 07.2003] 1CDFTV..CLA2# |
13751-16010 |
US $26.44 |
||
|
13753
|
13753
13753-27010 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=2.500 |
13753-27010 |
US $7.86 |
||
|
13753
|
13753
13753-27030 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=2.550 |
13753-27030 |
US $7.86 |
||
|
13753
|
13753
13753-27050 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=2.600 |
13753-27050 |
US $7.86 |
||
|
13753
|
13753
13753-27070 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=2.650 |
13753-27070 |
US $7.86 |
||
|
13753
|
13753
13753-27090 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=2.700 |
13753-27090 |
US $7.86 |
||
|
13753
|
13753
13753-27110 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=2.750 |
13753-27110 |
US $7.37 |
||
|
13753
|
13753
13753-27130 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=2.800 |
13753-27130 |
US $7.37 |
||
|
13753
|
13753
13753-27150 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=2.850 |
13753-27150 |
US $7.86 |
||
|
13753
|
13753
13753-27170 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=2.900 |
13753-27170 |
US $7.69 |
||
|
13753
|
13753
13753-27190
Shim, Valve Adjusting
[05.2001 - 07.2003] 1CDFTV..CLA2# T=2.950 |
13753-27190 |
— | ||
|
13753
|
13753
13753-27210 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=3.000 |
13753-27210 |
US $7.69 |
||
|
13753
|
13753
13753-27230 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=3.050 |
13753-27230 |
US $7.86 |
||
|
13753
|
13753
13753-27250 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=3.100 |
13753-27250 |
US $7.86 |
||
|
13753
|
13753
13753-27270 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=3.150 |
13753-27270 |
US $7.86 |
||
|
13753
|
13753
13753-27290 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=3.200 |
13753-27290 |
US $7.86 |
||
|
13753
|
13753
13753-27310 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=3.250 |
13753-27310 |
US $7.86 |
||
|
13753
|
13753
13753-27330 Shim, Valve AdjustingVALVE ADJUSTING [05.2001 - 07.2003] 1CDFTV..CLA2# T=3.300 |
13753-27330 |
US $7.86 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.92 |
||
|
9010510032
|
9010510032
90105-10032 BOLT |
90105-10032 |
from US $1.46 |
||
|
9010512097
|
9010512097
90105-12097 New Genuine Part |
90105-12097 |
US $3.64 |
||
|
9017918007
|
9017918007
90179-18007 NUT |
90179-18007 |
US $4.02 |
||
|
9020112073
|
9020112073
90201-12073 WASHER PLATE |
90201-12073 |
from US $1.91 |
||
|
9025005027
|
9025005027
90250-05027 Pin, Straight |
90250-05027 |
from US $0.78 |
