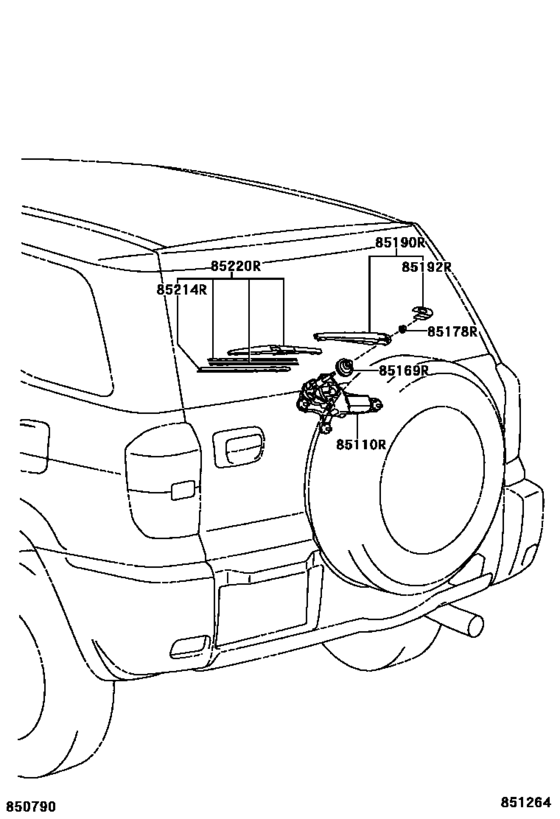

Rear Wiper ([07.2003 - ] (0307- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2001 - 2005
- Sales region
- General
- Frame
- CLA20
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2001
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85130-42040 Motor Assy, Rear Wiper[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
85130-42040 |
from US $393.12 |
||
|
85169R
|
85169R
85143-42030 Grommet, Rear Wiper Motor[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
85143-42030 |
US $2.01 |
||
|
85178R
|
85178R
90179-06158 Nut, Rear Wiper Link Pivot, No.2[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
90179-06158 |
from US $0.83 |
||
|
85190R
|
85190R
85241-42040 Arm Assy, Rear Wiper[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
85241-42040 |
from US $27.86 |
||
|
85192R
|
85192R
85292-28030 Cover, Rear Wiper Arm[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
85292-28030 |
from US $3.25 |
||
|
85214R
|
85214R
85214-42040 Rubber, Rear Wiper[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
85214-42040 |
from US $6.21 |
||
|
85220R
|
85220R
85242-42020 Blade Assy, Rear Wiper[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
85242-42020 |
from US $15.81 |
