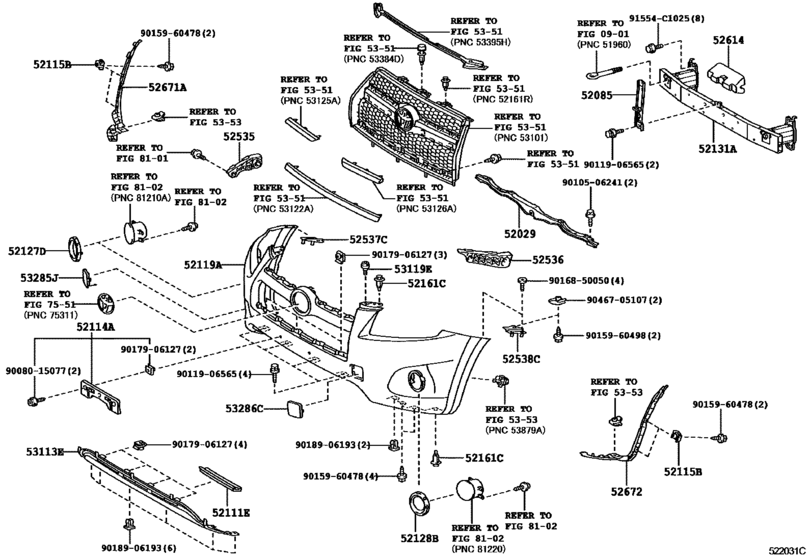

Front Bumper & Bumper Stay ([11.2008 - ] (0811- )NAP..LIMD) Diagram Toyota RAV4/VANGUARD
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- GSA33
- grade
- LIMD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- RAV4 (NAP)
- From
- 11.2008
- To
- 01.2013
- Gear Shift Type
- 5FC
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52029
|
52029
52029-0R010
Reinforcement Sub-Assy, Front Bumper, Upper
[11.2008 -] ASA3#,GSA3#..NAP |
52029-0R010 |
— | ||
|
52085
|
52085
52085-0R020
Stay Sub-Assy, Front Bumper, Center
[11.2008 -] ASA3#,GSA3#..NAP |
52085-0R020 |
— | ||
|
52111E
|
52111E
52111-0R010
Bar, Front Bumper
[11.2008 - 11.2009] ASA3#,GSA3#..NAP |
52111-0R010 |
— | ||
| replacement | |||||
|
52111E
|
52111E
52111-0R030
Bar, Front Bumper
[11.2008 - 11.2009] ASA3#,GSA3#..NAP |
52111-0R030 |
— | ||
|
52111E
|
52111E
52111-0R030
Bar, Front Bumper
[12.2009 -] ASA3#,GSA3#..NAP |
52111-0R030 |
— | ||
|
52114A
|
52114A
52114-0R020
Bracket, Front Bumper Extention Mounting
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
52114-0R020 |
— | ||
|
52115B
|
52115B
52115-0R010
Retainer, Front Bumper Extension, No.1
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
52115-0R010 |
— | ||
|
52119A
|
52119A
52119-0R903
Cover, Front Bumper
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
52119-0R903 |
— | ||
|
52127D
|
52127D
52127-0R030
Cover, Front Bumper Hole, Rh
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
52127-0R030 |
— | ||
|
52128B
|
52128B
52128-0R030
Cover, Front Bumper Hole, Lh
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
52128-0R030 |
— | ||
|
52131A
|
52131A
52021-42082
Reinforcement, Front Bumper
[11.2008 - 01.2013] ASA3#,GSA3#..NAP..USA |
52021-42082 |
— | ||
|
52161C
|
52161C
52161-02020 Clip[11.2008 -] ASA3#,GSA3#..NAP |
52161-02020 |
US $5.27 |
||
| replacement | |||||
|
52161C
|
52161C
52161-16010 Clip[11.2008 -] ASA3#,GSA3#..NAP |
52161-16010 |
from US $1.68 |
||
|
52535
|
52535
52535-0R010
Retainer, Front Bumper Side, Rh
[11.2008 -] ASA3#,GSA3#..NAP |
52535-0R010 |
— | ||
|
52536
|
52536
52536-0R010
Retainer, Front Bumper Side, Lh
[11.2008 -] ASA3#,GSA3#..NAP |
52536-0R010 |
— | ||
|
52537C
|
52537C
52537-0R010
Retainer, Front Bumper Side, No.2 Rh
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
52537-0R010 |
— | ||
|
52538C
|
52538C
52538-0R010
Retainer, Front Bumper Side, No.2 Lh
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
52538-0R010 |
— | ||
|
52614
|
52614
52614-0R010
Absorber, Front Bumper Energy, No.2
[11.2008 -] ASA3#,GSA3#..NAP |
52614-0R010 |
— | ||
|
52671A
|
52671A
52671-0R020
Extension, Front Bumper Arm, Rh
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
52671-0R020 |
— | ||
|
52672
|
52672
52672-0R020
Extension, Front Bumper Arm, Lh
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
52672-0R020 |
— | ||
|
53113E
|
53113E
53113-0R030
Grille, Radiator, Lower No.2
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
53113-0R030 |
— | ||
|
53119E
|
53119E
53119-20120 Protector, Radiator Grille[11.2008 -] ASA3#,GSA3#..NAP |
53119-20120 |
from US $7.62 |
||
|
53285J
|
53285J
53285-0R904
Cover, Front Bumper Arm Hole, Rh
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
53285-0R904 |
— | ||
|
53286C
|
53286C
53286-0R904
Cover, Front Bumper Arm Hole, Lh
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
53286-0R904 |
— | ||
|
91554C1025
|
91554C1025
91554-C1025 BOLT FLANGE |
91554-C1025 |
US $1.60 |
||
|
9008015077
|
9008015077
90080-15077
New Genuine Part
|
90080-15077 |
— | ||
|
9010506241
|
9010506241
90105-06241 BOLT WASHER BASED |
90105-06241 |
US $1.75 |
||
|
9011906565
|
9011906565
90119-06565 BOLT WWASHER |
90119-06565 |
US $1.76 |
||
|
9015960478
|
9015960478
90159-60478 SCREW WWASHER |
90159-60478 |
from US $0.74 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
from US $0.72 |
||
|
9016850050
|
9016850050
90168-50050 SCREW TAPPING |
90168-50050 |
US $1.12 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.86 |
||
|
9018906193
|
9018906193
90189-06193 Grommet(For Engine Under Cover) |
90189-06193 |
from US $0.80 |
||
|
9046705107
|
9046705107
90467-05107 CLIP |
90467-05107 |
from US $1.33 |
||
