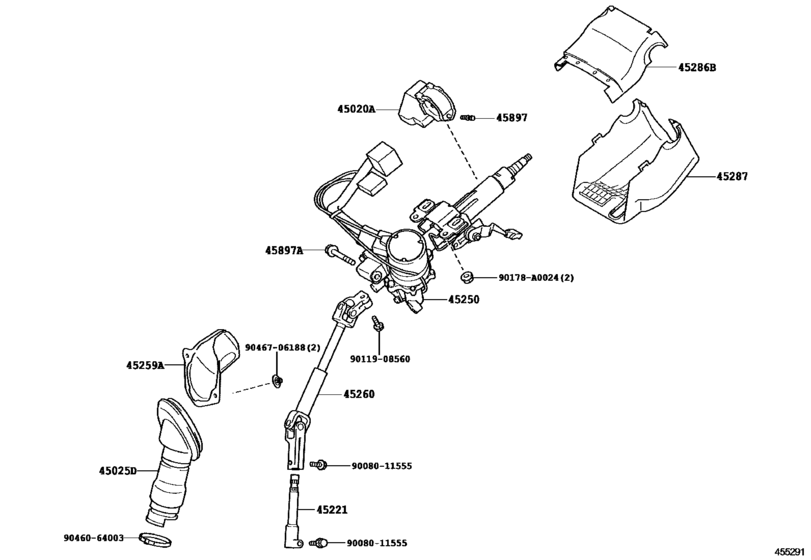

Steering Column & Shaft ([11.2008 - ] (0811- )NAP..LIMD) Diagram Toyota RAV4/VANGUARD
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- GSA33
- grade
- LIMD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- RAV4 (NAP)
- From
- 11.2008
- To
- 01.2013
- Gear Shift Type
- 5FC
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020A
|
45020A
45020-02330
Actuator Assy, Steering Lock
[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
45020-02330 |
— | ||
|
45025D
|
45025D
45025-0R020
Cover Sub-Assy, Steering Column Hole, No.1
[12.2012 - 01.2013] ASA3#,GSA3#..NAP |
45025-0R020 |
— | ||
|
45025D
|
45025D
45025-42080
Cover Sub-Assy, Steering Column Hole, No.1
[11.2008 - 12.2012] ASA3#,GSA3#..NAP |
45025-42080 |
— | ||
|
45221
|
45221
45221-42070
Shaft, Steering Intermediate
[11.2008 -] ASA3#,GSA3#..NAP |
45221-42070 |
— | ||
| replacement | |||||
|
45221
|
45221
45221-42071 Shaft, Steering Intermediate[11.2008 -] ASA3#,GSA3#..NAP |
45221-42071 |
from US $157.79 |
||
|
45250
|
45250
45250-42300
Column Assy, Steering
[11.2008 - 09.2009] ASA3#,GSA3#..NAP..LIMD |
45250-42300 |
— | ||
| replacement | |||||
|
45250
|
45250
45250-42301
Column Assy, Steering
[11.2008 - 09.2009] ASA3#,GSA3#..NAP..LIMD |
45250-42301 |
— | ||
|
45250
|
45250
45250-42301
Column Assy, Steering
[10.2009 -] ASA3#,GSA3#..NAP..LIMD |
45250-42301 |
— | ||
|
45259A
|
45259A
45259-0R010
Sheet, Column Hole Cover Silencer
[11.2008 -] ASA3#,GSA3#..NAP |
45259-0R010 |
— | ||
|
45260
|
45260
45260-42090 Shaft Assy, Steering Intermediate, No.2STEERING INTERMEDIATE, NO.2 [11.2008 -] ASA3#,GSA3#..NAP |
45260-42090 |
from US $208.01 |
||
|
45286B
|
45286B
45286-0R010-B0
Cover, Steering Column, Upr
[11.2008 - 01.2013] ASA3#,GSA3#..NAP..SPO DK.GRAY,TRIM1#; ASA3#,GSA3#..NAP..(LIMD,STD) DK.GRAY,TRIM1#,4# |
45286-0R010-B0 |
— | ||
|
45287
|
45287
45287-0R010-B0
Cover, Steering Column, Lwr
[11.2008 - 01.2013] ASA3#,GSA3#..NAP..LIMD DK.GRAY,TRIM1#,4# |
45287-0R010-B0 |
— | ||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[11.2008 -] ASA3#,GSA3#..NAP |
45897-12020 |
from US $2.89 |
||
|
45897A
|
45897A
45897-42010 Bolt, Tilt Steering Pawl Set[11.2008 -] ASA3#,GSA3#..NAP |
45897-42010 |
US $8.64 |
||
|
90178A0024
|
90178A0024
90178-A0024
New Genuine Part
|
90178-A0024 |
— | ||
|
9008011555
|
9008011555
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9046064003
|
9046064003
90460-64003 CLAMP HOSE |
90460-64003 |
US $5.28 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.56 |
||
