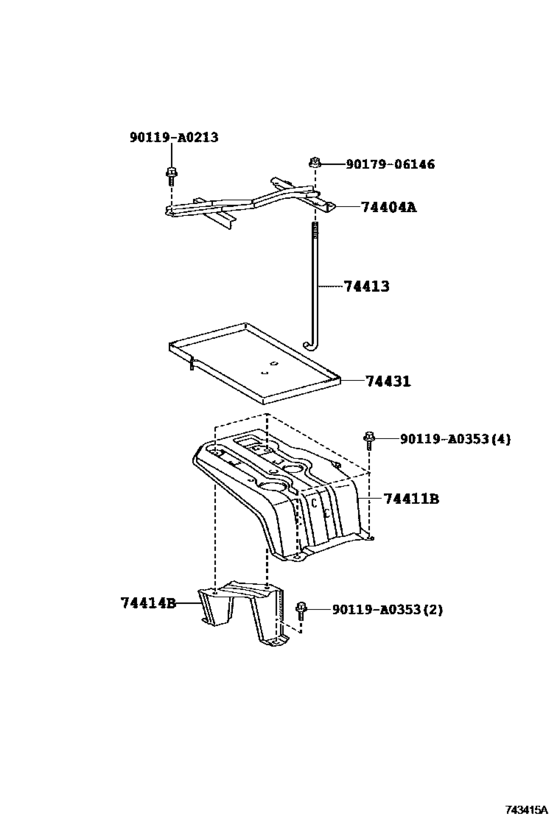

Battery Carrier ([04.2012 - ] (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404A
|
74404A
74404-0R011
Clamp Sub-Assy, Battery
[04.2012 -] QEA38 |
74404-0R011 |
— | ||
|
74411B
|
74411B
74411-0R010
Bracket, Battery, Front
[04.2012 - 05.2012] QEA38 |
74411-0R010 |
— | ||
| replacement | |||||
|
74411B
|
74411B
74411-0R030
Bracket, Battery, Front
[04.2012 - 05.2012] QEA38 |
74411-0R030 |
— | ||
|
74411B
|
74411B
74411-0R030
Bracket, Battery, Front
[06.2012 -] QEA38 |
74411-0R030 |
— | ||
|
74413
|
74413
74451-10060 Bolt, Battery Clamp[04.2012 -] QEA38 |
74451-10060 |
from US $4.17 |
||
|
74414B
|
74414B
74414-0R040
Reinforcement, Battery Bracket
[04.2012 -] QEA38 |
74414-0R040 |
— | ||
|
74431
|
74431
74431-0R010
Tray, Battery
[04.2012 -] QEA38 |
74431-0R010 |
— | ||
|
90119A0213
|
90119A0213
90119-A0213
New Genuine Part
|
90119-A0213 |
— | ||
|
90119A0353
|
90119A0353
90119-A0353
New Genuine Part
|
90119-A0353 |
— | ||
|
9017906146
|
9017906146
90179-06146 Nut |
90179-06146 |
US $1.79 |
||
