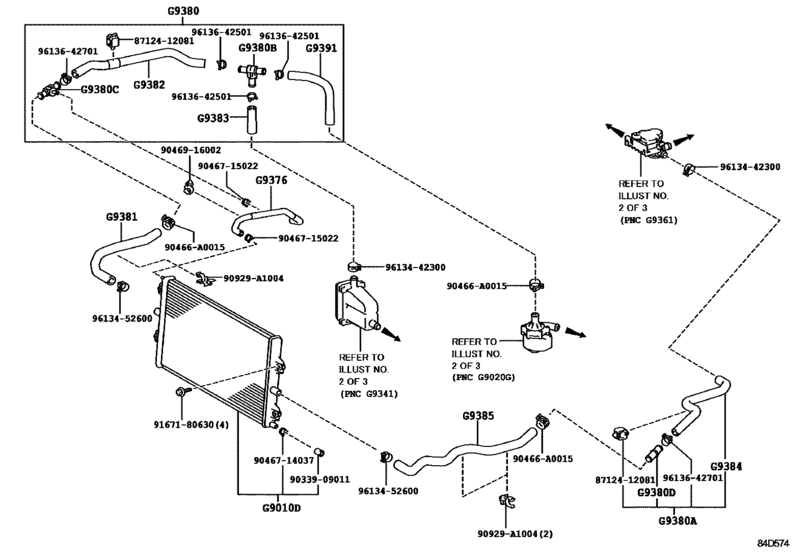

Ev Cooling ([04.2012 - ] CONDENSOR SIDE (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
90466A0015
|
90466A0015
90466-A0015
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90466-A0015 |
— | ||
|
90929A1004
|
90929A1004
90929-A1004
New Genuine Part
|
90929-A1004 |
— | ||
|
8712412081
|
8712412081
87124-12081
Clamp Or Clip(For Water Hose)
|
87124-12081 |
— | ||
|
9033909011
|
9033909011
90339-09011 Plug(For Water Outlet) |
90339-09011 |
US $1.31 |
||
|
9046714037
|
9046714037
90467-14037 Clip Or Clamp(For Ventilation Hose) |
90467-14037 |
US $2.08 |
||
|
9046715022
|
9046715022
90467-15022 Clip Or Clamp(For Ventilation Hose) |
90467-15022 |
from US $1.15 |
||
|
9046916002
|
9046916002
90469-16002 New Genuine Part |
90469-16002 |
US $1.46 |
||
|
9167180630
|
9167180630
91671-80630 Bolt(For Cylinder Head Cover) |
91671-80630 |
US $1.28 |
||
|
9613442300
|
9613442300
96134-42300 Clip Or Clamp(For Ventilation Hose) |
96134-42300 |
US $1.44 |
||
|
9613452600
|
9613452600
96134-52600 Clip Or Clamp(For Ventilation Hose) |
96134-52600 |
from US $3.14 |
||
|
9613642501
|
9613642501
96136-42501 Clip(For Ventilation Hose) |
96136-42501 |
from US $3.20 |
||
|
9613642701
|
9613642701
96136-42701 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96136-42701 |
from US $3.20 |
||
|
G9010D
|
G9010D
G9010-0R010
Radiator Assy
[04.2012 -] QEA38 |
G9010-0R010 |
— | ||
|
G9376
|
G9376
G9376-0R010
Hose, Ev Water By-Pass, No.6
[04.2012 -] QEA38 |
G9376-0R010 |
— | ||
|
G9380
|
G9380
G9380-0R010
Hose Assy, Ev Radiator, No.1
[04.2012 -] QEA38 |
G9380-0R010 |
— | ||
|
G9380A
|
G9380A
G9380-0R020
Hose Assy, Ev Radiator, No.2
[04.2012 -] QEA38 |
G9380-0R020 |
— | ||
|
G9380B
|
G9380B
90413-17004 3Way, Inverter Cooling Hose Assy, No.1[04.2012 -] QEA38 |
90413-17004 |
US $5.07 |
||
|
G9380C
|
G9380C
90413-19004
Way, 3
[04.2012 -] QEA38 |
90413-19004 |
— | ||
|
G9380D
|
G9380D
90412-19001
Way, 2
[04.2012 -] QEA38 |
90412-19001 |
— | ||
|
G9381
|
G9381
G9381-0R030
Hose, Ev Radiator, No.1
[04.2012 -] QEA38 |
G9381-0R030 |
— | ||
|
G9382
|
G9382
G9382-0R010
Hose, Ev Radiator, No.2
[04.2012 -] QEA38 |
G9382-0R010 |
— | ||
|
G9383
|
G9383
G9383-0R010
Hose, Ev Radiator, No.3
[04.2012 -] QEA38 |
G9383-0R010 |
— | ||
|
G9384
|
G9384
G9384-0R010
Hose, Ev Radiator, No.4
[04.2012 -] QEA38 |
G9384-0R010 |
— | ||
|
G9385
|
G9385
G9385-0R010
Hose, Ev Radiator, No.5
[04.2012 -] QEA38 |
G9385-0R010 |
— | ||
|
G9391
|
G9391
G9391-0R010
Hose, Ev Water Pump, No.1
[04.2012 -] QEA38 |
G9391-0R010 |
— |
