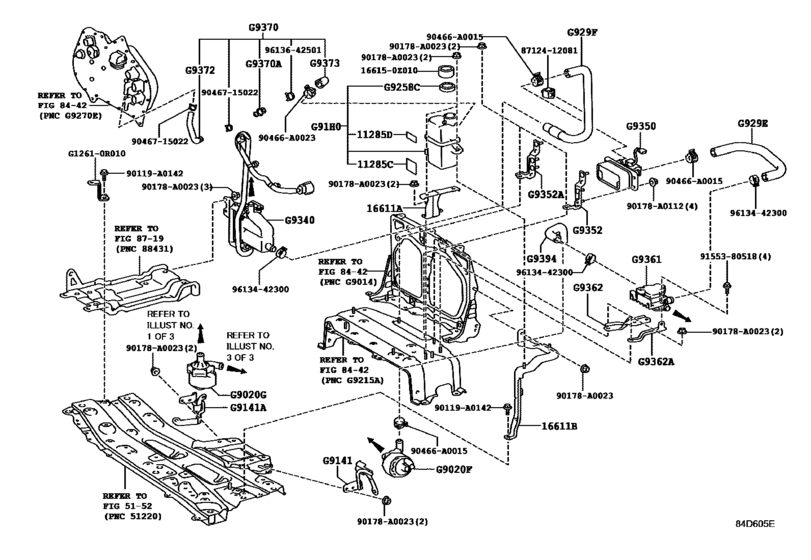

Ev Cooling ([04.2012 - ] DC DC CONVERTER SIDE (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11285C
|
11285C
11285-10020
Label, Coolant System Information
[04.2012 -] EM..QEA38 |
11285-10020 |
— | ||
|
11285D
|
11285D
11285-10030
Label, Coolant System Caution
[04.2012 -] EM..QEA38 |
11285-10030 |
— | ||
|
16611A
|
16611A
16611-0Z010
Bracket, Battery Reserve Tank, No.1
[04.2012 - 08.2014] EM..QEA38 |
16611-0Z010 |
— | ||
|
16611B
|
16611B
16611-0Z020
Bracket, Battery Reserve Tank, No.2
[04.2012 - 08.2014] EM..QEA38 |
16611-0Z020 |
— | ||
|
90119A0142
|
90119A0142
90119-A0142
New Genuine Part
|
90119-A0142 |
— | ||
|
90178A0023
|
90178A0023
90178-A0023
Nut, Wire Adjusting, No.2
|
90178-A0023 |
— | ||
|
90178A0112
|
90178A0112
90178-A0112
New Genuine Part
|
90178-A0112 |
— | ||
|
90466A0015
|
90466A0015
90466-A0015
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90466-A0015 |
— | ||
|
90466A0023
|
90466A0023
90466-A0023
Clip(For Water By-Pass Hose Assy)
|
90466-A0023 |
— | ||
|
8712412081
|
8712412081
87124-12081
Clamp Or Clip(For Water Hose)
|
87124-12081 |
— | ||
|
9046715022
|
9046715022
90467-15022 Clip Or Clamp(For Ventilation Hose) |
90467-15022 |
from US $1.15 |
||
|
9155380518
|
9155380518
91553-80518
New Genuine Part
|
91553-80518 |
— | ||
|
9613442300
|
9613442300
96134-42300 Clip Or Clamp(For Ventilation Hose) |
96134-42300 |
US $1.44 |
||
|
9613642501
|
9613642501
96136-42501 Clip(For Ventilation Hose) |
96136-42501 |
from US $3.20 |
||
|
G12610R010
|
G12610R010
G1261-0R010
Bracket, Motor Cooling Pipe, No.1
|
G1261-0R010 |
— | ||
|
G91H0
|
G91H0
G91H0-42030
Tank Assy, Battery Reserve
[04.2012 -] QEA38 |
G91H0-42030 |
— | ||
|
G929E
|
G929E
G929E-0R010
Hose, Ev Battery, No.5
[04.2012 -] QEA38 |
G929E-0R010 |
— | ||
|
G929F
|
G929F
G929F-0R020
Hose, Ev Battery, No.6
[04.2012 -] QEA38 |
G929F-0R020 |
— | ||
|
G9020F
|
G9020F
G9020-0R020
Pump Assy, Water W/motor & Insulator, Lh
[04.2012 -] QEA38 |
G9020-0R020 |
— | ||
|
G9020G
|
G9020G
G9020-0R030
Pump Assy, Water W/motor & Insulator, Rh
[04.2012 -] QEA38 |
G9020-0R030 |
— | ||
|
G9141
|
G9141
G9141-0R020
Bracket, Ev Water Pump, Lh
[04.2012 -] QEA38 |
G9141-0R020 |
— | ||
|
G9141A
|
G9141A
G9141-0R030
Bracket, Ev Water Pump, Rh
[04.2012 -] QEA38 |
G9141-0R030 |
— | ||
|
G9258C
|
G9258C
G9258-47011 Cap, Inverter Reserve Tank[04.2012 -] QEA38 |
G9258-47011 |
US $15.72 |
||
|
G9340
|
G9340
G9340-0R010
Heater Assy, Battery Coolant
[04.2012 -] QEA38 |
G9340-0R010 |
— | ||
|
G9350
|
G9350
G9350-0R010
Cooler Assy, Battery Coolant
[04.2012 - 08.2014] QEA38 |
G9350-0R010 |
— | ||
|
G9352
|
G9352
G9352-0R010
Bracket, Battery Coolant Cooler, No.1
[04.2012 -] QEA38 |
G9352-0R010 |
— | ||
|
G9352A
|
G9352A
G9352-0R020
Bracket, Battery Coolant Cooler, No.2
[04.2012 -] QEA38 |
G9352-0R020 |
— | ||
|
G9361
|
G9361
G9361-0R010
Way, Switching Valve
[04.2012 -] QEA38 |
G9361-0R010 |
— | ||
|
G9362
|
G9362
G9362-0R020
Bracket, Way Coolant Valve, Rh
[04.2012 -] QEA38 |
G9362-0R020 |
— | ||
|
G9362A
|
G9362A
G9362-0R030
Bracket, Way Coolant Valve, Lh
[04.2012 -] QEA38 |
G9362-0R030 |
— | ||
|
G9370
|
G9370
G9370-0R010
Hose Assy, Ev Water By-Pass
[04.2012 -] QEA38 |
G9370-0R010 |
— | ||
|
G9370A
|
G9370A
90412-17002
Way, 2
[04.2012 -] QEA38 |
90412-17002 |
— | ||
|
G9372
|
G9372
G9372-0R010
Hose, Ev Water By-Pass, No.2
[04.2012 -] QEA38 |
G9372-0R010 |
— | ||
|
G9373
|
G9373
G9373-0R010
Hose, Ev Water By-Pass, No.3
[04.2012 -] QEA38 |
G9373-0R010 |
— | ||
|
G9394
|
G9394
G9394-0R010
Hose, Ev Water Pump, No.4
[04.2012 -] QEA38 |
