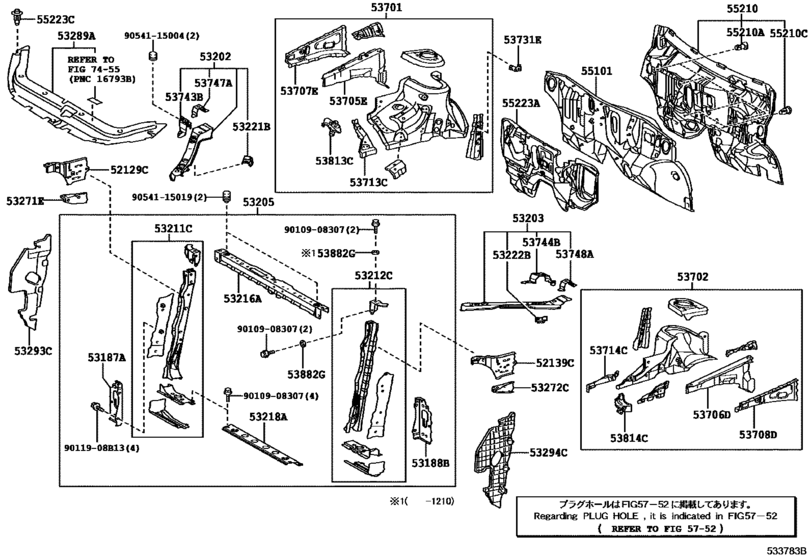

Front Fender Apron & Dash Panel ([04.2012 - ] (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52129C
|
52129C
52129-0R010
Arm, Front Bumper, Upper No.2 Rh
[04.2012 -] QEA38 |
52129-0R010 |
— | ||
|
52139C
|
52139C
52139-0R010
Arm, Front Bumper, Upper No.2 Lh
[04.2012 -] QEA38 |
52139-0R010 |
— | ||
|
53187A
|
53187A
53187-0R010
Stay, Radiator Support, Rh
[04.2012 -] QEA38 |
53187-0R010 |
— | ||
|
53188B
|
53188B
53188-0R010
Stay, Radiator Support, Lh
[04.2012 -] QEA38 |
53188-0R010 |
— | ||
|
53202
|
53202
53202-0R010
Support Sub-Assy, Radiator, Rh
[04.2012 -] QEA38 |
53202-0R010 |
— | ||
|
53203
|
53203
53203-0R010
Support Sub-Assy, Radiator, Lh
[04.2012 -] QEA38 |
53203-0R010 |
— | ||
|
53205
|
53205
53205-0R010
Support Sub-Assy, Radiator, Upper
[04.2012 -] QEA38 |
53205-0R010 |
— | ||
|
53211C
|
53211C
53211-0R901
Support, Radiator, Rh
[04.2012 -] QEA38 |
53211-0R901 |
— | ||
|
53212C
|
53212C
53212-0R901
Support, Radiator, Lh
[04.2012 -] QEA38 |
53212-0R901 |
— | ||
|
53216A
|
53216A
53216-0R901
Support, Radiator, Upper
[04.2012 -] QEA38 |
53216-0R901 |
— | ||
|
53218A
|
53218A
53218-0R010
Support, Radiator, Lower
[04.2012 -] QEA38 |
53218-0R010 |
— | ||
|
53221B
|
53221B
53221-0R010
Brace, Radiator Support Apron, Rh
[04.2012 -] QEA38 |
53221-0R010 |
— | ||
|
53222B
|
53222B
53222-0R010
Brace, Radiator Support Apron, Lh
[04.2012 -] QEA38 |
53222-0R010 |
— | ||
|
53271E
|
53271E
53271-0R010
Bracket, Headlamp Mounting, Rh
[04.2012 -] QEA38 |
53271-0R010 |
— | ||
|
53272C
|
53272C
53272-0R010
Bracket, Headlamp Mounting, Lh
[04.2012 -] QEA38 |
53272-0R010 |
— | ||
|
53289A
|
53289A
53289-0R010
Cover, Radiator Support Opening
[12.2012 - 08.2014] QEA38 |
53289-0R010 |
— | ||
|
53289A
|
53289A
53289-0R020
Cover, Radiator Support Opening
[04.2012 - 11.2012] QEA38 |
53289-0R020 |
— | ||
|
53293C
|
53293C
53293-0R030
Deflector, Radiator Side, Rh
[04.2012 -] QEA38 |
53293-0R030 |
— | ||
|
53294C
|
53294C
53294-0R030
Deflector, Radiator Side, Lh
[04.2012 -] QEA38 |
53294-0R030 |
— | ||
|
53701
|
53701
53701-0R010
Apron Sub-Assy, Front Fender, Rh
[04.2012 - 08.2014] QEA38 |
53701-0R010 |
— | ||
|
53702
|
53702
53702-0R040
Apron Sub-Assy, Front Fender, Lh
[04.2012 - 08.2014] QEA38 |
53702-0R040 |
— | ||
|
53705E
|
53705E
53705-0R011
Member Sub-Assy, Front Apron To Cowl Side, Rh
[04.2012 -] QEA38 |
53705-0R011 |
— | ||
|
53706D
|
53706D
53706-0R011
Member Sub-Assy, Front Apron To Cowl Side, Lh
[04.2012 -] QEA38 |
53706-0R011 |
— | ||
|
53707E
|
53707E
53707-0R010
Apron Sub-Assy, Fender Side, Rh
[04.2012 -] QEA38 |
53707-0R010 |
— | ||
|
53708D
|
53708D
53708-0R010
Apron Sub-Assy, Fender Side, Lh
[04.2012 -] QEA38 |
53708-0R010 |
— | ||
|
53713C
|
53713C
53713-0R010
Extension, Front Fender Apron, Front Rh
[04.2012 -] QEA38 |
53713-0R010 |
— | ||
|
53714C
|
53714C
53714-0R010
Extension, Front Fender Apron, Front Lh
[04.2012 - 04.2014] QEA38 |
53714-0R010 |
— | ||
| replacement | |||||
|
53714C
|
53714C
53714-0R011
Extension, Front Fender Apron, Front Lh
[04.2012 - 04.2014] QEA38 |
53714-0R011 |
— | ||
|
53714C
|
53714C
53714-0R011
Extension, Front Fender Apron, Front Lh
[05.2014 - 08.2014] QEA38 |
53714-0R011 |
— | ||
|
53731E
|
53731E
53733-0R010
Patch, Front Fender Apron
[04.2012 - 08.2014] QEA38 |
53733-0R010 |
— | ||
|
53743B
|
53743B
53743-0R010
Reinforcement, Front Fender Apron, Front Rh
[04.2012 -] QEA38 |
53743-0R010 |
— | ||
|
53744B
|
53744B
53744-0R010
Reinforcement, Front Fender Apron, Front Lh
[04.2012 -] QEA38 |
53744-0R010 |
— | ||
|
53747A
|
53747A
53747-0R010
Extension, Apron Fender Side, Rh
[04.2012 -] QEA38 |
53747-0R010 |
— | ||
|
53748A
|
53748A
53748-0R010
Extension, Apron Fender Side, Lh
[04.2012 -] QEA38 |
53748-0R010 |
— | ||
|
53813C
|
53813C
53813-0R010
Extension, Front Fender, Rh
[04.2012 -] QEA38 |
53813-0R010 |
— | ||
|
53814C
|
53814C
53814-0R010
Extension, Front Fender, Lh
[04.2012 -] QEA38 |
53814-0R010 |
— | ||
|
53882G
|
53882G
53882-30040 Seal, Radiator Support, Upper[04.2012 - 10.2012] QEA38 |
53882-30040 |
US $1.10 |
||
|
55101
|
55101
55101-0R010
Panel Sub-Assy, Dash
[04.2012 - 08.2014] QEA38 |
55101-0R010 |
— | ||
|
55210
|
55210
55210-0R010
Insulator Assy, Dash Panel
[04.2012 -] QEA38 |
55210-0R010 |
— | ||
|
55210A
|
55210A
90467-11122 Clip[04.2012 -] QEA38 |
90467-11122 |
US $1.60 |
||
|
55210C
|
55210C
90467-13079 Clip[04.2012 -] QEA38 |
90467-13079 |
US $1.92 |
||
|
55223A
|
55223A
55223-0R010
Insulator, Dash Panel, Outer
[04.2012 - 08.2012] QEA38 |
55223-0R010 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-0R011
Insulator, Dash Panel, Outer
[04.2012 - 08.2012] QEA38 |
55223-0R011 |
— | ||
|
55223A
|
55223A
55223-0R011
Insulator, Dash Panel, Outer
[09.2012 -] QEA38 |
55223-0R011 |
— | ||
|
55223C
|
55223C
90467-10170-C0 Clip(For Front Fender Apron Seal)[04.2012 - 08.2014] QEA38 BLACK |
90467-10170-C0 |
from US $1.01 |
||
|
9011908B13
|
9011908B13
90119-08B13 BOLT WWASHER |
90119-08B13 |
US $1.44 |
||
|
9010908307
|
9010908307
90109-08307 New Genuine Part |
90109-08307 |
US $1.28 |
||
|
9054115004
|
9054115004
90541-15004 Cushion, Hood Bumper |
90541-15004 |
from US $3.38 |
||
|
9054115019
|
9054115019
90541-15019 Cushion, Hood Bumper |
90541-15019 |
from US $3.20 |
||
