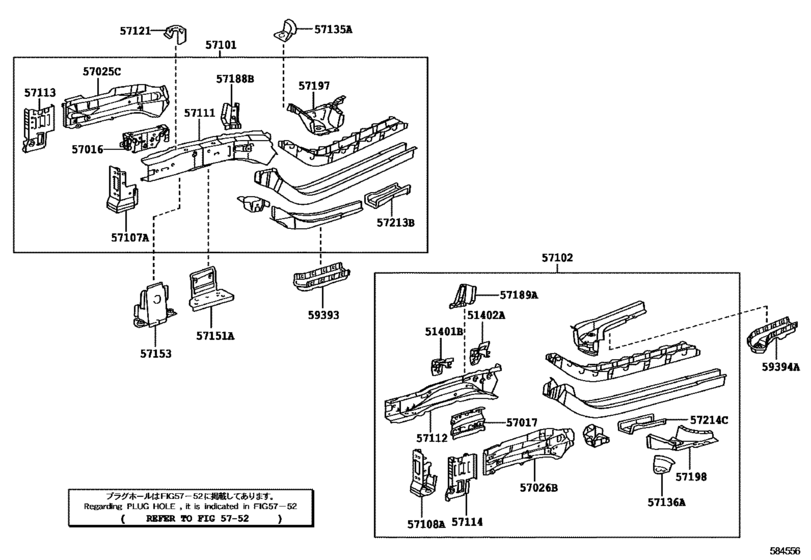

Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51401B
|
51401B
51401-0R010
Bracket Sub-Assy, Engine Front Mounting
[04.2012 -] QEA38 |
51401-0R010 |
— | ||
|
51402A
|
51402A
51402-0R010
Bracket Sub-Assy, Engine Front Mounting, Lh
[04.2012 -] QEA38 |
51402-0R010 |
— | ||
|
57016
|
57016
57016-0R010
Reinforcement Sub-Assy, Front Side Member, Rh
[04.2012 -] QEA38 |
57016-0R010 |
— | ||
|
57017
|
57017
57017-0R010
Reinforcement Sub-Assy, Front Side Member, Lh
[04.2012 -] QEA38 |
57017-0R010 |
— | ||
|
57025C
|
57025C
57025-0R010
Member Sub-Assy, Front Side, Outer Rh
[04.2012 -] QEA38 |
57025-0R010 |
— | ||
|
57026B
|
57026B
57026-0R010
Member Sub-Assy, Front Side, Outer Lh
[04.2012 -] QEA38 |
57026-0R010 |
— | ||
|
57101
|
57101
57101-0R030
Member Sub-Assy, Front Side, Rh
[04.2012 - 08.2014] QEA38 |
57101-0R030 |
— | ||
|
57102
|
57102
57102-0R040
Member Sub-Assy, Front Side, Lh
[04.2012 - 08.2014] QEA38 |
57102-0R040 |
— | ||
|
57107A
|
57107A
57107-0R010
Plate Sub-Assy, Front Side Member, No.2 Rh
[04.2012 - 05.2012] QEA38 |
57107-0R010 |
— | ||
| replacement | |||||
|
57107A
|
57107A
57107-0R011
Plate Sub-Assy, Front Side Member, No.2 Rh
[04.2012 - 05.2012] QEA38 |
57107-0R011 |
— | ||
|
57107A
|
57107A
57107-0R011
Plate Sub-Assy, Front Side Member, No.2 Rh
[06.2012 -] QEA38 |
57107-0R011 |
— | ||
|
57108A
|
57108A
57108-0R010
Plate Sub-Assy, Front Side Member, No.2 Lh
[04.2012 - 05.2012] QEA38 |
57108-0R010 |
— | ||
| replacement | |||||
|
57108A
|
57108A
57108-0R011
Plate Sub-Assy, Front Side Member, No.2 Lh
[04.2012 - 05.2012] QEA38 |
57108-0R011 |
— | ||
|
57108A
|
57108A
57108-0R011
Plate Sub-Assy, Front Side Member, No.2 Lh
[06.2012 -] QEA38 |
57108-0R011 |
— | ||
|
57111
|
57111
57111-0R010
Member, Front Side, Rh
[04.2012 -] QEA38 |
57111-0R010 |
— | ||
|
57112
|
57112
57112-0R011
Member, Front Side, Lh
[04.2012 -] QEA38 |
57112-0R011 |
— | ||
|
57113
|
57113
57113-0R010
Extension, Front Side Member, Rh
[04.2012 -] QEA38 |
57113-0R010 |
— | ||
|
57114
|
57114
57114-0R010
Extension, Front Side Member, Lh
[04.2012 -] QEA38 |
57114-0R010 |
— | ||
|
57121
|
57121
57121-0R010
Bracket, Front Body Mounting, Rh
[04.2012 - 08.2014] QEA38 |
57121-0R010 |
— | ||
|
57135A
|
57135A
57135-0R010
Bracket, Front Floor Side, Rh
[04.2012 - 08.2014] QEA38 |
57135-0R010 |
— | ||
|
57136A
|
57136A
57136-0R010
Bracket, Front Floor Side, Lh
[04.2012 - 08.2014] QEA38 |
57136-0R010 |
— | ||
|
57151A
|
57151A
57153-0R010
Reinforcement, Front Side Member, No.1 Rh
[04.2012 - 08.2014] QEA38 |
57153-0R010 |
— | ||
|
57153
|
57153
57154-0R010
Reinforcement, Front Side Member, No.2 Rh
[04.2012 - 08.2014] QEA38 |
57154-0R010 |
— | ||
|
57188B
|
57188B
57188-0R010
Gusset, Front Side Member To Spring Support, Rh
[04.2012 -] QEA38 |
57188-0R010 |
— | ||
|
57189A
|
57189A
57189-0R010
Gusset, Front Side Member To Spring Support, Lh
[04.2012 -] QEA38 |
57189-0R010 |
— | ||
|
57197
|
57197
57197-0R010
Box, Torque, Front Rh
[04.2012 -] QEA38 |
57197-0R010 |
— | ||
|
57198
|
57198
57198-0R010
Box, Torque, Front Lh
[04.2012 -] QEA38 |
57198-0R010 |
— | ||
|
57213B
|
57213B
57217-0R010
Extension, Front Side Member, No.2 Rh
[04.2012 -] QEA38 |
57217-0R010 |
— | ||
|
57214C
|
57214C
57228-0R010
Extension, Front Side Member, No.2 Lh
[04.2012 -] QEA38 |
57228-0R010 |
— | ||
|
59393
|
59393
59503-0R010
Bracket, Floor Step Support
[04.2012 - 08.2014] QEA38 |
59503-0R010 |
— | ||
|
59394A
|
59394A
59504-0R010
Bracket, Floor Step Support, No.2
[04.2012 - 08.2014] QEA38 |
59504-0R010 |
— | ||
