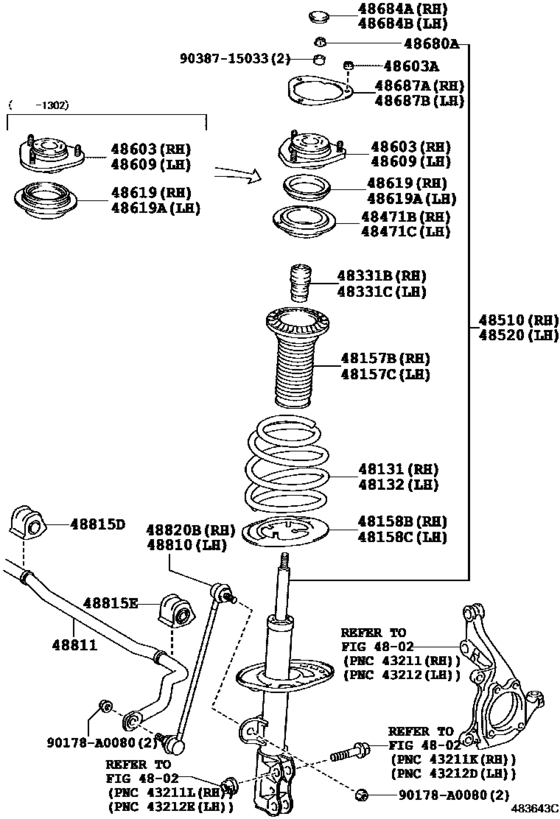

Front Spring & Shock Absorber ([04.2012 - ] (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-0R010
Spring, Front Coil, Rh
[04.2012 -] QEA38 |
48131-0R010 |
— | ||
|
48132
|
48132
48131-0R010
Spring, Front Coil, Rh
[04.2012 -] QEA38 |
48131-0R010 |
— | ||
|
48157B
|
48157B
48157-0R010
Insulator, Front Coil Spring, Upper Rh
[04.2012 -] QEA38 |
48157-0R010 |
— | ||
|
48157C
|
48157C
48157-0R010
Insulator, Front Coil Spring, Upper Rh
[04.2012 -] QEA38 |
48157-0R010 |
— | ||
|
48158B
|
48158B
48158-42010 Insulator, Front Coil Spring, Lower[04.2012 -] QEA38 |
48158-42010 |
from US $11.60 |
||
|
48158C
|
48158C
48158-42010 Insulator, Front Coil Spring, Lower[04.2012 -] QEA38 |
48158-42010 |
from US $11.60 |
||
|
48331B
|
48331B
48331-0R010
Bumper, Front Spring, Rh
[04.2012 -] QEA38 |
48331-0R010 |
— | ||
|
48331C
|
48331C
48331-0R010
Bumper, Front Spring, Rh
[04.2012 -] QEA38 |
48331-0R010 |
— | ||
|
48471B
|
48471B
48471-0R010
Seat, Front Coil Spring, Upper Rh
[02.2013 -] QEA38 |
48471-0R010 |
— | ||
|
48471C
|
48471C
48471-0R010
Seat, Front Coil Spring, Upper Rh
[02.2013 -] QEA38 |
48471-0R010 |
— | ||
|
48510
|
48510
48510-09062
Absorber Assy, Shock, Front Rh
[04.2012 - 08.2014] QEA38 MARK 48510-0R061 |
48510-09062 |
— | ||
|
48520
|
48520
48520-09062
Absorber Assy, Shock, Front Lh
[04.2012 - 08.2014] QEA38 MARK 48520-0R061 |
48520-09062 |
— | ||
|
48603
|
48603
48609-0R010
Support Sub-Assy, Front Suspension, Rh
[04.2012 - 02.2013] QEA38 |
48609-0R010 |
— | ||
|
48603
|
48603
48609-0R030
Support Sub-Assy, Front Suspension, Rh
[02.2013 -] QEA38 |
48609-0R030 |
— | ||
|
48603A
|
48603A
90178-A0090
Nut(For Front Suspension Support)
[04.2012 -] QEA38 |
90178-A0090 |
— | ||
|
48609
|
48609
48609-0R010
Support Sub-Assy, Front Suspension, Rh
[04.2012 - 02.2013] QEA38 |
48609-0R010 |
— | ||
|
48609
|
48609
48609-0R030
Support Sub-Assy, Front Suspension, Rh
[02.2013 -] QEA38 |
48609-0R030 |
— | ||
|
48619
|
48619
48619-28010 Bearing, Strut Mounting[02.2013 -] QEA38 |
48619-28010 |
from US $13.12 |
||
|
48619
|
48619
48619-42010 Bearing, Strut Mounting, Rh[04.2012 - 02.2013] QEA38 |
48619-42010 |
from US $43.93 |
||
|
48619A
|
48619A
48619-28010 Bearing, Strut Mounting[02.2013 -] QEA38 |
48619-28010 |
from US $13.12 |
||
|
48619A
|
48619A
48619-42010 Bearing, Strut Mounting, Rh[04.2012 - 02.2013] QEA38 |
48619-42010 |
from US $43.93 |
||
|
48680A
|
48680A
90177-14005 Nut(For Front Support To Front Shock Absorber)[04.2012 -] QEA38 |
90177-14005 |
US $2.15 |
||
|
48684A
|
48684A
48684-0R010
Cover, Front Suspension Support Dust, Rh
[04.2012 -] QEA38 |
48684-0R010 |
— | ||
|
48684B
|
48684B
48684-0R010
Cover, Front Suspension Support Dust, Rh
[04.2012 -] QEA38 |
48684-0R010 |
— | ||
|
48687A
|
48687A
48687-0R010
Plate, Front Suspension Support, Rh
[04.2012 -] QEA38 |
48687-0R010 |
— | ||
|
48687B
|
48687B
48687-0R010
Plate, Front Suspension Support, Rh
[04.2012 -] QEA38 |
48687-0R010 |
— | ||
|
48810
|
48810
48820-0R010
Link Assy, Front Stabilizer, Lh
[04.2012 -] QEA38 |
48820-0R010 |
— | ||
|
48811
|
48811
48811-0R010
Bar, Stabilizer, Front
[04.2012 - 10.2013] QEA38 |
48811-0R010 |
— | ||
| replacement | |||||
|
48811
|
48811
48811-0R011
Bar, Stabilizer, Front
[04.2012 - 10.2013] QEA38 |
48811-0R011 |
— | ||
|
48811
|
48811
48811-0R011
Bar, Stabilizer, Front
[11.2013 -] QEA38 |
48811-0R011 |
— | ||
|
48815D
|
48815D
48815-0R020
Bush, Front Stabilizer Bar, No.1
[04.2012 -] QEA38 |
48815-0R020 |
— | ||
|
48815E
|
48815E
48815-0R010
Bush, Front Stabilizer Bar, No.1
[04.2012 -] QEA38 |
48815-0R010 |
— | ||
|
48820B
|
48820B
48820-0R010
Link Assy, Front Stabilizer, Lh
[04.2012 -] QEA38 |
48820-0R010 |
— | ||
|
90178A0080
|
90178A0080
90178-A0080
Nut(For Front Stabilizer Link)
|
90178-A0080 |
— | ||
|
9038715033
|
9038715033
90387-15033 COLLAR |
90387-15033 |
from US $3.28 |
||
