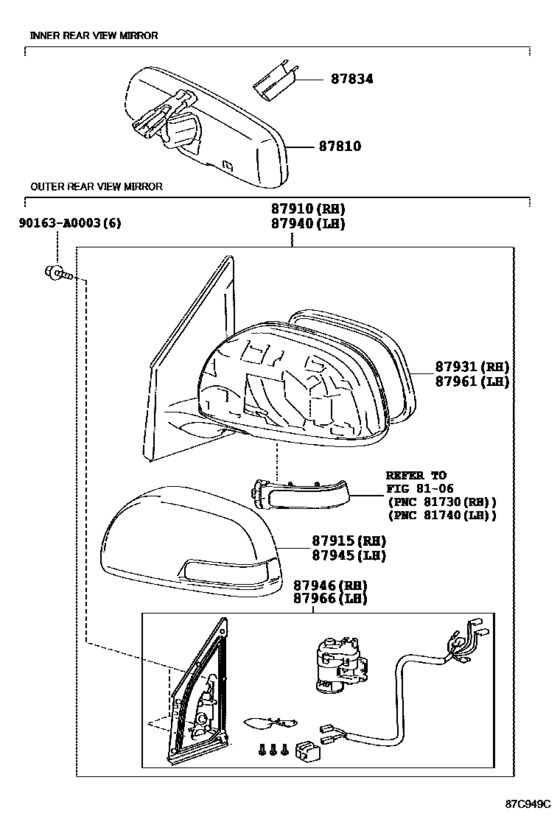

Mirror ([04.2012 - ] (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-0R020
Mirror Assy, Inner Rear View
[04.2012 - 08.2014] QEA38 |
87810-0R020 |
— | ||
|
87834
|
87834
87818-04010 Cover, Inner Rear View Mirror Stay HolderINNER REAR VIEW MIRROR STAY HOLDER [04.2012 -] QEA38 |
87818-04010 |
from US $5.92 |
||
|
87910
|
87910
87910-42C90-A0
Mirror Assy, Outer Rear View, Rh
[04.2012 - 08.2014] QEA38 SUPER WHITE 2,040 |
87910-42C90-A0 |
— | ||
|
87910
|
87910
87910-42C90-A1
Mirror Assy, Outer Rear View, Rh
[04.2012 - 08.2014] QEA38 WHITE PEARL CS.,070 |
87910-42C90-A1 |
— | ||
|
87910
|
87910
87910-42C90-B0
Mirror Assy, Outer Rear View, Rh
[04.2012 - 08.2014] QEA38 SILVER ME.,1F7 |
87910-42C90-B0 |
— | ||
|
87910
|
87910
87910-42C90-J0
Mirror Assy, Outer Rear View, Rh
[04.2012 - 08.2014] QEA38 GRAYISH BLUE M.M.,8V5 |
87910-42C90-J0 |
— | ||
|
87915
|
87915
87915-33020-A0 Cover, Outer Mirror, Rh[04.2012 - 08.2014] QEA38 SUPER WHITE 2,040 |
87915-33020-A0 |
US $35.37 |
||
|
87915
|
87915
87915-33020-A1 Cover, Outer Mirror, Rh[04.2012 - 08.2014] QEA38 WHITE PEARL CS.,070 |
87915-33020-A1 |
from US $39.53 |
||
|
87915
|
87915
87915-33020-B0 Cover, Outer Mirror, Rh[04.2012 - 08.2014] QEA38 SILVER ME.,1F7 |
87915-33020-B0 |
US $51.74 |
||
|
87915
|
87915
87915-33020-J4
Cover, Outer Mirror, Rh
[04.2012 - 08.2014] QEA38 GRAYISH BLUE M.M.,8V5 |
87915-33020-J4 |
— | ||
|
87931
|
87931
87931-42C90
Outer Mirror, Rh
[04.2012 -] QEA38 |
87931-42C90 |
— | ||
|
87940
|
87940
87940-42C60-A0
Mirror Assy, Outer Rear View, Lh
[04.2012 - 08.2014] QEA38 SUPER WHITE 2,040 |
87940-42C60-A0 |
— | ||
|
87940
|
87940
87940-42C60-A1
Mirror Assy, Outer Rear View, Lh
[04.2012 - 08.2014] QEA38 WHITE PEARL CS.,070 |
87940-42C60-A1 |
— | ||
|
87940
|
87940
87940-42C60-B0
Mirror Assy, Outer Rear View, Lh
[04.2012 - 08.2014] QEA38 SILVER ME.,1F7 |
87940-42C60-B0 |
— | ||
|
87940
|
87940
87940-42C60-J0
Mirror Assy, Outer Rear View, Lh
[04.2012 - 08.2014] QEA38 GRAYISH BLUE M.M.,8V5 |
87940-42C60-J0 |
— | ||
|
87945
|
87945
87945-33020-A0 Cover, Outer Mirror, Lh[04.2012 - 08.2014] QEA38 SUPER WHITE 2,040 |
87945-33020-A0 |
US $39.53 |
||
|
87945
|
87945
87945-33020-A1 Cover, Outer Mirror, Lh[04.2012 - 08.2014] QEA38 WHITE PEARL CS.,070 |
87945-33020-A1 |
from US $39.10 |
||
|
87945
|
87945
87945-33020-B0 Cover, Outer Mirror, Lh[04.2012 - 08.2014] QEA38 SILVER ME.,1F7 |
87945-33020-B0 |
from US $38.57 |
||
|
87945
|
87945
87945-33020-J4
Cover, Outer Mirror, Lh
[04.2012 - 08.2014] QEA38 GRAYISH BLUE M.M.,8V5 |
87945-33020-J4 |
— | ||
|
87946
|
87946
87946-42C90
Retractor, Outer Mirror, Rh
[04.2012 -] QEA38 |
87946-42C90 |
— | ||
|
87961
|
87961
87961-42C60
Mirror Outer, Lh
[04.2012 -] QEA38 |
87961-42C60 |
— | ||
|
87966
|
87966
87966-42C60
Retractor, Outer Mirror, Lh
[04.2012 -] QEA38 |
87966-42C60 |
— | ||
|
90163A0003
|
90163A0003
90163-A0003
New Genuine Part
|
90163-A0003 |
— |
