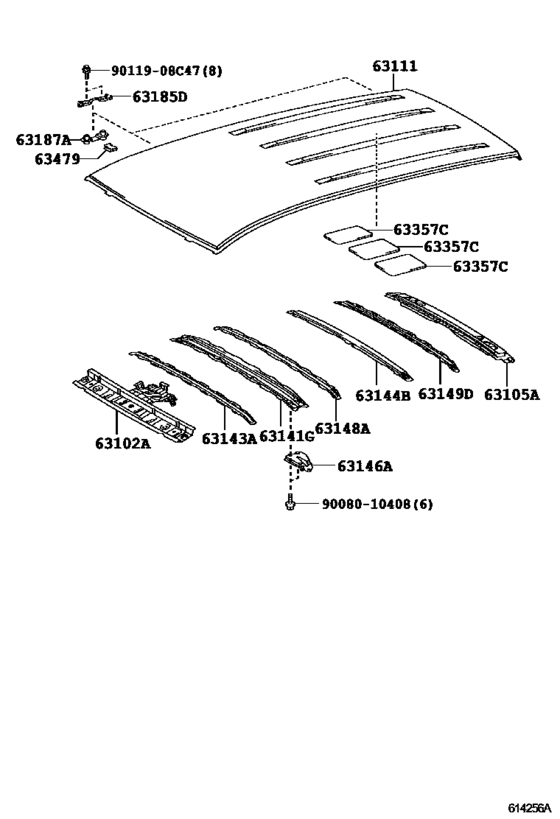

Roof Panel & Back Panel ([04.2012 - ] (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63102-0R901
Panel Sub-Assy, Windshield Header
[04.2012 -] QEA38 |
63102-0R901 |
— | ||
|
63105A
|
63105A
63105-0R010
Frame Sub-Assy, Back Door Opening
[04.2012 -] QEA38 |
63105-0R010 |
— | ||
|
63111
|
63111
63111-0R041
Panel, Roof
[04.2012 -] QEA38 |
63111-0R041 |
— | ||
|
63141G
|
63141G
63141-0R010
Reinforcement, Roof Panel, No.1
[04.2012 -] QEA38 |
63141-0R010 |
— | ||
|
63143A
|
63143A
63143-0R010
Reinforcement, Roof Panel
[04.2012 -] QEA38 |
63143-0R010 |
— | ||
|
63144B
|
63144B
63144-0R010
Reinforcement, Roof Panel, No.4
[04.2012 -] QEA38 |
63144-0R010 |
— | ||
|
63146A
|
63146A
63146-0R010
Bracket, Roof Panel Reinforcement, No.1
[04.2012 -] QEA38 |
63146-0R010 |
— | ||
|
63148A
|
63148A
63148-0R020
Reinforcement, Roof Panel, No.7
[04.2012 -] QEA38 |
63148-0R020 |
— | ||
|
63149D
|
63149D
63149-0R010
Reinforcement, Roof Panel, No.8
[04.2012 -] QEA38 |
63149-0R010 |
— | ||
|
63185D
|
63185D
63185-0R010
Bracket, Roof Rack, Front
[04.2012 - 05.2014] QEA38 |
63185-0R010 |
— | ||
|
63185D
|
63185D
63185-42020 Bracket, Roof Rack, Front Rh[05.2014 - 08.2014] QEA38 (J) |
63185-42020 |
from US $2.42 |
||
|
63187A
|
63187A
63187-0R010
Bracket, Roof Rack, Rear
[04.2012 -] QEA38 |
63187-0R010 |
— | ||
|
63357C
|
63357C
63357-0R010
Silencer, Roof
[04.2012 -] QEA38 |
63357-0R010 |
— | ||
|
63479
|
63479
63479-0E010
Clip(Bracket, Roof Rack)
[04.2012 -] QEA38 |
63479-0E010 |
— | ||
|
9011908C47
|
9011908C47
90119-08C47 BOLT WWASHER |
90119-08C47 |
from US $0.84 |
||
|
9008010408
|
9008010408
90080-10408
New Genuine Part
|
90080-10408 |
— |
