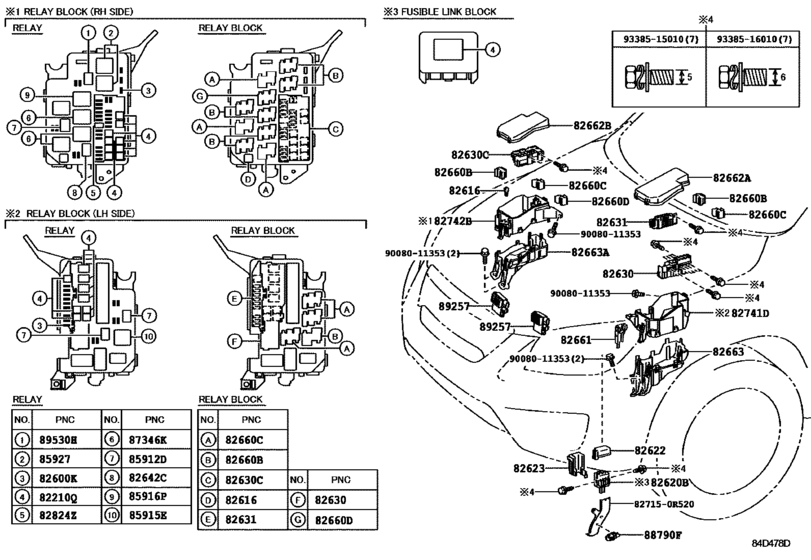

Switch & Relay & Computer ([04.2012 - ] MOTOR ROOM (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210Q
|
82210Q
90982-08202 Fusible Link[04.2012 - 08.2014] QEA38 60A,TERMINAL:MALE |
90982-08202 |
US $12.54 |
||
|
82210Q
|
82210Q
90982-08286 Fusible Link[04.2012 - 08.2014] QEA38 140A,TERMINAL:MALE |
90982-08286 |
from US $8.60 |
||
|
82210Q
|
82210Q
90982-08294 Fusible Link[04.2012 - 08.2014] QEA38 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.99 |
||
|
82210Q
|
82210Q
90982-08295 Fusible Link[04.2012 - 08.2014] QEA38 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.99 |
||
|
82210Q
|
82210Q
90982-08296 Fusible Link[04.2012 - 08.2014] QEA38 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.99 |
||
|
82600K
|
82600K
90982-09019 Instrument Panel Fuse[04.2012 - 08.2014] QEA38 5A,MINI FUSE |
90982-09019 |
from US $0.82 |
||
|
82600K
|
82600K
90982-09020 Fusible Link[04.2012 - 08.2014] QEA38 7.5A,MINI FUSE |
90982-09020 |
from US $0.86 |
||
|
82600K
|
82600K
90982-09021 Fusible Link[04.2012 - 08.2014] QEA38 10A,MINI FUSE |
90982-09021 |
from US $0.88 |
||
|
82600K
|
82600K
90982-09022 Instrument Panel Fuse[04.2012 - 08.2014] QEA38 15A,MINI FUSE |
90982-09022 |
from US $0.84 |
||
|
82600K
|
82600K
90982-09023 Instrument Panel Fuse[04.2012 - 08.2014] QEA38 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600K
|
82600K
90982-09025 Instrument Panel Fuse[04.2012 - 08.2014] QEA38 30A,MINI FUSE |
90982-09025 |
from US $0.78 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[04.2012 - 08.2014] QEA38 |
82616-58010 |
from US $2.28 |
||
|
82620B
|
82620B
82620-06021
Block Assy, Fusible Link
[04.2012 - 08.2014] QEA38 |
82620-06021 |
— | ||
|
82622
|
82622
82622-0R010
Cover, Fusible Link, Upper
[04.2012 - 08.2014] QEA38 |
82622-0R010 |
— | ||
|
82623
|
82623
82623-06011
Cover, Fusible Link, Lower
[04.2012 - 08.2014] QEA38 |
82623-06011 |
— | ||
|
82630
|
82630
82631-0R010
Holder Assy, Fuse
[04.2012 - 08.2014] QEA38 |
82631-0R010 |
— | ||
|
82630C
|
82630C
82631-0R020
Holder Assy, Fuse
[04.2012 - 08.2014] QEA38 |
82631-0R020 |
— | ||
|
82631
|
82631
82631-42020 Holder Assy, Fuse[04.2012 - 08.2014] QEA38 |
82631-42020 |
from US $18.20 |
||
|
82642C
|
82642C
90080-87010 Relay, Ignition, No.1[04.2012 -] QEA38 |
90080-87010 |
US $14.27 |
||
|
82660B
|
82660B
82660-0H070 Block Assy, Relay[04.2012 - 08.2014] QEA38 |
82660-0H070 |
US $6.74 |
||
|
82660C
|
82660C
82660-52020 Block Assy, Relay[04.2012 - 08.2014] QEA38 |
82660-52020 |
US $7.13 |
||
|
82660D
|
82660D
82660-26270 Block Assy, Relay, Engine Room[04.2012 - 08.2014] QEA38 |
82660-26270 |
US $9.50 |
||
|
82661
|
82661
82661-42030 Cover, Relay Block, No.1[04.2012 - 08.2014] QEA38 |
82661-42030 |
US $6.26 |
||
|
82662A
|
82662A
82662-0R070
Cover, Relay Block, Upper, No.1
[04.2012 -] QEA38 |
82662-0R070 |
— | ||
|
82662B
|
82662B
82662-0R090
Cover, Relay Block, Upper, No.2
[04.2012 -] QEA38 |
82662-0R090 |
— | ||
|
82663
|
82663
82663-0R020
Cover, Relay Block, Lower
[04.2012 - 08.2014] QEA38 |
82663-0R020 |
— | ||
|
82663A
|
82663A
82663-42090 Cover, Relay Block Lower, No.4[04.2012 - 08.2014] QEA38 |
82663-42090 |
from US $33.20 |
||
|
82741D
|
82741D
82741-42010 Block, Engine Room Relay[04.2012 - 08.2014] QEA38 |
82741-42010 |
from US $40.95 |
||
|
82742B
|
82742B
82742-42030 Block, Engine Room Relay, No.2[04.2012 - 08.2014] QEA38 |
82742-42030 |
from US $48.42 |
||
|
82824Z
|
82824Z
82824-20140 Connector, Wiring Harness[04.2012 - 08.2014] QEA38 |
82824-20140 |
US $2.48 |
||
|
85912D
|
85912D
90080-87026
Relay, Water Pump
[04.2012 -] QEA38 (L) |
90080-87026 |
— | ||
| replacement | |||||
|
85912D
|
85912D
90987-02027 Relay[04.2012 -] QEA38 (L) |
90987-02027 |
from US $47.11 |
||
|
85912D
|
85912D
90987-02027 Relay[04.2012 -] QEA38 (J) |
90987-02027 |
from US $47.11 |
||
|
85915E
|
85915E
90080-87024
Relay, Water Pump
[04.2012 -] QEA38 (L) |
90080-87024 |
— | ||
|
85915E
|
85915E
90987-02025 Relay[04.2012 -] QEA38 (J) |
90987-02025 |
from US $49.22 |
||
|
85916P
|
85916P
90080-87025 Relay Assy (For Heater Blower Motor)DEFOGGER [04.2012 -] QEA38 (L) |
90080-87025 |
US $39.46 |
||
|
85916P
|
85916P
90987-04010 Relay Assy (For Heater Blower Motor)[04.2012 -] QEA38 (J) |
90987-04010 |
from US $47.21 |
||
|
85927
|
85927
90080-87024
Relay, Water Pump
[04.2012 -] QEA38 (L) |
90080-87024 |
— | ||
|
85927
|
85927
90987-02025 Relay[04.2012 -] QEA38 (J) |
90987-02025 |
from US $49.22 |
||
|
87346K
|
87346K
90080-87024
Relay, Water Pump
[04.2012 -] QEA38 (L) |
90080-87024 |
— | ||
|
87346K
|
87346K
90987-02025 Relay[04.2012 -] QEA38 (J) |
90987-02025 |
from US $49.22 |
||
|
88790F
|
88790F
88790-06010
Thermistor, Cooler (Ambient Temp. Sensor)
[09.2013 -] QEA38 |
88790-06010 |
— | ||
|
88790F
|
88790F
88790-22131 Thermistor, Cooler[04.2012 - 08.2013] QEA38 |
88790-22131 |
from US $24.39 |
||
|
89257
|
89257
89257-26020 Computer, Cooling Fan[04.2012 - 08.2014] QEA38 |
89257-26020 |
from US $217.60 |
||
|
89530H
|
89530H
90080-87026
Relay, Water Pump
[04.2012 -] QEA38 (L) |
90080-87026 |
— | ||
| replacement | |||||
|
89530H
|
89530H
90987-02027 Relay[04.2012 -] QEA38 (L) |
90987-02027 |
from US $47.11 |
||
|
89530H
|
89530H
90987-02027 Relay[04.2012 -] QEA38 (J) |
90987-02027 |
from US $47.11 |
||
|
827150R520
|
827150R520
82715-0R520
Bracket,wiring Harness Clamp
|
82715-0R520 |
— | ||
|
9008011353
|
9008011353
90080-11353 New Genuine Part |
90080-11353 |
US $1.46 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.25 |
||
|
9338516010
|
9338516010
93385-16010 New Genuine Part |
93385-16010 |
US $1.97 |
||
