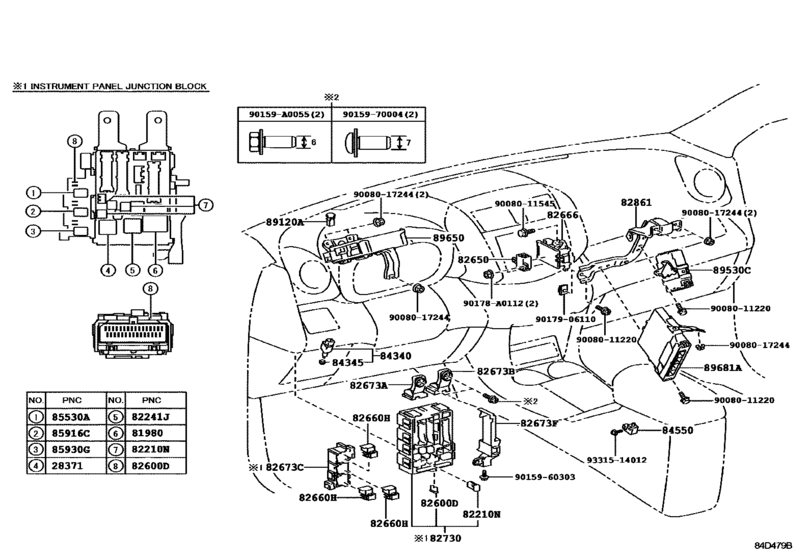

Switch & Relay & Computer ([04.2012 - ] COWL (1204- )) Diagram Toyota RAV4/VANGUARD
- Year
- 2012 - 2014
- Sales region
- U.S.A.
- Frame
- QEA38
- body
- WG
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 04.2012
- To
- 08.2014
- Seating Capacity
- 05S
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-A2002
Relay, Ignition, No.1
[04.2012 -] EM..QEA38 |
90987-A2002 |
— | ||
|
81980
|
81980
81980-02050
Flasher Assy, Turn Signal
[04.2012 -] QEA38 |
81980-02050 |
— | ||
|
82210N
|
82210N
90982-08295 Fusible Link[04.2012 -] QEA38 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.99 |
||
|
82241J
|
82241J
82241-42010 Pin, Short[04.2012 -] QEA38 |
82241-42010 |
US $4.80 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[04.2012 -] QEA38 5A,MINI FUSE |
90982-09019 |
from US $0.82 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[04.2012 -] QEA38 7.5A,MINI FUSE |
90982-09020 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[04.2012 -] QEA38 10A,MINI FUSE |
90982-09021 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[04.2012 -] QEA38 15A,MINI FUSE |
90982-09022 |
from US $0.84 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[04.2012 -] QEA38 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[04.2012 -] QEA38 25A,MINI FUSE |
90982-09024 |
from US $0.84 |
||
|
82650
|
82650
82650-0R010
Breaker Assy, Wiring Circuit, No.1
[04.2012 -] QEA38 |
82650-0R010 |
— | ||
|
82660H
|
82660H
82660-52020 Block Assy, Relay[04.2012 - 08.2014] QEA38 |
82660-52020 |
US $7.13 |
||
|
82666
|
82666
82666-0R070
Holder, Connector
[04.2012 -] QEA38 |
82666-0R070 |
— | ||
|
82673A
|
82673A
82673-42090
Bracket, Junction Block
[04.2012 -] QEA38 |
82673-42090 |
— | ||
|
82673B
|
82673B
82673-42100
Bracket, Junction Block
[04.2012 -] QEA38 |
82673-42100 |
— | ||
|
82673C
|
82673C
82673-42110 Bracket, Junction Block[04.2012 -] QEA38 |
82673-42110 |
US $15.72 |
||
|
82673F
|
82673F
82673-42120
Bracket, Junction Block
[04.2012 -] QEA38 |
82673-42120 |
— | ||
|
82730
|
82730
82730-0R130
Block Assy, Instrument Panel Junction
[04.2012 -] QEA38 |
82730-0R130 |
— | ||
|
82861
|
82861
82861-42040
Bracket, Computer Integration, No.1
[04.2012 -] QEA38 |
82861-42040 |
— | ||
|
84340
|
84340
84340-49065
Switch Assy, Stop Lamp
[04.2012 - 08.2014] QEA38 |
84340-49065 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-59005 Switch Assy, Stop Lamp[04.2012 - 08.2014] QEA38 |
84340-59005 |
from US $39.92 |
||
|
84345
|
84345
84345-08010
Adjuster, Stop Lamp Switch Mounting
[04.2012 - 08.2014] QEA38 |
84345-08010 |
— | ||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[04.2012 - 08.2014] QEA38 |
84550-16060 |
from US $19.32 |
||
|
85530A
|
85530A
90080-87026
Relay, Water Pump
[04.2012 -] QEA38 |
90080-87026 |
— | ||
| replacement | |||||
|
85530A
|
85530A
90987-02027 Relay[04.2012 -] QEA38 |
90987-02027 |
from US $47.11 |
||
|
85916C
|
85916C
90080-87026
Relay, Water Pump
[04.2012 -] QEA38 |
90080-87026 |
— | ||
| replacement | |||||
|
85916C
|
85916C
90987-02027 Relay[04.2012 -] QEA38 |
90987-02027 |
from US $47.11 |
||
|
85930G
|
85930G
90080-87026
Relay, Water Pump
[04.2012 -] QEA38 |
90080-87026 |
— | ||
| replacement | |||||
|
85930G
|
85930G
90987-02027 Relay[04.2012 -] QEA38 |
90987-02027 |
from US $47.11 |
||
|
89120A
|
89120A
89121-12010 Sensor, Automatic Light Control[04.2012 -] QEA38 |
89121-12010 |
from US $133.34 |
||
|
89530C
|
89530C
89530-42030
Computer Assy, Transmission Control
[04.2012 -] QEA38 |
89530-42030 |
— | ||
|
89650
|
89650
89650-42140
Computer Assy, Power Steering
[04.2012 -] QEA38 |
89650-42140 |
— | ||
|
89681A
|
89681A
89690-42011
Computer, Power Management Control
[04.2012 - 06.2012] QEA38 |
89690-42011 |
— | ||
| replacement | |||||
|
89681A
|
89681A
89690-42015
Computer, Power Management Control
[04.2012 - 06.2012] QEA38 |
89690-42015 |
— | ||
|
89681A
|
89681A
89690-42012
Computer, Power Management Control
[07.2012 - 08.2012] QEA38 |
89690-42012 |
— | ||
| replacement | |||||
|
89681A
|
89681A
89690-42015
Computer, Power Management Control
[07.2012 - 08.2012] QEA38 |
89690-42015 |
— | ||
|
89681A
|
89681A
89690-42013
Computer, Power Management Control
[09.2012 - 11.2012] QEA38 |
89690-42013 |
— | ||
| replacement | |||||
|
89681A
|
89681A
89690-42015
Computer, Power Management Control
[09.2012 - 11.2012] QEA38 |
89690-42015 |
— | ||
|
89681A
|
89681A
89690-42014
Computer, Power Management Control
[12.2012 - 07.2013] QEA38 |
89690-42014 |
— | ||
| replacement | |||||
|
89681A
|
89681A
89690-42015
Computer, Power Management Control
[12.2012 - 07.2013] QEA38 |
89690-42015 |
— | ||
|
89681A
|
89681A
89690-42015
Computer, Power Management Control
[08.2013 -] QEA38 |
89690-42015 |
— | ||
|
90159A0055
|
90159A0055
90159-A0055
New Genuine Part
|
90159-A0055 |
— | ||
|
90178A0112
|
90178A0112
90178-A0112
New Genuine Part
|
90178-A0112 |
— | ||
|
9008011220
|
9008011220
90080-11220 BOLT WWASHER |
90080-11220 |
US $0.83 |
||
|
9008011545
|
9008011545
90080-11545 New Genuine Part |
90080-11545 |
US $1.60 |
||
|
9008017244
|
9008017244
90080-17244 NUT FLANGE |
90080-17244 |
US $1.50 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.61 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
