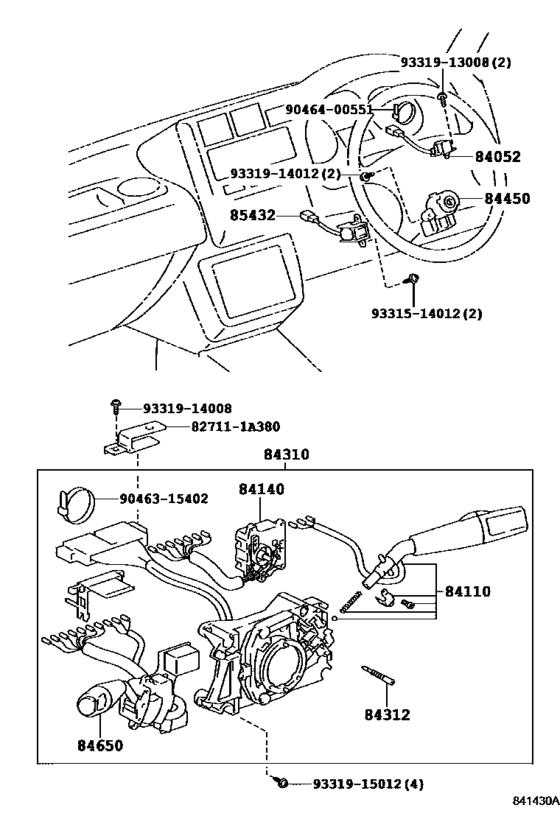

Switch & Relay & Computer ([04.1994 - 08.1996] ｲｸﾞﾆﾂｼﾖﾝ ｽｲﾂﾁ,ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ (9404-9608)) Diagram Toyota RAV4/VANGUARD
- Year
- 1995 - 2000
- Sales region
- Japan
- Frame
- SXA11
- grade
- STD
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- RAV4
- From
- 04.1995
- To
- 05.2000
- No.of Doors
- 5D
- Vehicle Model
- RAV4
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-12060 Switch Assy, Un-Lock Warning[04.1994 - 09.1997] SXA1# |
84052-12060 |
US $17.92 |
||
|
84052
|
84052
84052-20050 Switch Assy, Un-Lock Warning[09.1997 -] SXA1# |
84052-20050 |
US $37.56 |
||
| replacement | |||||
|
84052
|
84052
84052-41010 Switch Assy, Un-Lock Warning[09.1997 -] SXA1# |
84052-41010 |
US $28.83 |
||
|
84110
|
84110
84112-49055
Switch Assy, Light Control, No.1
[04.1994 - 08.1996] SXA1# |
84112-49055 |
— | ||
| replacement | |||||
|
84110
|
84110
84112-80128
Switch Assy, Light Control, No.1
[04.1994 - 08.1996] SXA1# |
84112-80128 |
— | ||
|
84140
|
84140
84140-12300
Switch Assy, Headlamp Dimmer
[04.1994 - 08.1996] SXA1# |
84140-12300 |
— | ||
|
84140
|
84140
84140-26170 Switch Assy, Headlamp Dimmer[08.1996 -] SXA1# |
84140-26170 |
from US $55.67 |
||
|
84310
|
84310
84310-42030
Switch Assy, Turn Signal
[04.1995 - 08.1996] SXA1# ｱﾘ(ﾐｽﾄﾂｷ ｶﾝｹﾂ ﾜｲﾊﾟ) |
84310-42030 |
— | ||
| replacement | |||||
|
84310
|
84310
84310-42040
Switch Assy, Turn Signal
[04.1995 - 08.1996] SXA1# ｱﾘ(ﾐｽﾄﾂｷ ｶﾝｹﾂ ﾜｲﾊﾟ) |
84310-42040 |
— | ||
|
84310
|
84310
84310-42040
Switch Assy, Turn Signal
[04.1994 - 08.1996] SXA1# |
84310-42040 |
— | ||
|
84310
|
84310
84310-42070
Switch Assy, Turn Signal
[08.1996 - 09.1997] SXA1# |
84310-42070 |
— | ||
| replacement | |||||
|
84310
|
84310
84310-2F120
Switch Assy, Turn Signal
[08.1996 - 09.1997] SXA1# |
84310-2F120 |
— | ||
|
84310
|
84310
84310-42090 Switch Assy, Turn Signal[08.1996 - 09.1997] SXA1#..STD ｱﾘ(ﾐｽﾄﾂｷ ｶﾝｹﾂ ﾜｲﾊﾟ) |
84310-42090 |
US $377.10 |
||
| replacement | |||||
|
84310
|
84310
84310-35600 Switch Assy, Turn Signal[08.1996 - 09.1997] SXA1#..STD ｱﾘ(ﾐｽﾄﾂｷ ｶﾝｹﾂ ﾜｲﾊﾟ) |
84310-35600 |
US $407.68 |
||
|
84310
|
84310
84310-42110
Switch Assy, Turn Signal
[09.1997 -] SXA1#..G,STD,X |
84310-42110 |
— | ||
| replacements | |||||
|
84310
|
84310
84652-35492 Switch Assy, Windshield Wiper[09.1997 -] SXA1#..G,STD,X |
84652-35492 |
US $115.44 |
||
|
84310
|
84310
84140-26170 Switch Assy, Headlamp Dimmer[09.1997 -] SXA1#..G,STD,X |
84140-26170 |
from US $55.67 |
||
|
84310
|
84310
84306-12070 Cable Sub-Assy, Spiral[09.1997 -] SXA1#..G,STD,X |
84306-12070 |
from US $174.25 |
||
|
84310
|
84310
84319-60010 Housing, Steering Wheel Switch[09.1997 -] SXA1#..G,STD,X |
84319-60010 |
US $38.15 |
||
|
84310
|
84310
84310-42150
Switch Assy, Turn Signal
[09.1997 - 08.1998] SXA1#..STD ｱﾘ(ﾐｽﾄﾂｷ ｶﾝｹﾂ ﾜｲﾊﾟ) |
84310-42150 |
— | ||
| replacements | |||||
|
84310
|
84310
84652-35492 Switch Assy, Windshield Wiper[09.1997 - 08.1998] SXA1#..STD ｱﾘ(ﾐｽﾄﾂｷ ｶﾝｹﾂ ﾜｲﾊﾟ) |
84652-35492 |
US $115.44 |
||
|
84310
|
84310
84140-26170 Switch Assy, Headlamp Dimmer[09.1997 - 08.1998] SXA1#..STD ｱﾘ(ﾐｽﾄﾂｷ ｶﾝｹﾂ ﾜｲﾊﾟ) |
84140-26170 |
from US $55.67 |
||
|
84310
|
84310
84306-12070 Cable Sub-Assy, Spiral[09.1997 - 08.1998] SXA1#..STD ｱﾘ(ﾐｽﾄﾂｷ ｶﾝｹﾂ ﾜｲﾊﾟ) |
84306-12070 |
from US $174.25 |
||
|
84310
|
84310
84319-60010 Housing, Steering Wheel Switch[09.1997 - 08.1998] SXA1#..STD ｱﾘ(ﾐｽﾄﾂｷ ｶﾝｹﾂ ﾜｲﾊﾟ) |
84319-60010 |
US $38.15 |
||
|
84312
|
84312
84312-12040 Plate, Horn Contact[04.1994 - 08.1996] SXA1# |
84312-12040 |
from US $6.51 |
||
|
84450
|
84450
84450-41010 Switch Assy, Ignition Or Starter[04.1994 -] SXA1# |
84450-41010 |
US $76.96 |
||
|
84650
|
84650
84652-26500 Switch Assy, Windshield Wiper[09.1997 -] SXA1#..G,STD,X |
84652-26500 |
US $126.67 |
||
|
84650
|
84650
84652-42030 Switch Assy, Windshield Wiper[04.1995 - 08.1996] SXA1# ｱﾘ(ﾐｽﾄﾂｷ ｶﾝｹﾂ ﾜｲﾊﾟ) |
84652-42030 |
US $107.74 |
||
|
84650
|
84650
84652-42040 Switch Assy, Windshield Wiper[04.1994 - 08.1996] SXA1# |
84652-42040 |
US $122.30 |
||
|
84650
|
84650
84652-42060 Switch Assy, Windshield Wiper[08.1996 - 09.1997] SXA1# |
84652-42060 |
US $291.20 |
||
| replacement | |||||
|
84650
|
84650
84652-35492 Switch Assy, Windshield Wiper[08.1996 - 09.1997] SXA1# |
84652-35492 |
US $115.44 |
||
|
84650
|
84650
84652-42070 Switch Assy, Windshield Wiper[08.1996 - 08.1998] SXA1#..STD ｱﾘ(ﾐｽﾄﾂｷ ｶﾝｹﾂ ﾜｲﾊﾟ) |
84652-42070 |
US $285.38 |
||
|
85432
|
85432
85432-20050 Solenoid, Key Inter Lock[04.1994 - 11.1995] SXA1#..ATM |
85432-20050 |
US $64.06 |
||
| replacement | |||||
|
85432
|
85432
85432-12010 Solenoid, Key Inter Lock[04.1994 - 11.1995] SXA1#..ATM |
85432-12010 |
US $40.33 |
||
|
85432
|
85432
85432-42011 Solenoid, Key Inter Lock[11.1995 - 02.1996] SXA1#..ATM |
85432-42011 |
US $63.77 |
||
| replacement | |||||
|
85432
|
85432
85432-42012 Solenoid, Key Inter Lock[11.1995 - 02.1996] SXA1#..ATM |
85432-42012 |
US $64.06 |
||
|
85432
|
85432
85432-42012 Solenoid, Key Inter Lock[02.1996 -] SXA1#..ATM |
85432-42012 |
US $64.06 |
||
|
827111A380
|
827111A380
82711-1A380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A380 |
US $12.67 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
