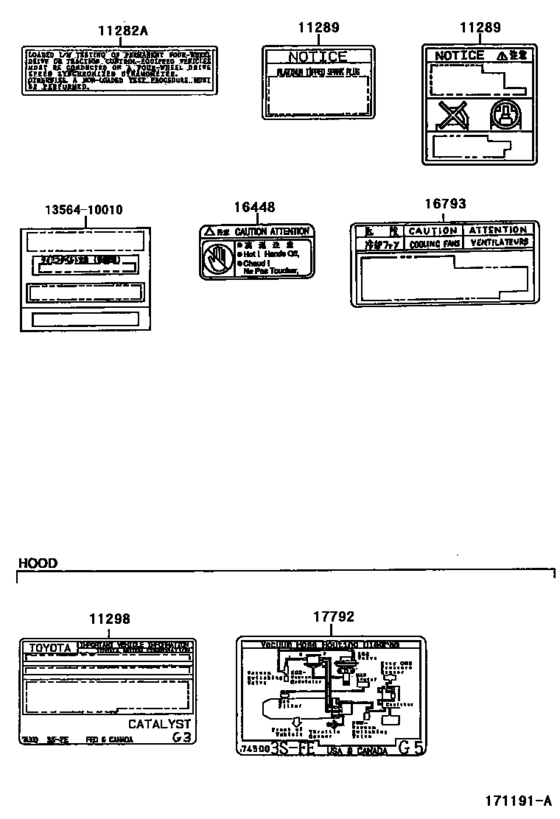

Caution Plate & Name Plate (Engine) ([11.1995 - ] (9511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- SXA11
- body
- HT
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- RAV4
- From
- 11.1995
- To
- 08.2000
- No.of Doors
- 4D
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11282A
|
11282A
11282-74010 Label, Loaded Testing CautionLOADED TESTING CAUTION [11.1995 -] 3SFE..SXA10,11 |
11282-74010 |
from US $1.87 |
||
|
11289
|
11289
11289-20010 Plate, Spark Plug Caution[09.1997 -] 3SFE..SXA1# |
11289-20010 |
US $3.79 |
||
|
11289
|
11289
11289-73020
Plate, Spark Plug Caution
[11.1995 - 04.1996] 3SFE..SXA1# |
11289-73020 |
— | ||
|
11298
|
11298
11298-7A300 Plate, Emission Control InformationEMISSION CONTROL INFORMATION [11.1995 - 08.1996] 3SFE..SXA1# |
11298-7A300 |
US $5.82 |
||
|
11298
|
11298
11298-7A310 Plate, Emission Control InformationEMISSION CONTROL INFORMATION [11.1995 - 08.1996] 3SFE..SXA1# CALIFORNIA SPEC |
11298-7A310 |
US $5.82 |
||
|
11298
|
11298
11298-7A400 Plate, Emission Control InformationEMISSION CONTROL INFORMATION [08.1996 - 09.1997] 3SFE..SXA1# |
11298-7A400 |
US $4.51 |
||
|
11298
|
11298
11298-7A410 Plate, Emission Control InformationEMISSION CONTROL INFORMATION [08.1996 - 09.1997] 3SFE..SXA1# CALIFORNIA SPEC |
11298-7A410 |
US $4.51 |
||
|
11298
|
11298
11298-7A500 Plate, Emission Control InformationEMISSION CONTROL INFORMATION [09.1997 - 08.1998] 3SFE..SXA1# |
11298-7A500 |
US $4.66 |
||
|
11298
|
11298
11298-7A510 Plate, Emission Control InformationEMISSION CONTROL INFORMATION [09.1997 - 08.1998] 3SFE..SXA1# CALIFORNIA SPEC |
11298-7A510 |
US $4.66 |
||
|
11298
|
11298
11298-7A530 Plate, Emission Control InformationEMISSION CONTROL INFORMATION [08.1998 - 08.1999] 3SFE..SXA1# |
11298-7A530 |
US $6.12 |
||
|
11298
|
11298
11298-7A541 Plate, Emission Control InformationEMISSION CONTROL INFORMATION [08.1998 - 08.1999] 3SFE..SXA1# CALIFORNIA SPEC |
11298-7A541 |
US $6.12 |
||
|
11298
|
11298
11298-7A610 Plate, Emission Control InformationEMISSION CONTROL INFORMATION [08.1999 -] 3SFE..SXA1# |
11298-7A610 |
US $1.75 |
||
|
11298
|
11298
11298-7A620 Plate, Emission Control InformationEMISSION CONTROL INFORMATION [08.1999 -] 3SFE..SXA1# CALIFORNIA SPEC |
11298-7A620 |
US $1.75 |
||
|
16448
|
16448
16448-7A111
Plate, Radiator Caution
[07.1996 - 09.1997] 3SFE..SXA1# |
16448-7A111 |
— | ||
|
16793
|
16793
16793-46010 Label, Caution[01.1997 -] 3SFE..SXA1# |
16793-46010 |
from US $2.57 |
||
|
16793
|
16793
16793-74010
Plate, Fan Caution
[11.1995 - 01.1997] 3SFE..SXA1# |
16793-74010 |
— | ||
|
17792
|
17792
17792-74500 Plate, Engine Vacuum Hose InformationENGINE VACUUM HOSE INFORMATION [11.1995 - 08.1996] 3SFE..SXA1# |
17792-74500 |
US $5.24 |
||
|
17792
|
17792
17792-74530 Plate, Engine Vacuum Hose InformationENGINE VACUUM HOSE INFORMATION [08.1996 - 09.1997] 3SFE..SXA1# |
17792-74530 |
US $4.22 |
||
|
17792
|
17792
17792-74580 Plate, Engine Vacuum Hose InformationENGINE VACUUM HOSE INFORMATION [08.1998 -] 3SFE..SXA1# |
17792-74580 |
US $6.12 |
||
|
17792
|
17792
17792-74611 Plate, Engine Vacuum Hose InformationENGINE VACUUM HOSE INFORMATION [09.1997 - 07.1998] 3SFE..SXA1# |
17792-74611 |
US $4.66 |
||
|
17792
|
17792
17792-74612 Plate, Engine Vacuum Hose InformationENGINE VACUUM HOSE INFORMATION [07.1998 - 08.1998] 3SFE..SXA1# |
17792-74612 |
US $5.97 |
||
|
1356410010
|
1356410010
13564-10010 Plate, Timing Belt Caution |
13564-10010 |
from US $2.18 |
