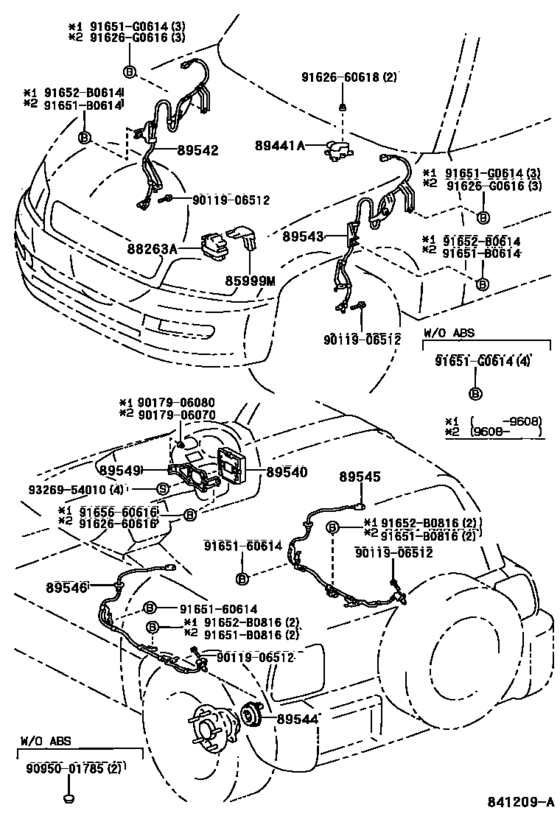

Abs & Vsc ([11.1995 - ] (9511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1995 - 2000
- Sales region
- Europe
- Frame
- SXA11
- body
- HT
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- RAV4
- From
- 11.1995
- To
- 08.2000
- No.of Doors
- 4D
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85999M
|
85999M
85999-42020
Bracket, Relay
[11.1995 -] SXA1# |
85999-42020 |
— | ||
|
88263A
|
88263A
88263-12080 Relay, Skid Control[11.1995 -] SXA1# |
88263-12080 |
US $87.36 |
||
|
89441A
|
89441A
89441-20050 Sensor, Deceleration[11.1995 - 08.1996] SXA10,11 |
89441-20050 |
US $876.51 |
||
| replacement | |||||
|
89441A
|
89441A
89441-42010 Sensor, Deceleration[11.1995 - 08.1996] SXA10,11 |
89441-42010 |
US $920.77 |
||
|
89441A
|
89441A
89441-30040 Sensor, Deceleration[08.1996 -] SXA11 |
89441-30040 |
US $308.67 |
||
|
89540
|
89540
89540-42060 Computer Assy, Skid ControlSKID CONTROL [09.1997 -] SXA11 |
89540-42060 |
US $808.08 |
||
|
89540
|
89540
89541-42010 Computer Assy, Skid Control[11.1995 - 08.1996] SXA10,11 |
89541-42010 |
US $1,274 |
||
|
89540
|
89540
89541-42040 Computer Assy, Skid Control[08.1996 - 09.1997] SXA11 |
89541-42040 |
US $806.62 |
||
|
89542
|
89542
89542-42011
Sensor, Speed, Front Rh
[11.1995 - 08.1996] SXA1# |
89542-42011 |
— | ||
|
89542
|
89542
89542-42020 Sensor, Speed, Front Rh[08.1996 -] SXA1# |
89542-42020 |
US $292.66 |
||
| replacement | |||||
|
89542
|
89542
89542-42030 Sensor, Speed, Front Rh[08.1996 -] SXA1# |
89542-42030 |
US $292.66 |
||
|
89543
|
89543
89543-42011 Sensor, Speed, Front Lh[11.1995 - 08.1996] SXA1# |
89543-42011 |
US $292.66 |
||
|
89543
|
89543
89543-42020 Sensor, Speed, Front Lh[08.1996 -] SXA1# |
89543-42020 |
US $292.66 |
||
| replacement | |||||
|
89543
|
89543
89543-42030 Sensor, Speed, Front Lh[08.1996 -] SXA1# |
89543-42030 |
US $307.51 |
||
|
89545
|
89545
89545-42010 Sensor, Speed, Rear Rh[11.1995 - 08.1996] SXA1# |
89545-42010 |
US $292.66 |
||
|
89545
|
89545
89545-42020 Sensor, Speed, Rear Rh[08.1996 - 09.1997] SXA1# |
89545-42020 |
US $292.66 |
||
|
89546
|
89546
89546-42010 Sensor, Speed, Rear Lh[11.1995 - 08.1996] SXA1# |
89546-42010 |
US $292.66 |
||
|
89546
|
89546
89546-42020 Sensor, Speed, Rear Lh[08.1996 - 09.1997] SXA1# |
89546-42020 |
US $292.66 |
||
|
89549
|
89549
89549-42010 Bracket, Skid Control Computer[11.1995 - 01.1996] SXA1# |
89549-42010 |
US $14.71 |
||
| replacement | |||||
|
89549
|
89549
89549-42020 Bracket, Skid Control Computer[11.1995 - 01.1996] SXA1# |
89549-42020 |
US $14.71 |
||
|
89549
|
89549
89549-42020 Bracket, Skid Control Computer[01.1996 - 09.1997] SXA1# |
89549-42020 |
US $14.71 |
||
|
91626G0616
|
91626G0616
91626-G0616 BOLT WWASHER |
91626-G0616 |
US $1.76 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.56 |
||
|
91651G0614
|
91651G0614
91651-G0614
BOLT,W/WASHER
|
91651-G0614 |
— | ||
| replacement | |||||
|
91651G0614
|
91651G0614
90119-06482 New Genuine Part |
90119-06482 |
US $1.60 |
||
|
91652B0614
|
91652B0614
91652-B0614 New Genuine Part |
91652-B0614 |
US $1.46 |
||
| replacement | |||||
|
91652B0614
|
91652B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
91652B0816
|
91652B0816
91652-B0816 New Genuine Part |
91652-B0816 |
US $1.28 |
||
|
9011906512
|
9011906512
90119-06512 BOLT WWASHER |
90119-06512 |
US $2.56 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.51 |
||
|
9095001785
|
9095001785
90950-01785 New Genuine Part |
90950-01785 |
US $1.49 |
||
|
9162660616
|
9162660616
91626-60616
New Genuine Part
|
91626-60616 |
— | ||
| replacement | |||||
|
9162660616
|
9162660616
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9162660618
|
9162660618
91626-60618
New Genuine Part
|
91626-60618 |
— | ||
| replacement | |||||
|
9162660618
|
9162660618
91621-J0614 BOLT W-WASHER |
91621-J0614 |
US $1.76 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9165660616
|
9165660616
91656-60616
BOLT
|
91656-60616 |
— | ||
| replacement | |||||
|
9165660616
|
9165660616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9326954010
|
9326954010
93269-54010 SCREW |
93269-54010 |
US $0.96 |
||
