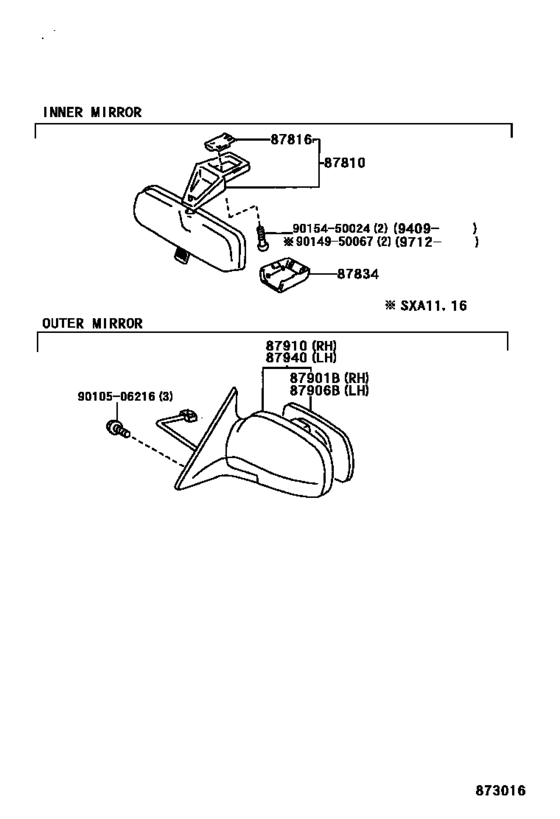

Mirror ([11.1995 - ] (9511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1995 - 2000
- Sales region
- Europe
- Frame
- SXA11
- body
- HT
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- RAV4
- From
- 11.1995
- To
- 08.2000
- No.of Doors
- 4D
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-01040-B3 Mirror Assy, Inner Rear View[09.1997 - 08.2000] SXA1# LT.GRAY,TRIM1# |
87810-01040-B3 |
US $101.92 |
||
| replacement | |||||
|
87810
|
87810
87810-01040-C0
Mirror Assy, Inner Rear View
[09.1997 - 08.2000] SXA1# LT.GRAY,TRIM1# |
87810-01040-C0 |
— | ||
|
87810
|
87810
87810-12240-B2 Mirror Assy, Inner Rear View[11.1995 - 09.1997] SXA1# LT.BLUISH GRAY,TRIM1#,ICHIKO |
87810-12240-B2 |
US $115.44 |
||
| replacement | |||||
|
87810
|
87810
87810-12240-B3 Mirror Assy, Inner Rear View (LT.GRAY)[11.1995 - 09.1997] SXA1# LT.BLUISH GRAY,TRIM1#,ICHIKO |
87810-12240-B3 |
US $115.44 |
||
|
87810
|
87810
87810-12240-B3 Mirror Assy, Inner Rear View (LT.GRAY)[09.1997 - 08.2000] SXA1# LT.GRAY,TRIM1#,ICHIKO |
87810-12240-B3 |
US $115.44 |
||
|
87816
|
87816
74372-01020
Spring, Inner Rear View Mirror
[11.1995 - 08.2000] SXA1# DONNELLY |
74372-01020 |
— | ||
|
87816
|
87816
74372-30030 Spring, Inner Rear View Mirror[11.1995 - 08.2000] SXA1# ICHIKO |
74372-30030 |
US $2.97 |
||
|
87834
|
87834
87834-12030-B0 Cover, Inner Rear View Mirror Stay Holder[11.1995 - 09.1997] SXA1# LT.BLUISH GRAY,TRIM1# |
87834-12030-B0 |
US $3.49 |
||
| replacement | |||||
|
87834
|
87834
87834-12030-B4 Cover, Inner Rear View Mirror Stay Holder[11.1995 - 09.1997] SXA1# LT.BLUISH GRAY,TRIM1# |
87834-12030-B4 |
from US $1.54 |
||
|
87834
|
87834
87834-12030-B4 Cover, Inner Rear View Mirror Stay Holder[09.1997 - 08.2000] SXA1# LT.GRAY,TRIM1# |
87834-12030-B4 |
from US $1.54 |
||
|
87901B
|
87901B
87931-42150 Mirror Sub-Assy, Outer Rear View, RhOUTER REAR VIEW, RH [09.1997 -] SXA1# |
87931-42150 |
US $29.41 |
||
|
87906B
|
87906B
87961-42180 Mirror Sub-Assy, Outer Rear View, LhOUTER REAR VIEW, LH [09.1997 -] SXA1# |
87961-42180 |
from US $29.41 |
||
|
87910
|
87910
87910-42160
Mirror Assy, Outer Rear View, Rh
[11.1995 -] SXA11,16 |
87910-42160 |
— | ||
|
87910
|
87910
87910-42180
Mirror Assy, Outer Rear View, Rh
[11.1995 - 09.1997] SXA11,16 ELECTRIC REMOTE CONTROL MIRROR |
87910-42180 |
— | ||
|
87910
|
87910
87910-42181
Mirror Assy, Outer Rear View, Rh
[09.1997 -] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR) |
87910-42181 |
— | ||
|
87910
|
87910
87910-42500-A0
Mirror Assy, Outer Rear View, Rh
[09.1997 -] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),WHITE,K60 ,056 |
87910-42500-A0 |
— | ||
|
87910
|
87910
87910-42500-A1
Mirror Assy, Outer Rear View, Rh
[08.1998 - 07.1999] SXA11,16 L PACKAGE,WHITE PM,K18 |
87910-42500-A1 |
— | ||
|
87910
|
87910
87910-42500-B0
Mirror Assy, Outer Rear View, Rh
[09.1997 - 08.1998] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),SILVER ME,K61 ,199 |
87910-42500-B0 |
— | ||
|
87910
|
87910
87910-42500-B1
Mirror Assy, Outer Rear View, Rh
[08.1998 - 08.2000] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),SILVER GR.SF,1B9 ,K98 |
87910-42500-B1 |
— | ||
|
87910
|
87910
87910-42500-C0
Mirror Assy, Outer Rear View, Rh
[09.1997 -] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),BLACK,K62 ,202 |
87910-42500-C0 |
— | ||
|
87910
|
87910
87910-42500-D0
Mirror Assy, Outer Rear View, Rh
[09.1997 - 08.1998] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),WINE RED MC,3J8 ,K64 |
87910-42500-D0 |
— | ||
|
87910
|
87910
87910-42500-D1
Mirror Assy, Outer Rear View, Rh
[08.1998 - 08.2000] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),WINE RED MC,3M8 ,KA0 |
87910-42500-D1 |
— | ||
|
87910
|
87910
87910-42500-E0
Mirror Assy, Outer Rear View, Rh
[09.1997 -] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),LT.BROWN ME,K66 ,4J6 |
87910-42500-E0 |
— | ||
|
87910
|
87910
87910-42500-G0
Mirror Assy, Outer Rear View, Rh
[09.1997 -] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),DK.GREEN M.M.,K68 ,6P3 |
87910-42500-G0 |
— | ||
|
87910
|
87910
87910-42500-J0
Mirror Assy, Outer Rear View, Rh
[09.1997 - 08.1998] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),DK.BLUE MM.GR.,K70 ,8K5 |
87910-42500-J0 |
— | ||
|
87910
|
87910
87910-42500-J1
Mirror Assy, Outer Rear View, Rh
[08.1998 - 08.2000] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),BLUE M.M.,K71 ,8L5 |
87910-42500-J1 |
— | ||
|
87940
|
87940
87940-42190
Mirror Assy, Outer Rear View, Lh
[11.1995 -] SXA11,16 |
87940-42190 |
— | ||
|
87940
|
87940
87940-42210
Mirror Assy, Outer Rear View, Lh
[11.1995 - 09.1997] SXA11,16 ELECTRIC REMOTE CONTROL MIRROR |
87940-42210 |
— | ||
|
87940
|
87940
87940-42211
Mirror Assy, Outer Rear View, Lh
[09.1997 -] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR) |
87940-42211 |
— | ||
|
87940
|
87940
87940-42470-A0
Mirror Assy, Outer Rear View, Lh
[09.1997 -] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),WHITE,K60 ,056 |
87940-42470-A0 |
— | ||
|
87940
|
87940
87940-42470-A1
Mirror Assy, Outer Rear View, Lh
[08.1998 - 07.1999] SXA11,16 L PACKAGE,WHITE PM,K18 |
87940-42470-A1 |
— | ||
|
87940
|
87940
87940-42470-B0
Mirror Assy, Outer Rear View, Lh
[09.1997 - 08.1998] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),SILVER ME,K61 ,199 |
87940-42470-B0 |
— | ||
|
87940
|
87940
87940-42470-B1
Mirror Assy, Outer Rear View, Lh
[08.1998 - 08.2000] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),SILVER GR.SF,1B9 ,K98 |
87940-42470-B1 |
— | ||
|
87940
|
87940
87940-42470-C0
Mirror Assy, Outer Rear View, Lh
[09.1997 -] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),BLACK,K62 ,202 |
87940-42470-C0 |
— | ||
|
87940
|
87940
87940-42470-D0
Mirror Assy, Outer Rear View, Lh
[09.1997 - 08.1998] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),WINE RED MC,3J8 ,K64 |
87940-42470-D0 |
— | ||
|
87940
|
87940
87940-42470-D1
Mirror Assy, Outer Rear View, Lh
[08.1998 - 08.2000] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),WINE RED MC,3M8 ,KA0 |
87940-42470-D1 |
— | ||
|
87940
|
87940
87940-42470-E0
Mirror Assy, Outer Rear View, Lh
[09.1997 -] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),LT.BROWN ME,K66 ,4J6 |
87940-42470-E0 |
— | ||
|
87940
|
87940
87940-42470-G0
Mirror Assy, Outer Rear View, Lh
[09.1997 -] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),DK.GREEN M.M.,K68 ,6P3 |
87940-42470-G0 |
— | ||
|
87940
|
87940
87940-42470-J0
Mirror Assy, Outer Rear View, Lh
[09.1997 - 08.1998] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),DK.BLUE MM.GR.,K70 ,8K5 |
87940-42470-J0 |
— | ||
|
87940
|
87940
87940-42470-J1
Mirror Assy, Outer Rear View, Lh
[08.1998 - 08.2000] SXA11,16 W(ELECTRIC REMOTE CONTROL MIRROR),BLUE M.M.,K71 ,8L5 |
87940-42470-J1 |
— | ||
|
9010506216
|
9010506216
90105-06216 New Genuine Part |
90105-06216 |
US $1.02 |
||
|
9014950067
|
9014950067
90149-50067 New Genuine Part |
90149-50067 |
US $1.46 |
||
|
9015450024
|
9015450024
90154-50024 New Genuine Part |
90154-50024 |
US $1.46 |
||
