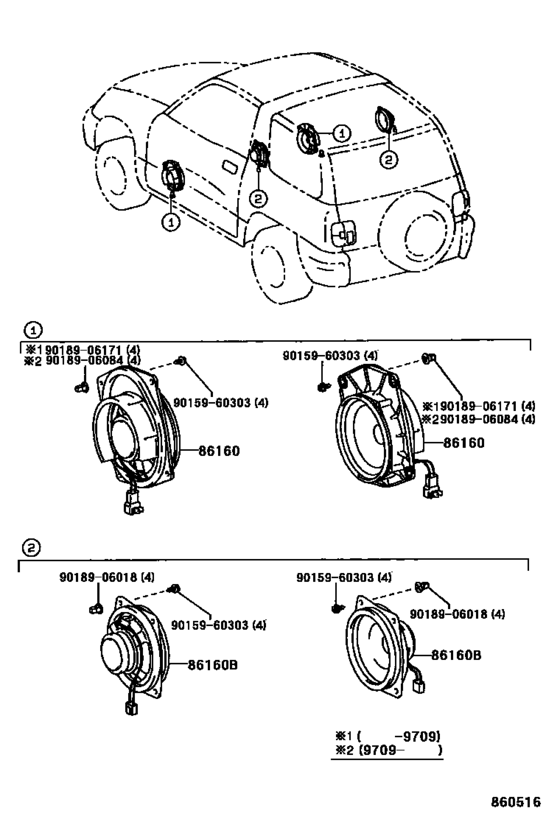

Speaker ([11.1995 - ] (9511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1995 - 2000
- Sales region
- Europe
- Frame
- SXA11
- body
- HT
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- RAV4
- From
- 11.1995
- To
- 08.2000
- No.of Doors
- 4D
- Vehicle Model
- RAV4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-42010 Speaker Assy, Front No.1[11.1995 -] SXA1# |
86160-42010 |
US $126.67 |
||
|
86160
|
86160
86160-42020 Speaker Assy, Front No.1[11.1995 -] SXA1# USA UP GRADE PACKAGE & W(RADIO) |
86160-42020 |
US $163.07 |
||
|
86160B
|
86160B
86160-42050 Speaker Assy, Rear[11.1995 -] SXA11,16 |
86160-42050 |
US $142.69 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9018906084
|
9018906084
90189-06084 NUT |
90189-06084 |
US $1.76 |
||
|
9018906171
|
9018906171
90189-06171 GROMMET SCREW |
90189-06171 |
US $1.76 |
