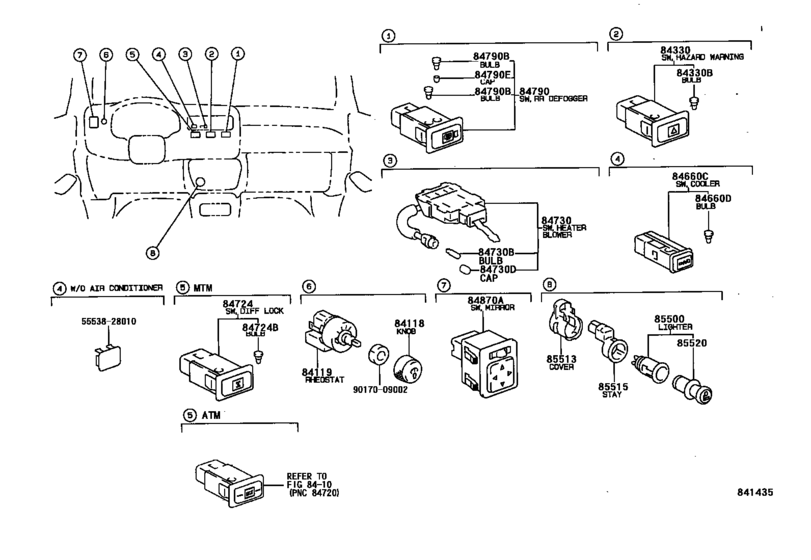

Switch & Relay & Computer ([11.1995 - ] INSTRUMENT SWITCH (9511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1995 - 2000
- Sales region
- Europe
- Frame
- SXA11
- body
- HT
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- RAV4
- From
- 11.1995
- To
- 08.2000
- No.of Doors
- 4D
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84118
|
84118
84118-20011-22
Knob, Light Control Rheostat
[11.1995 -] SXA1# BLACK,TRIM1# |
84118-20011-22 |
— | ||
| replacement | |||||
|
84118
|
84118
84118-20011 Knob, Light Control Rheostat[11.1995 -] SXA1# BLACK,TRIM1# |
84118-20011 |
US $13.80 |
||
|
84119
|
84119
84119-60020 Rheostat, Light ControlLIGHT CONTROL [11.1995 -] SXA1# |
84119-60020 |
US $123.76 |
||
| replacement | |||||
|
84119
|
84119
84119-60010
Rheostat, Light Control
[11.1995 -] SXA1# |
84119-60010 |
— | ||
|
84330
|
84330
84332-42010 Switch Assy, Hazard Warning Signal[11.1995 - 09.1997] SXA1# |
84332-42010 |
from US $62.79 |
||
|
84330
|
84330
84332-43010 Switch Assy, Hazard Warning Signal[09.1997 -] SXA1# |
84332-43010 |
US $36.11 |
||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[11.1995 - 09.1997] SXA1# 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84330B
|
84330B
84999-10860 Bulb, Hazard Warning Signal Switch[09.1997 -] SXA1# 14V 0.91W |
84999-10860 |
from US $4.32 |
||
|
84660C
|
84660C
84660-42010 Switch, Cooler[11.1995 - 08.1998] SXA1# |
84660-42010 |
US $68.87 |
||
| replacement | |||||
|
84660C
|
84660C
84660-42011 Switch, Cooler[11.1995 - 08.1998] SXA1# |
84660-42011 |
US $68.87 |
||
|
84660C
|
84660C
84660-42011 Switch, Cooler[08.1998 -] SXA1# |
84660-42011 |
US $68.87 |
||
|
84660D
|
84660D
88607-16010 Bulb(For Cooler Switch)[11.1995 -] SXA1# 14V 0.065A |
88607-16010 |
from US $2.80 |
||
|
84730
|
84730
84732-42020 Switch Assy, Heater BlowerHEATER BLOWER [11.1995 -] SXA1# |
84732-42020 |
US $144.18 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[11.1995 -] SXA1# 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
84730D
|
84730D
84998-10050 Cap, Satellite Switch[11.1995 -] SXA1# |
84998-10050 |
US $2.08 |
||
|
84790
|
84790
84790-42010 Switch Assy, Rear Window Defogger[11.1995 - 09.1997] SXA1# |
84790-42010 |
US $64.65 |
||
| replacement | |||||
|
84790
|
84790
84790-20330 Switch Assy, Rear Window Defogger[11.1995 - 09.1997] SXA1# |
84790-20330 |
US $57.08 |
||
|
84790
|
84790
84790-42020
Switch Assy, Rear Window Defogger
[09.1997 -] SXA1#..HT |
84790-42020 |
— | ||
|
84790
|
84790
84790-42030 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [09.1997 -] SXA16..ATM;SXA10,11,15..HT CANADA SPEC |
84790-42030 |
US $144.14 |
||
|
84790B
|
84790B
84999-10310 Bulb, Air Conditioner Control[09.1997 -] SXA1#..HT 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84790B
|
84790B
84999-10320 Bulb, Satellite Switch[11.1995 - 09.1997] SXA1# 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84790E
|
84790E
84998-10630
Cap, Bulb(For Rear Window Defogger Switch)
[11.1995 - 09.1997] SXA1# |
84998-10630 |
— | ||
|
84870A
|
84870A
84870-16020
Switch Assy, Outer Mirror
[09.1997 -] SXA1# |
84870-16020 |
— | ||
| replacement | |||||
|
84870A
|
84870A
84870-22200 Switch Assy, Outer Mirror[09.1997 -] SXA1# |
84870-22200 |
US $86.31 |
||
|
84870A
|
84870A
84870-20050 Switch Assy, Outer Mirror[11.1995 - 09.1997] SXA1# |
84870-20050 |
US $93.24 |
||
| replacement | |||||
|
84870A
|
84870A
84870-20050-C0 Switch Assy, Outer Mirror[11.1995 - 09.1997] SXA1# |
84870-20050-C0 |
US $93.24 |
||
|
85500
|
85500
85500-28050 Lighter Assy, Cigarette[11.1995 -] SXA1# |
85500-28050 |
from US $29.11 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[11.1995 -] SXA1# |
85513-28010 |
from US $2.65 |
||
|
85515
|
85515
85515-30030 Stay, Cigarette Lighter Bezel[11.1995 -] SXA1# |
85515-30030 |
US $13.85 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[11.1995 -] SXA1# |
85520-28010 |
from US $17.90 |
||
|
5553828010
|
5553828010
55538-28010 Cover, Cooler Switch Hole |
55538-28010 |
US $2.91 |
||
|
9017009002
|
9017009002
90170-09002 Nut, Tunnel Mode Select Switch |
90170-09002 |
US $1.05 |
||
