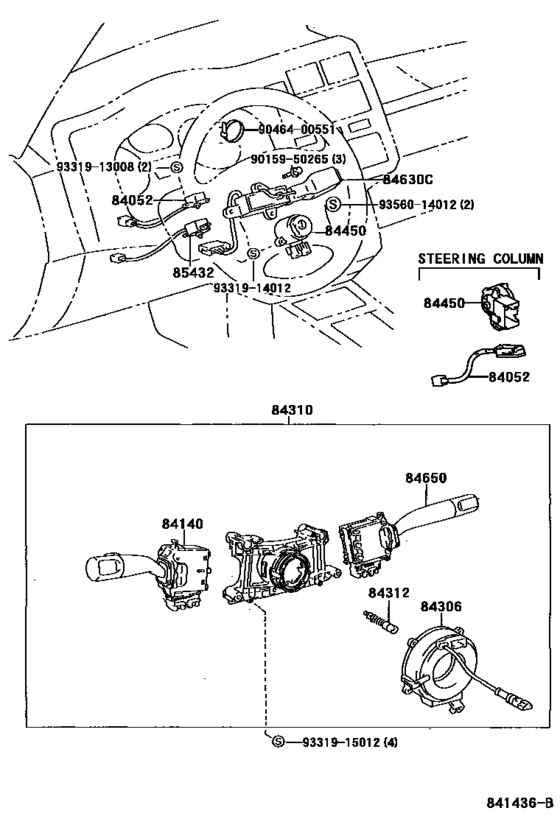

Switch & Relay & Computer ([11.1995 - ] IGNITION SWITCH, CONBINATION SWITCH (9511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1995 - 2000
- Sales region
- Europe
- Frame
- SXA11
- body
- HT
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- RAV4
- From
- 11.1995
- To
- 08.2000
- No.of Doors
- 4D
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-12060 Switch Assy, Un-Lock Warning[11.1995 - 09.1997] SXA1# |
84052-12060 |
US $17.92 |
||
|
84052
|
84052
84052-12070 Switch Assy, Un-Lock Warning[09.1997 -] SXA1# STEERING CORUMN |
84052-12070 |
US $16.42 |
||
|
84052
|
84052
84052-20050 Switch Assy, Un-Lock Warning[09.1997 -] SXA16..ATM;SXA10,11,15 INSTRUMENT PANEL |
84052-20050 |
US $37.56 |
||
| replacement | |||||
|
84052
|
84052
84052-41010 Switch Assy, Un-Lock Warning[09.1997 -] SXA16..ATM;SXA10,11,15 INSTRUMENT PANEL |
84052-41010 |
US $28.83 |
||
|
84140
|
84140
84140-26140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [11.1995 - 09.1997] SXA1# |
84140-26140 |
from US $54 |
||
|
84140
|
84140
84140-44010 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [09.1997 -] SXA1# |
84140-44010 |
US $107.74 |
||
|
84306
|
84306
84306-07010 Cable Sub-Assy, SpiralSPIRAL [11.1995 - 08.1996] SXA1# |
84306-07010 |
from US $275.98 |
||
|
84306
|
84306
84306-12070 Cable Sub-Assy, Spiral[09.1997 -] SXA1# |
84306-12070 |
from US $174.25 |
||
|
84306
|
84306
84306-35010 Cable Sub-Assy, Spiral[08.1996 - 03.1997] SXA1# |
84306-35010 |
US $281.01 |
||
| replacement | |||||
|
84306
|
84306
84306-35011 Cable Sub-Assy, Spiral[08.1996 - 03.1997] SXA1# |
84306-35011 |
US $291.78 |
||
|
84306
|
84306
84306-35011 Cable Sub-Assy, Spiral[03.1997 - 09.1997] SXA1# |
84306-35011 |
US $291.78 |
||
|
84310
|
84310
84310-42050 Switch Assy, Turn SignalTURN SIGNAL [11.1995 - 08.1996] SXA1# |
84310-42050 |
US $385.84 |
||
| replacements | |||||
|
84310
|
84310
84140-26140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [11.1995 - 08.1996] SXA1# |
84140-26140 |
from US $54 |
||
|
84310
|
84310
84306-30080 Cable Sub-Assy, Spiral[11.1995 - 08.1996] SXA1# |
84306-30080 |
US $192.19 |
||
|
84310
|
84310
84319-20040
Housing, Steering Wheel Switch
[11.1995 - 08.1996] SXA1# |
84319-20040 |
— | ||
|
84310
|
84310
84652-26530 Switch Assy, Windshield WiperWINDSHIELD WIPER [11.1995 - 08.1996] SXA1# |
84652-26530 |
US $126.67 |
||
|
84310
|
84310
84310-42051 Switch Assy, Turn SignalTURN SIGNAL [08.1996 - 09.1997] SXA1# |
84310-42051 |
US $380.02 |
||
|
84310
|
84310
84310-42170 Switch Assy, Turn SignalTURN SIGNAL [09.1997 -] SXA16..ATM;SXA10,11,15..HT W(TILT STEERING) |
84310-42170 |
US $381.47 |
||
| replacement | |||||
|
84310
|
84310
84310-3D020 Switch Assy, Turn SignalTURN SIGNAL [09.1997 -] SXA16..ATM;SXA10,11,15..HT W(TILT STEERING) |
84310-3D020 |
US $404.77 |
||
|
84310
|
84310
84310-42200 Switch Assy, Turn SignalTURN SIGNAL [09.1997 -] SXA1#..HT |
84310-42200 |
US $512.51 |
||
| replacements | |||||
|
84310
|
84310
84140-26140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [09.1997 -] SXA1#..HT |
84140-26140 |
from US $54 |
||
|
84310
|
84310
84306-12070 Cable Sub-Assy, Spiral[09.1997 -] SXA1#..HT |
84306-12070 |
from US $174.25 |
||
|
84310
|
84310
84319-42010 Housing, Steering Wheel Switch[09.1997 -] SXA1#..HT |
84319-42010 |
US $38.15 |
||
|
84310
|
84310
84652-1A760
Switch Assy, Windshield Wiper
[09.1997 -] SXA1#..HT |
84652-1A760 |
— | ||
|
84312
|
84312
84312-26010 Plate, Horn Contact[11.1995 - 09.1997] SXA1# |
84312-26010 |
from US $8.52 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[09.1997 -] SXA1# STEERING CORUMN |
84450-12200 |
from US $49.25 |
||
|
84450
|
84450
84450-41010 Switch Assy, Ignition Or Starter[11.1995 - 09.1997] SXA1# |
84450-41010 |
US $76.96 |
||
|
84630C
|
84630C
84630-33020 Switch Assy, Cruise Control Main[11.1995 - 09.1997] SXA1# |
84630-33020 |
US $145.60 |
||
| replacement | |||||
|
84630C
|
84630C
84630-26011
Switch Assy, Cruise Control Main
[11.1995 - 09.1997] SXA1# |
84630-26011 |
— | ||
|
84630C
|
84630C
84630-42010 Switch Assy, Cruise Control MainSPEED CONTROL MAIN [09.1997 -] SXA1# |
84630-42010 |
US $144.14 |
||
| replacement | |||||
|
84630C
|
84630C
84630-42011
Switch Assy, Cruise Control Main
[09.1997 -] SXA1# |
84630-42011 |
— | ||
|
84650
|
84650
84652-42050
Switch Assy, Windshield Wiper
[11.1995 - 09.1997] SXA1# |
84652-42050 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-35522 Switch Assy, Windshield WiperWINDSHIELD WIPER [11.1995 - 09.1997] SXA1# |
84652-35522 |
from US $110.07 |
||
|
84650
|
84650
84652-42080 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.1997 -] SXA1#..HT |
84652-42080 |
US $126.67 |
||
| replacement | |||||
|
84650
|
84650
84652-1A760
Switch Assy, Windshield Wiper
[09.1997 -] SXA1#..HT |
84652-1A760 |
— | ||
|
85432
|
85432
85432-12020
Solenoid, Key Inter Lock
[09.1997 -] SXA1#..ATM W(TILT STEERING) |
85432-12020 |
— | ||
| replacement | |||||
|
85432
|
85432
85432-47010 Solenoid, Key Inter LockKEY INTER LOCK [09.1997 -] SXA1#..ATM W(TILT STEERING) |
85432-47010 |
US $62.38 |
||
|
85432
|
85432
85432-42011 Solenoid, Key Inter Lock[11.1995 - 02.1996] SXA11..ATM |
85432-42011 |
US $63.77 |
||
| replacement | |||||
|
85432
|
85432
85432-42012 Solenoid, Key Inter Lock[11.1995 - 02.1996] SXA11..ATM |
85432-42012 |
US $64.06 |
||
|
85432
|
85432
85432-42012 Solenoid, Key Inter Lock[02.1996 -] SXA1#..ATM |
85432-42012 |
US $64.06 |
||
|
9015950265
|
9015950265
90159-50265 New Genuine Part |
90159-50265 |
US $1.12 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
|
9356014012
|
9356014012
93560-14012 SCREW |
93560-14012 |
US $1.12 |
||
